Heyer Modular+ - Fig. 17 Patient Module, Top View

Preventive Maintenance
58
11
10
12
13
14
15
16
expiratory
diaphragm
valve
bellows control
diaphragm
valve
decoupling
diaphragm
valve

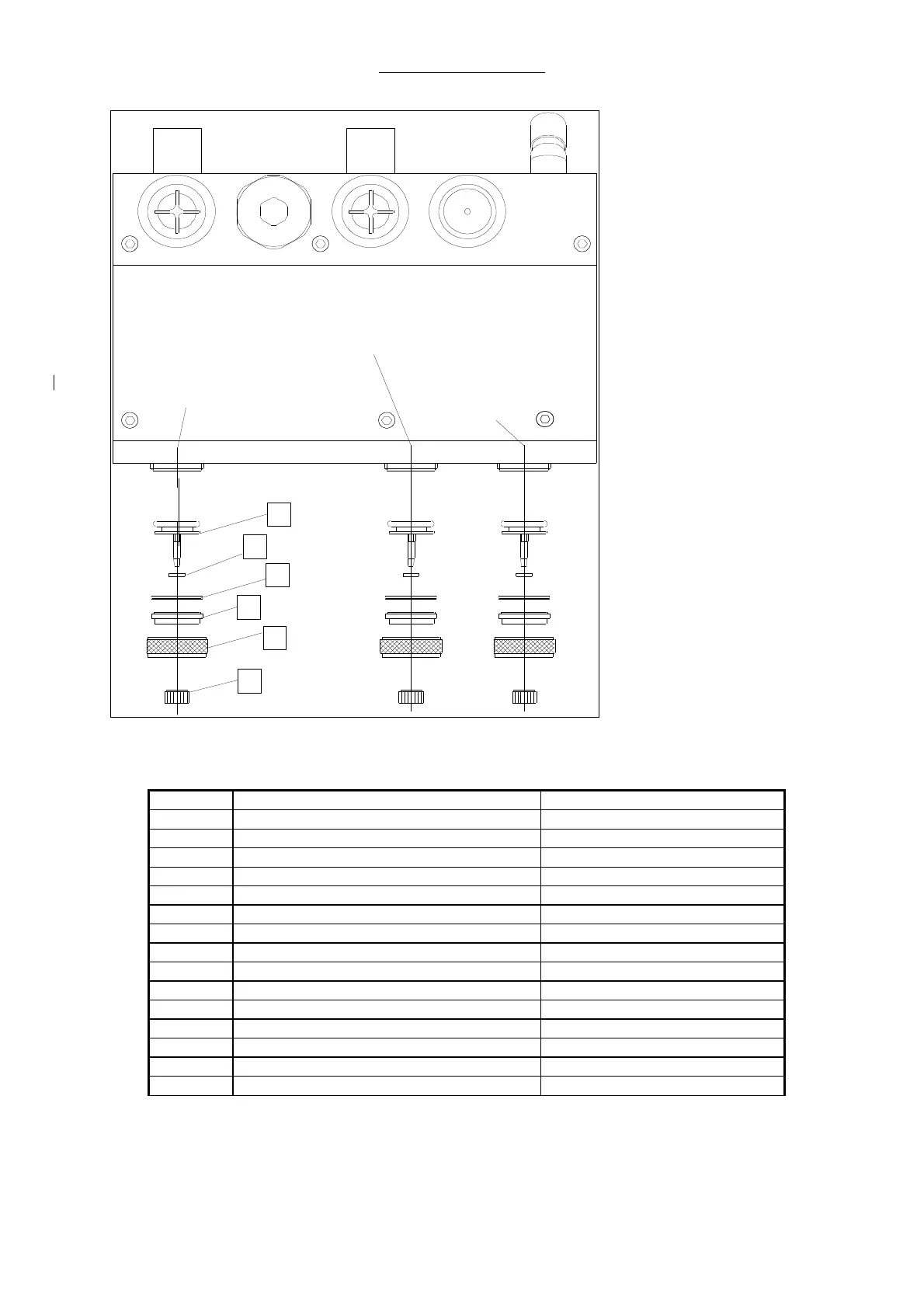

Fig. 17 Patient module, top view (diaphragm version)
Pos. No. Description Order No.
1 Airway pressure relief valve, cpl. 323-0095
2 Emergency air valve, cpl. 323-0098
3 Inspiratory valve, cpl. 323-0096
4 Expiratory valve, cpl. 323-0097
5 Heat blanket, cpl 323-0314
6 Flow sensor, cpl. 323-0220
7 Ventilation Bellow 323-0158
8 Absorber vessel 323-0046
9 Bellow dome 323-0045
10 Fixing nut diaphragm valve 323-0294
11 Bessel diaphragm valve 323-0110
12 Ring plate diaphragm valve 323-0042
13 O-ring 28.3x1.78 323-0292
14 Gasket 13x6.5x2 980-1170
15 Diaphragm valve body 323-0100
