Heyer Modular+ - Functional Representations of the Patient Module

Repair Information
31
2.15.3 Functional representations of the patient module
V
P
V
2
41
gas-
monitoring
3
5
6
7
8
9
10
11
12
13
14
15
18
17
16
19

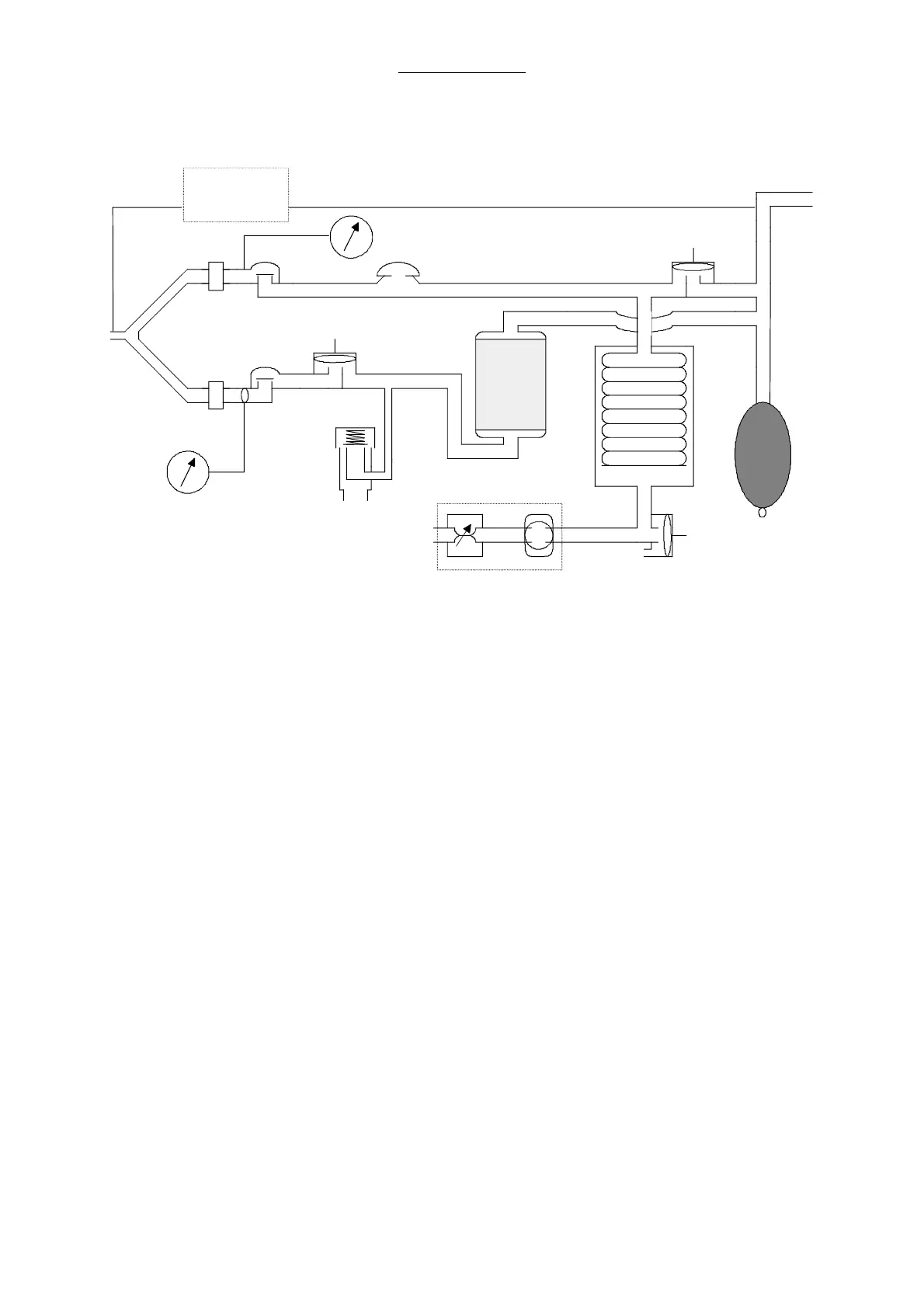

Fig. 9 Survey of the patient module
Pos. Description
1 Patient's y-piece
2 Side stream gas monitor
3 Inspiratory bacterial filter
4 Expiratory bacterial filter
5 Airway pressure monitor connection
6 Inspiratory valve (passive)
7 Expiratory valve (passive)
8 Spirometry sensor
9 Airway pressure limiting valve (APL)
10 Waste gas outlet
11 Expiratory valve
12 Room air valve, emergency air valve
13 Ventilator control pneumatic
14 CO
2
absorber
15 Bellows
16 Decoupling valve
17 Bellows dome
18 Bellows valve
19 Reservoir / manual ventilation bag
