H E Y E R P a s i t h e c
Rev. 0.2 Draft – 12/09 HEYER Pasithec, Operator’s manual 17 / 106
3.2 Breathing System
CAUTION: The breathing system used together with the anesthetic gas supply system
shall be in accordance with ISO 8835-2.

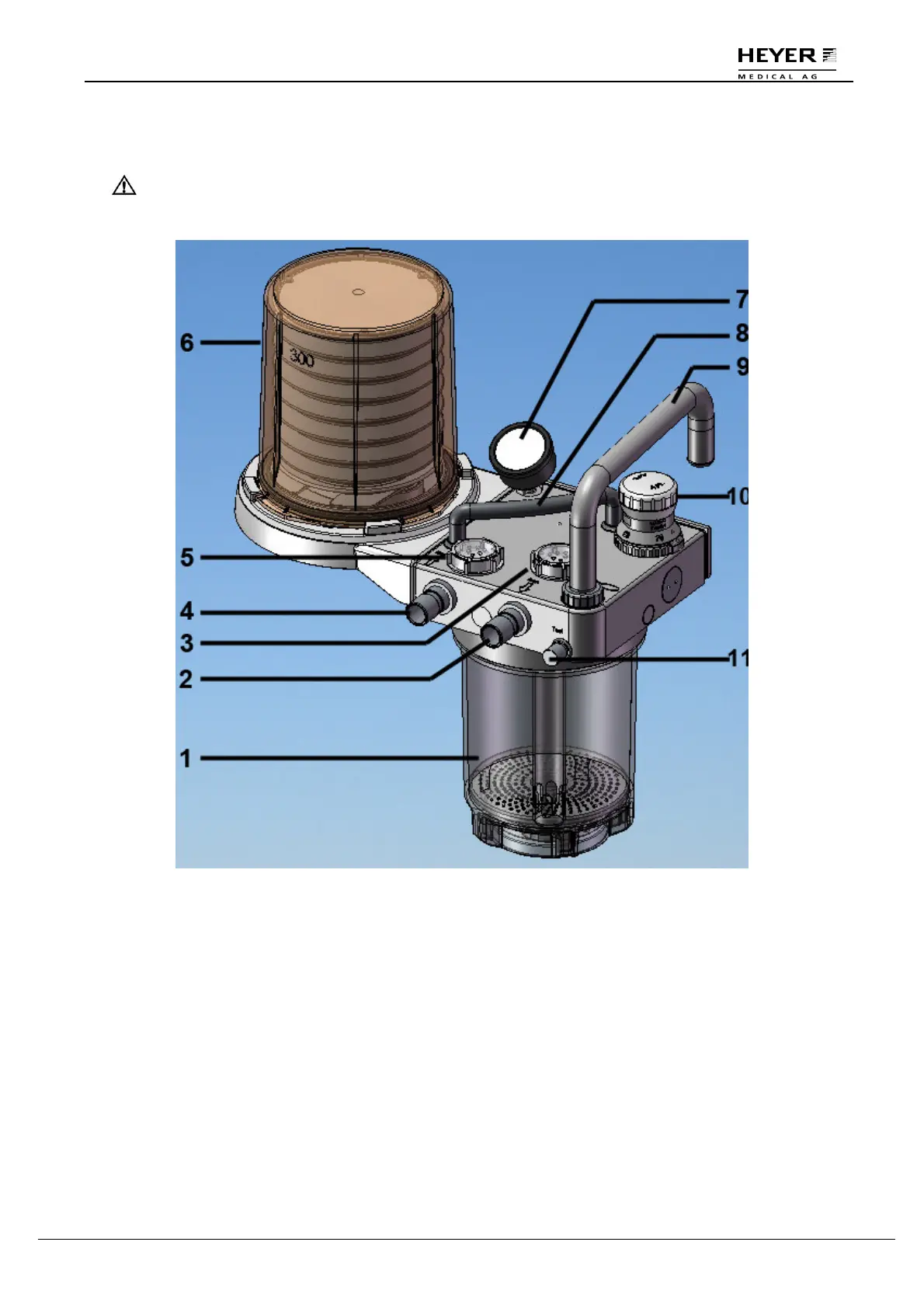

Figure 3-4 Breathing System
Legend:
1 Absorber Canister 2 Inspiratory Port
3 Inspiratory Valve 4 Expiratory Port
5 Expiratory Valve 6 Bellows
7 Airway Pressure Gauge 8 Handle
9 Bag Arm 10 APL valve
11 Test Block
