4.1.2 Manual Leak Test
The Leak Test includes verification of APL valve and Flowmeter. Click “Continue” to begin the leak
test. See Figure 4-4 below.

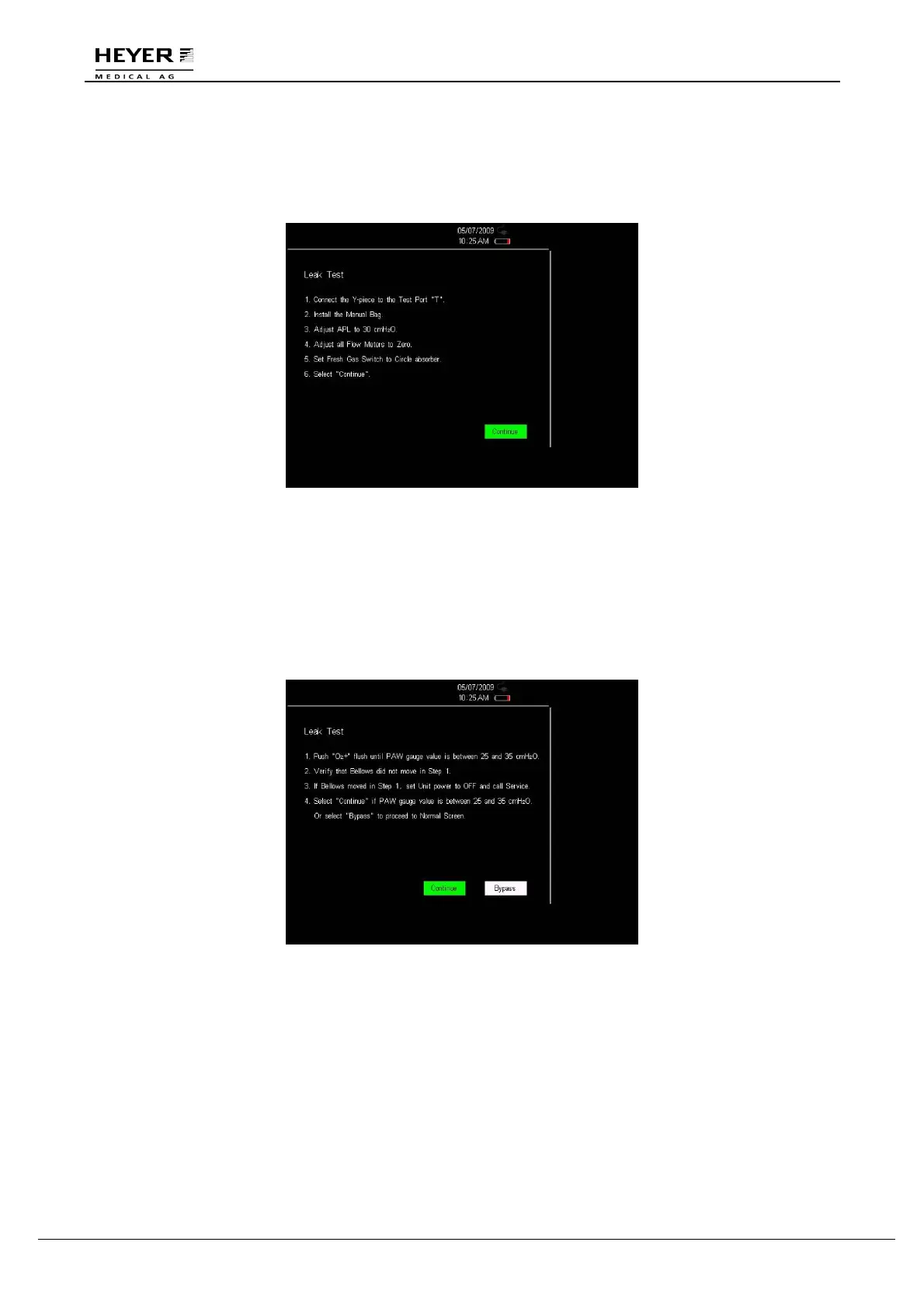

Figure 4-4 Setup before Manual Leak Test
Perform the following according to the prompts in the above figure:
1. Connect the Y-piece to Test Port “T”.
2. Install the Manual Bag.
3. Adjust APL valve to 30 cmH
2
O.
4. Adjust all flowmeters to zero.
5. Set Fresh Gas switch to Circle absorber.
6. Select “Continue”.
Figure 4-5 Manual Leak Test
Perform the manual leak test according to the instructions pictured in Figure 4-5:
1. Push O
2
flush button until Paw gauge value is between 25 cmH
2
O and 35 cmH
2
O.
2. Verify that bellows did not move while performing step 1.
3. If bellows moved during step 1, turn off Power Supply and contact manufacturer.
4. Select “Continue” if Paw gauge index is between 25 cmH
2
O and 35 cmH
2
O.
