H E Y E R P a s i t h e c
Rev. 0.2 Draft – 12/09 HEYER Pasithec, Operator’s manual 79 / 106
8.7 The IRMA Probe
The IRMA probe is intended for monitoring CO
2.
It has two airway adapters, one for an adult and one
for a child.
Never sterilize or immerse the IRMA airway adapters in liquid. They can be cleaned using a cloth
moistened with ethanol or isopropyl alcohol. Replace every two weeks.

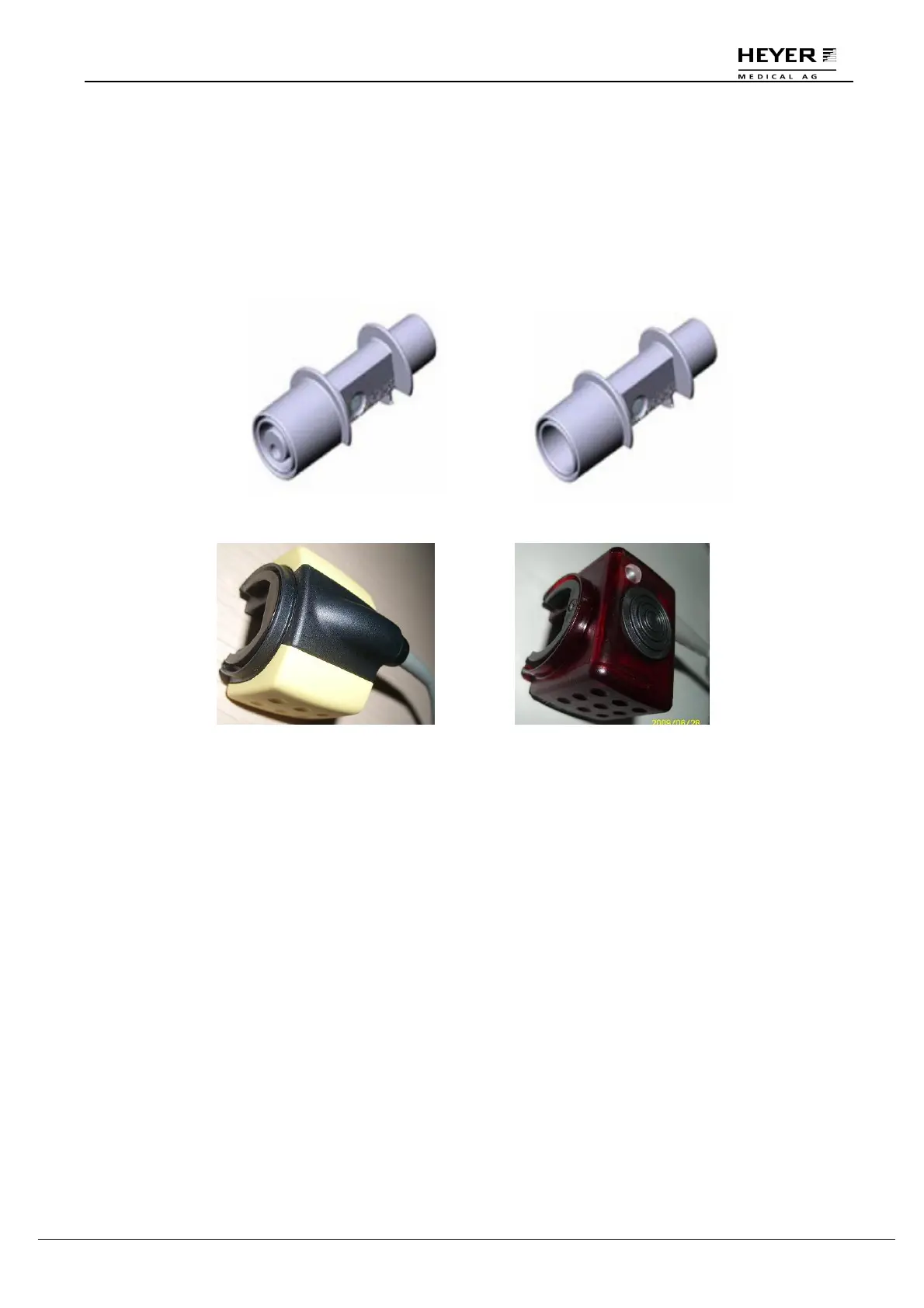

Figure7-1：IRMA child adapter Figure 7-2：IRMA adult adapter
Figure 7-3：IRMA CO
2
gas module Figure 7-4：IRMA AX+gas module
