6.1.2 Disassembling Absorber
The absorber is reusable. Follow the disassembling procedures:

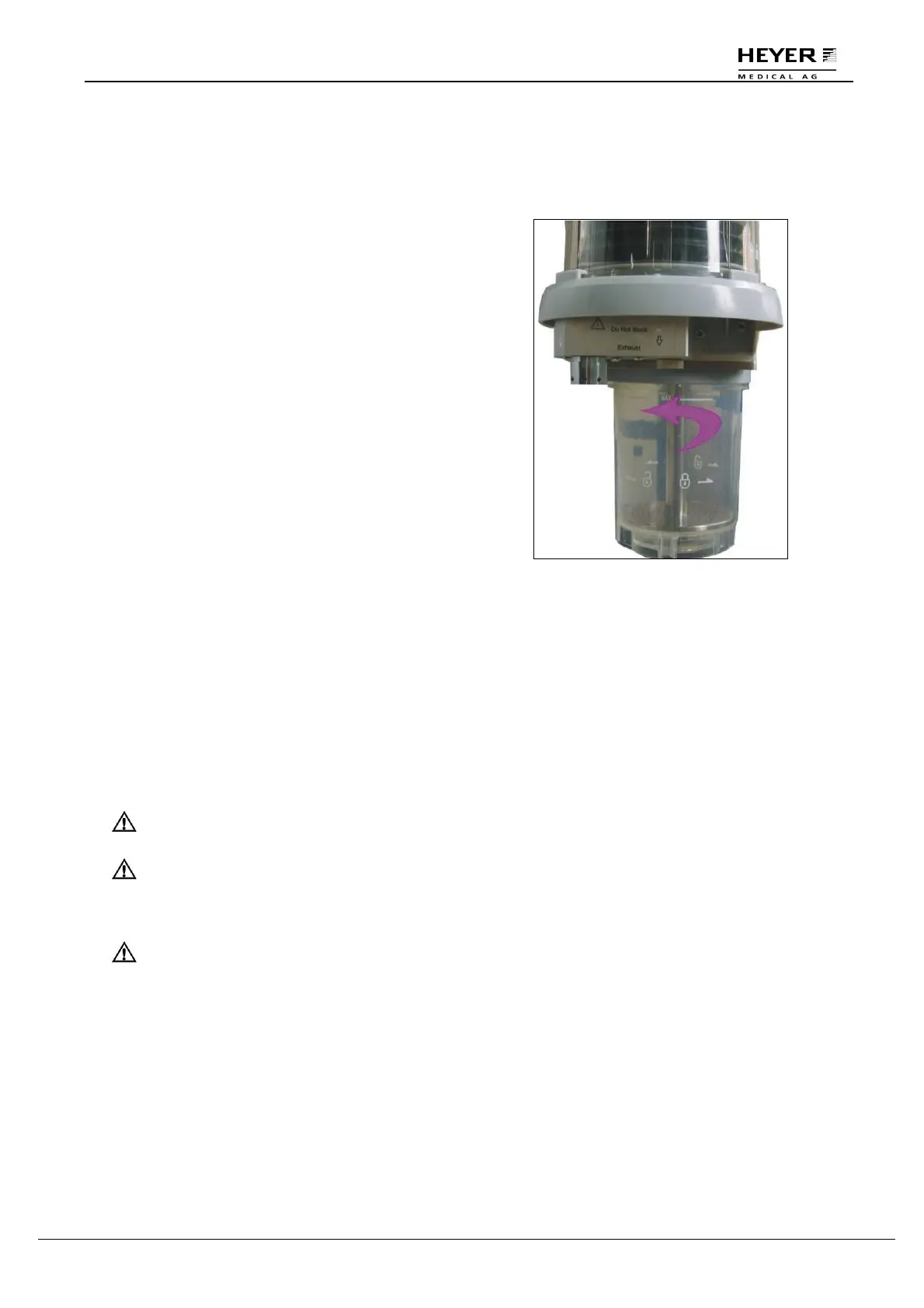

1 Turn the absorber clockwise and then disconnect
it according to directions on the absorber. Turn
the absorber counter-clockwise to re-install.
6.1.3 Filling Absorbent
1. Remove the absorbent from the absorber.
2. Clean and sterilize according to section 7.3.1.1.
3. Fill the absorber with fresh absorbent once the canister is dry. Wipe soda lime off the edge of
the absorber, and then re-install it. Ensure the canister is airtight and that there is no leakage
or spillage.
6.2 Connecting Tubes and Lines
CAUTION: CO
2
monitor (in accordance with ISO 9918) should be connected at Y-
piece of patient end.
CAUTION: Anesthetic machine should be used with anesthetic agent monitor.
Anesthetic agent monitor (e.g. Datex-ohmeda S/5 Anesthetic gas monitor)
should be used in accordance with ISO 21647:2004 and should be
connected at the Y-piece installed at the inspiratory port.
CAUTION: O
2
sensor should be connected at inspiratory port of anesthetic absorber
circle.
Step 1: Connect breathing tube.
Connect the two tubes on the inspiratory and expiratory ports, respectively. Connect the Y-piece to the
patient end.
Step 2: Connect reservoir bag.
Connect the reservoir bag onto the bag arm port of the breathing system.
Step 3: Connect oxygen sensor.
Connect the oxygen sensor between the inspiratory port of the breathing system and patient system.
Turn and insert the oxygen sensor vertically in the connector.
