7.3.1 Disassembling Absorber Circle

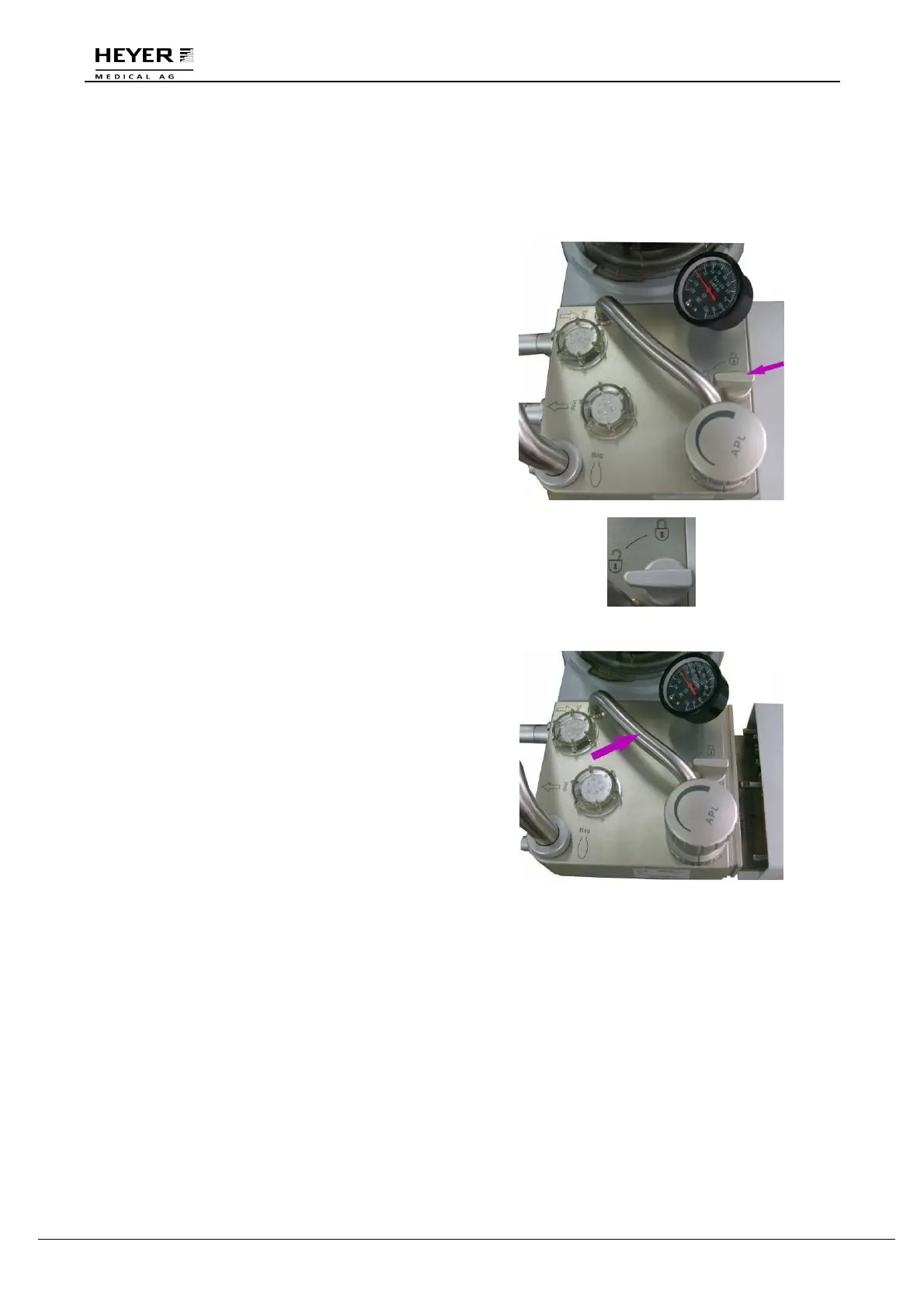

Step 1
Lock the castors of the machine to prevent movement.
Step 2
Turn the handle (arrow pointed) of absorb circle 90°
counter-clockwise from closed state.
Step 3
Hold the handle (see arrow) of absorb circle with
two hands and then pull it out horizontally from the
supplying board of absorb circle.
The red part of the supplying board is a heater. Do
not touch it!
