H E Y E R P a s i t h e c
Rev. 0.2 Draft – 12/09 HEYER Pasithec, Operator’s manual 99 / 106
10.10.3 System Assembly Instruction

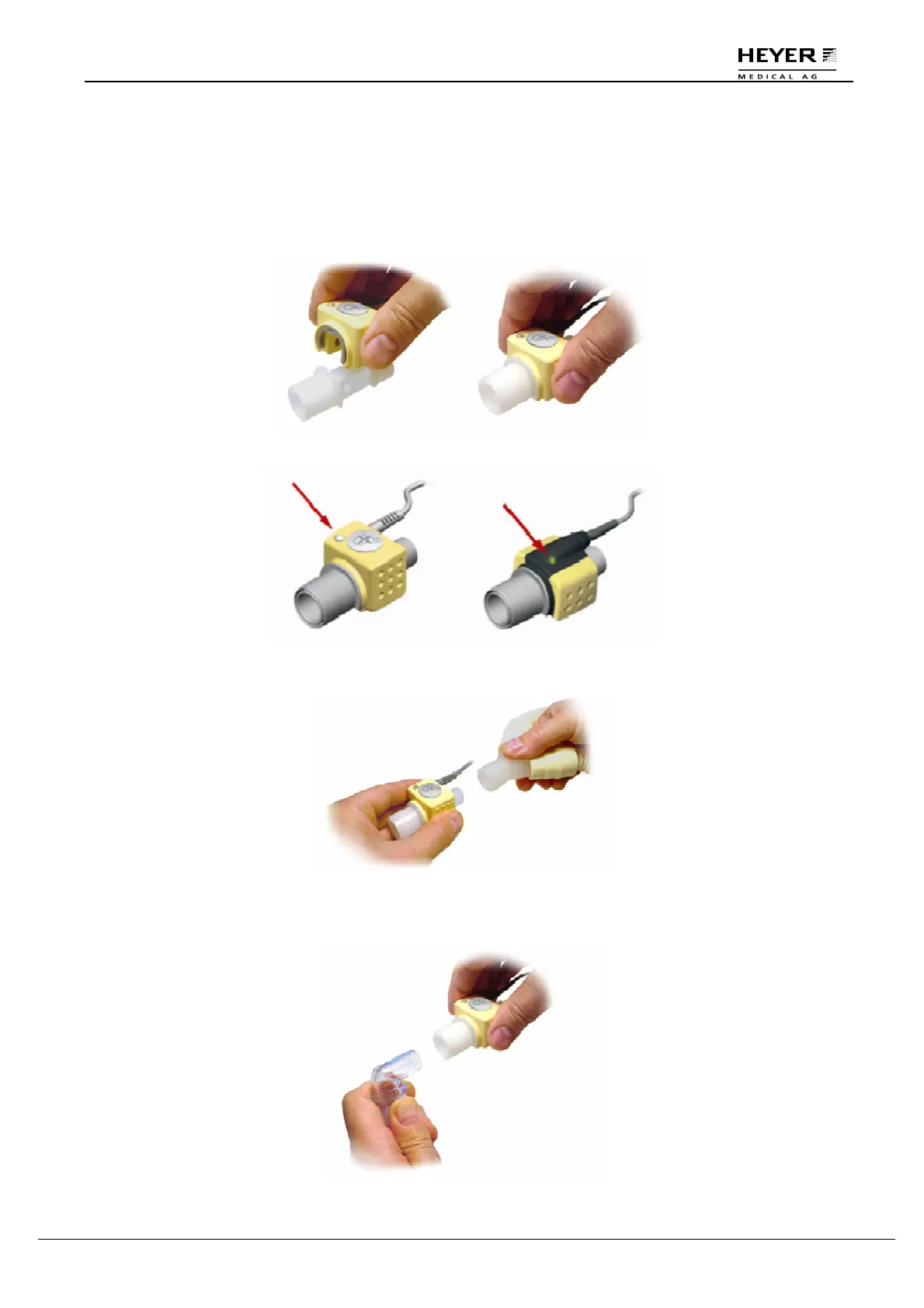

10.10.3.1 Set-up
1. Connect the IRMA connector (RS-232 serial interface) with the COM-A below the UI.
2. Snap the IRMA sensor head on top of the IRMA airway adapter; it will click into place when
properly seated.
3. A green LED indicates that the IRMA probe is ready for use.
4. Connect IRMA/airway adapter 15mm male connector to the breathing circuit Y-piece.
5. Connect IRMA/airway adapter 15mm female connector to the patient’s endotracheal tube.
