18 / 106 HEYER Pasithec, Operator’s manual Rev. 0.2 Draft - 12/09
3.2.1 Bellows Assembly Ports

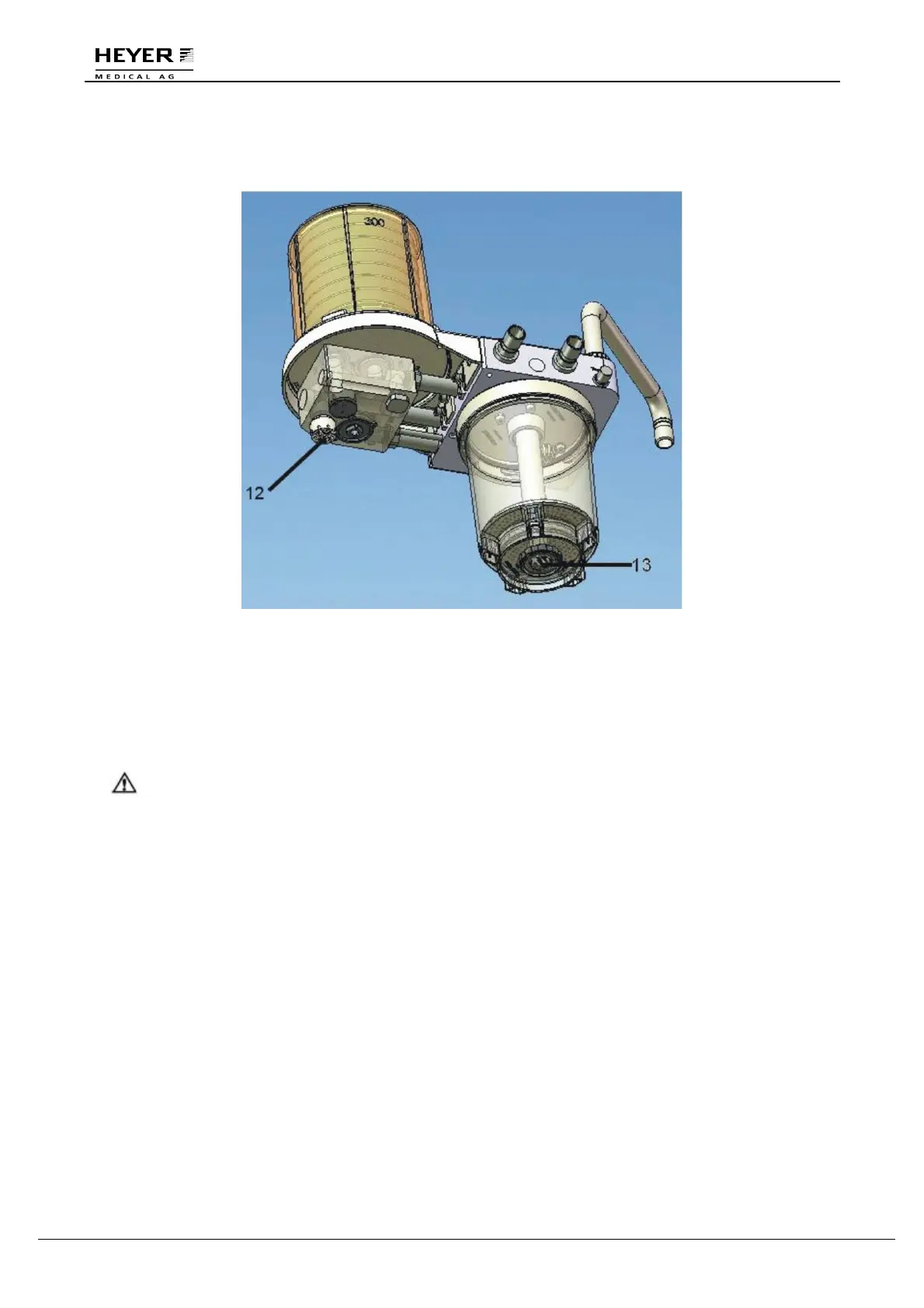

Figure 3-5 Ports of bellows assembly
12 Exhaust Gas Port
13 Nut (drain plug): Loosen the nut to drain the water when absorbent (natrium lime)
in absorber has been commixed with water.
WARNING: Never connect exhaust gas port with sub-atmospheric system directly, as it
results breathing system leakage.
Do not block exhaust gas port.
