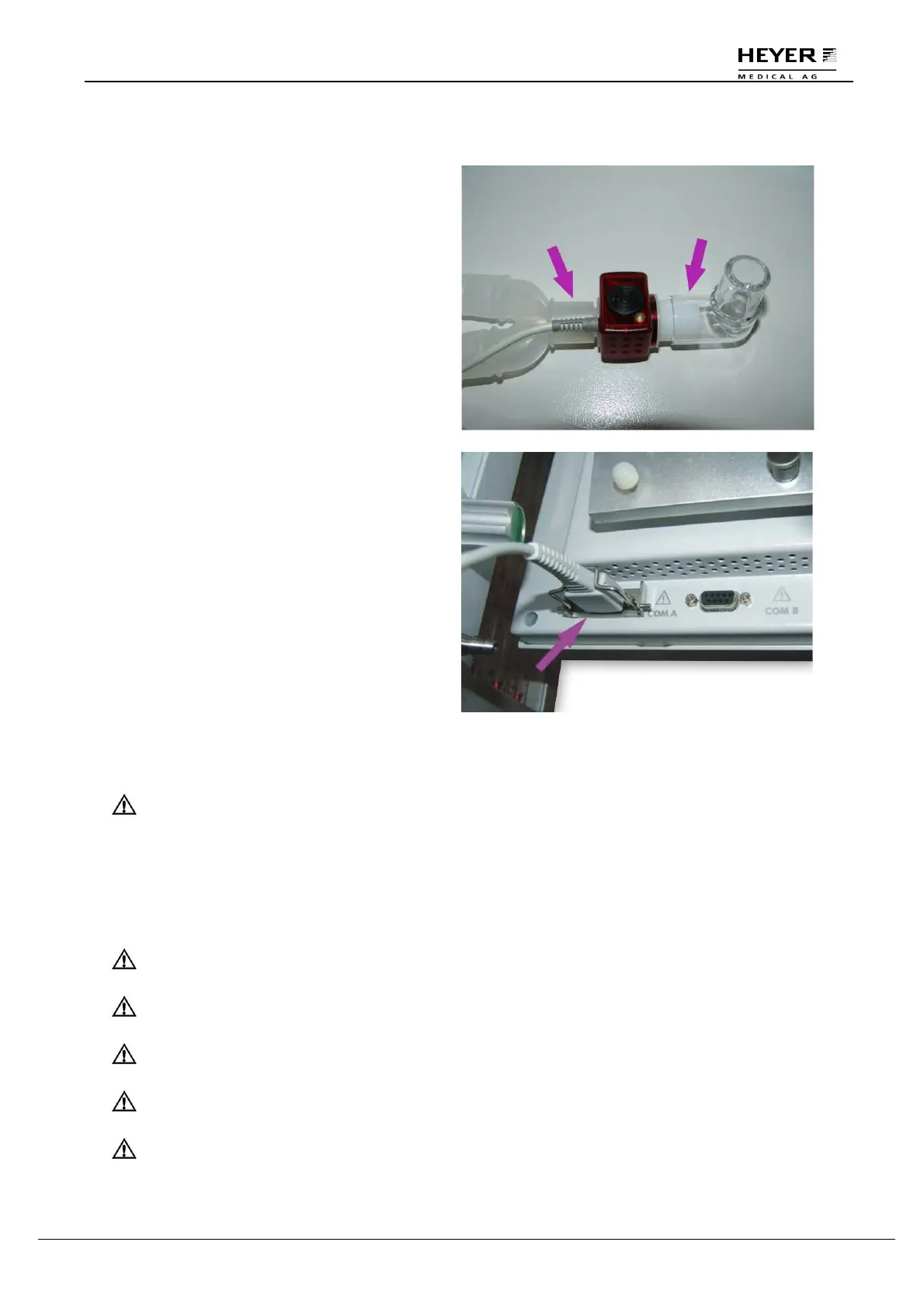

6.2.2 Connect Anesthetic Agent Monitor
Step 1
Connect one end of the anesthetic agent
monitor to the Y-piece of the patient end and the
other end to reservoir bag.
Step 2
Plug the data connecter into the COM-A port of
the back of ventilator.
6.3 Connecting Gas and Electricity
WARNING: IEC 60601-1-1 applies to combining medical electrical equipment and for
combinations of at least one item of medical electrical equipment with one
or more items of non-medical electrical equipment. Even if there is no
functional connection between the individual pieces of equipment, when
they are connected to an auxiliary main socket outlet, they constitute a
medical electrical system. It is essential that operators are aware of the
risks of increased leakage currents when equipment is connected to an
auxiliary main socket outlet.
WARNING: The equipment connected to the power outlet will increase electric current
leakage. Test electric current leakage regularly.
WARNING: A malfunction of the central gas supply system may cause one or more
devices connected to it to shut down simultaneously.
CAUTION: Disconnect the anesthetic workstation from the gas supply after use to
prevent contamination or pollution of the pipeline system.
CAUTION: Only the medical gas supply should be used. Other types of gas supply
may contain water, oil or other pollutants.
WARNING: Note that all gas supply connectors have different dimensions and
structures.
