H E Y E R P a s i t h e c

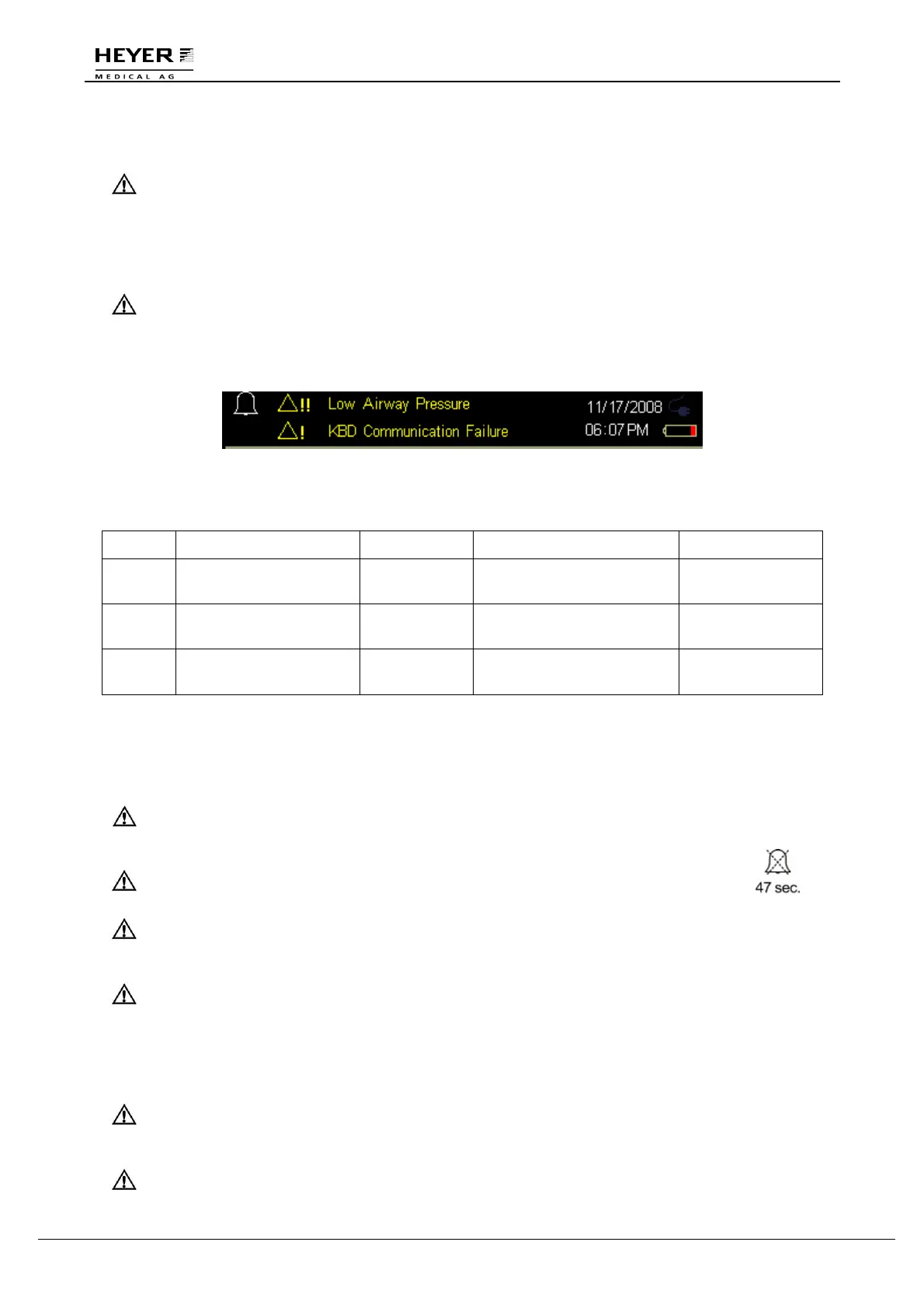

80 / 106 HEYER Pasithec, Operator’s manual Rev. 0.2 Draft - 12/09
9 Alarm and Troubleshooting
WARNING: No repair should ever be undertaken or attempted by anyone without
proper qualifications and equipment.
9.1 About Alarm
CAUTION: If alarm occurs, ensure the patient safe before attempting to diagnose
the problem.
Alarm messages display on the top of the screen.
Figure 9-1 Alarm message area
The high priority alarms must be attended to immediately.
Priority Volume Silence Prompt Alarm bell
High 5 tones, 2 hurry;
Every 8 seconds
110 seconds Red background, 3 “!”
Display frequency: 2Hz
Red, flickering
Medium 3 tones
Every 10 seconds
110 seconds Yellow background, 2 “!”
Display frequency: 0.5Hz
Yellow, flickering
Low 2 tones
Non-repeat
---- Yellow background, 1 “!”
Display until alarm stops.
Yellow
When two or more alarms with equal priority are generated at the same time, the signals will be
displayed in turn.
The operator can hear the alarm sound or distinguish the priority of alarm from at least 4 meters. The
alarm message is visible from more than 1 meter away.
CAUTION: There are two alarm display areas, and the array of alarms is accorded
priority from high to low.
CAUTION: When the alarm is silenced, the alarm bell has dashed “X” on it.
CAUTION: A potential hazard can exist if different alarm presets are used for the
same or similar equipment in any single area.
CAUTION: The auditory alarm signal sound pressure range is between 62dB and
75d (measured from a distance of 1 meter).
9.2 Alarm Message List
CAUTION: Patient safety comes first during an operation. Repair the problem once
the operation is finished.
CAUTION: Operation instruction is not included in the alarm message list.
