7.3.1.6 Installing Absorber Circle

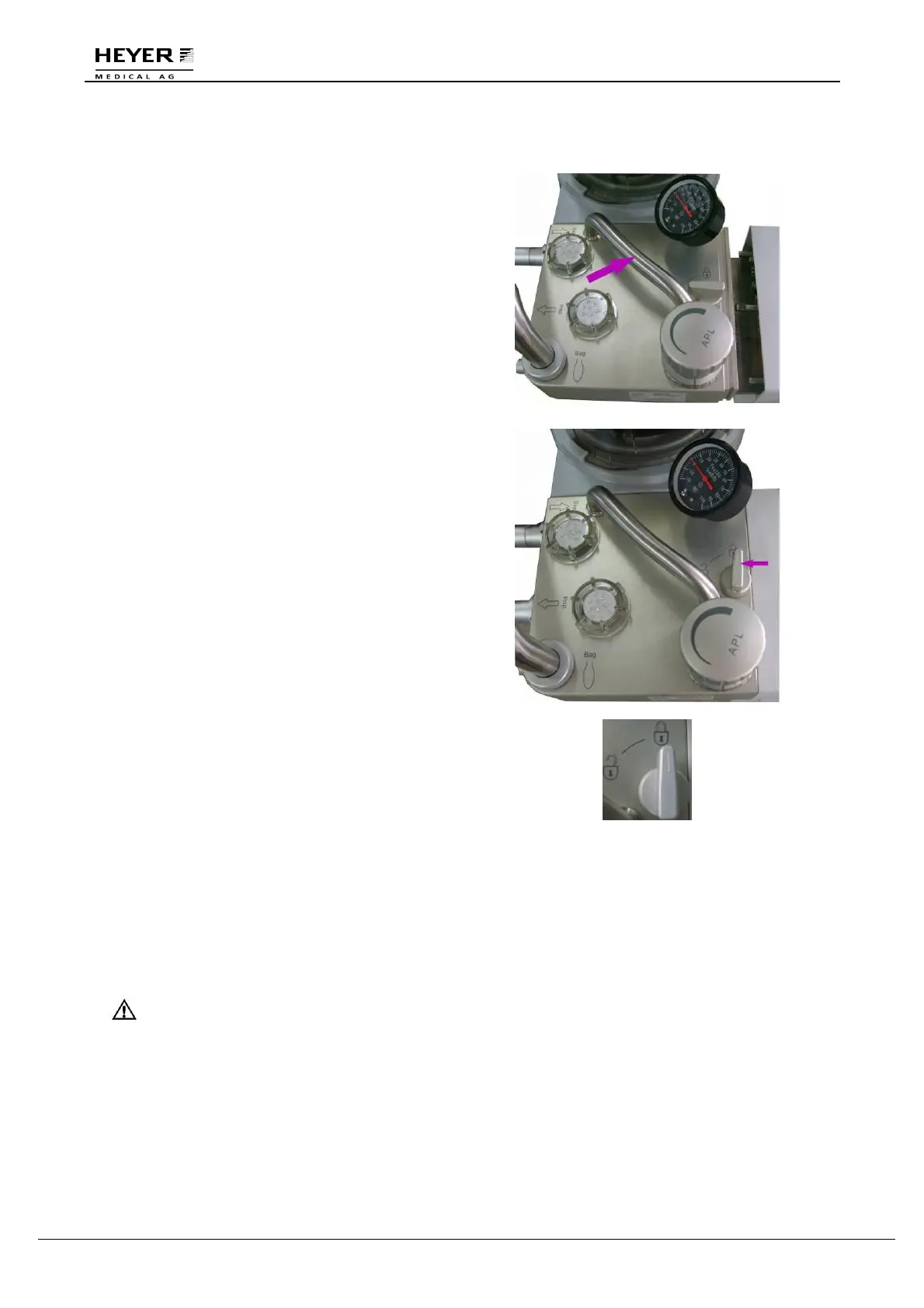

When installing, pull the supply board of the
absorber circle as far as it will go. Hold the handle
(see arrow) of absorb circle with two hands and
insert it in the supply board. Push the supply board
and absorber circle together to ensure a tight seal
with seat module.
Turn the handle (see arrow) of absorber circle 90°
clockwise from open to lock the circle.
7.3.2 Bellows Assembly
This section covers disassembling, assembling, cleaning and sterilizing the bellows assembly. Read
all parts of this section before disassembling, assembling, cleaning and sterilizing to avoid equipment
damage and/or patient injury.
CAUTION: Only the folding gasbag is made of latex.
