Rev. 0.2 Draft – 12/09 HEYER Pasithec, Operator’s manual 43 / 106
3 ．
．．
． CO
2

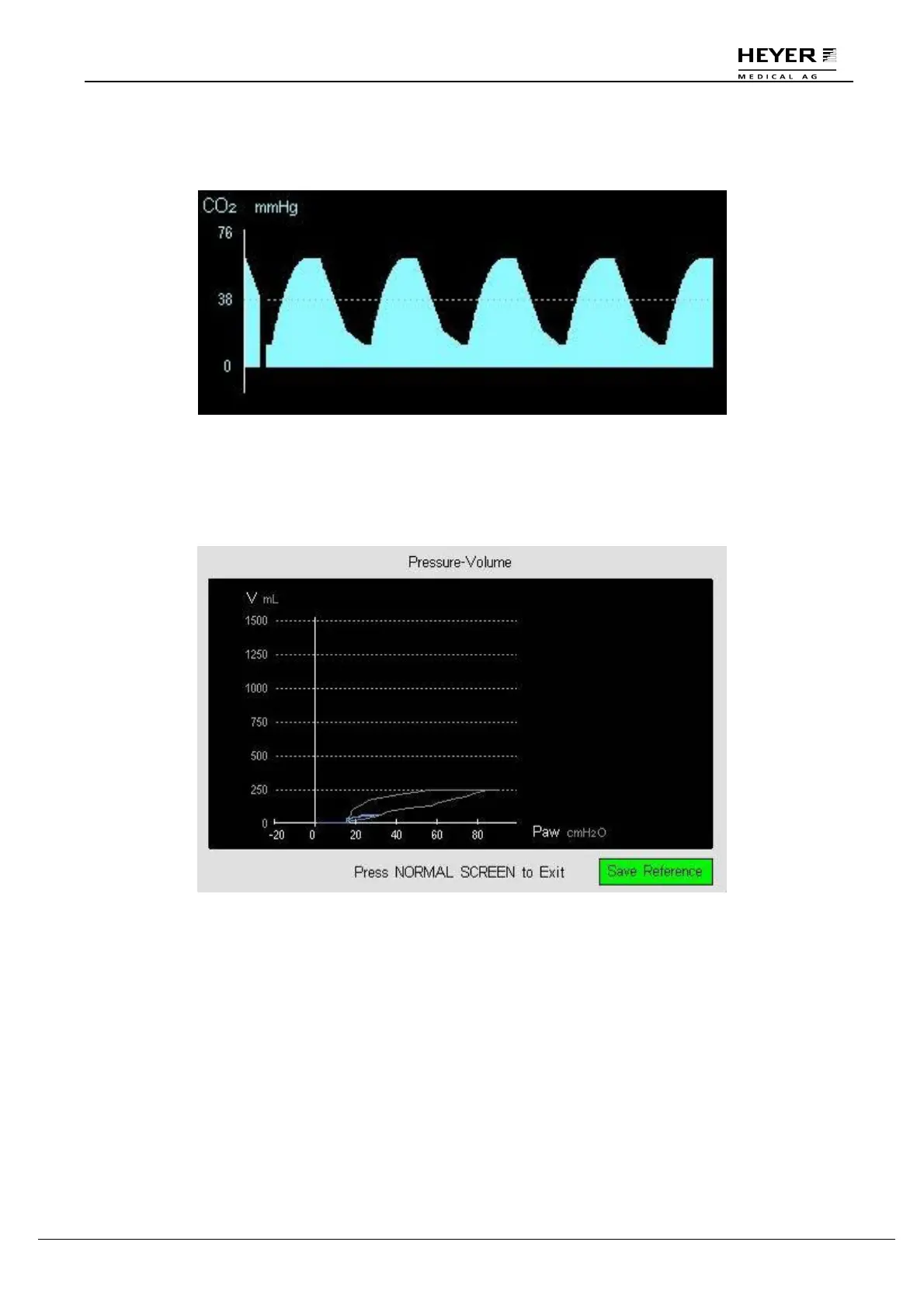

- t Waveform
Y-Axis: CO
2
; X-Axis: time.
Figure 4-17 CO
2
- t waveform
4. Pressure-Volume Loop
Y-Axis: tidal volume; X-Axis: pressure.
Figure 4-18 Pressure-Volume Loop
