DS-7600 Series NVR User’s Manual
69

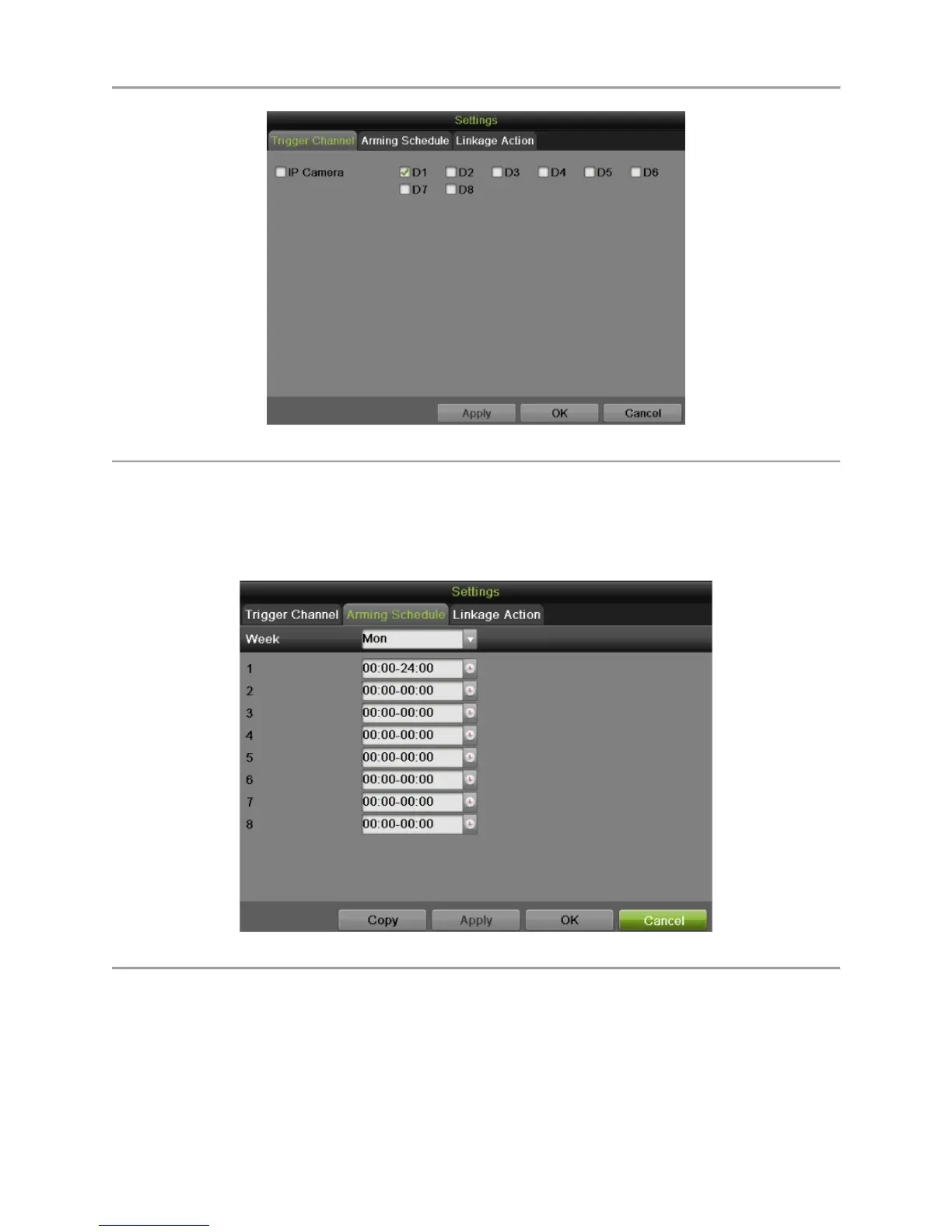

Figure 64 Trigger Channel Settings Menu
1) Select the Trigger Channel tab and check the checkbox of channels which you want the
motion detection event to trigger recording. Click Apply to save the setting.
2) Select the Arming Schedule tab, as shown in Figure 65. Choose one day in a week and set an
arming schedule. If the schedule can also be applied to other days, click Copy. Click the
Apply button to save the settings.
Figure 65 Arming Schedule Settings Menu
3) Select the Linkage Action tab, as shown in Figure 66.
