7.3 Waveform Calculations
149
3
Chapter 7 Numerical Calculations/Waveform Calculations
7
Coefficient a x [CH A] (×, ÷, +, or -) coefficient b × [CH B] + coefficient c
(CH A and CH B may be any input channels' measurement data, selectable from CH1-1 to 4-15,
P1 to P8, or waveform calculation result channels W1 to W29 ((reused as inputs, as long as the
channel number is smaller than number of the final calculation result channel)). For example, to
obtain results on W3, [CHA] and [CHB] can be set to W1 and W2, respectively.)
The above formula is set up beforehand, calculation result waveforms are displayed on
the Waveform screen while measuring, and calculated values can be saved. Up to 30
calculation result waveform channels (W1 to W30) are available at once.
7.3 Waveform Calculations
Waveform calculations cannot be performed after measurement.

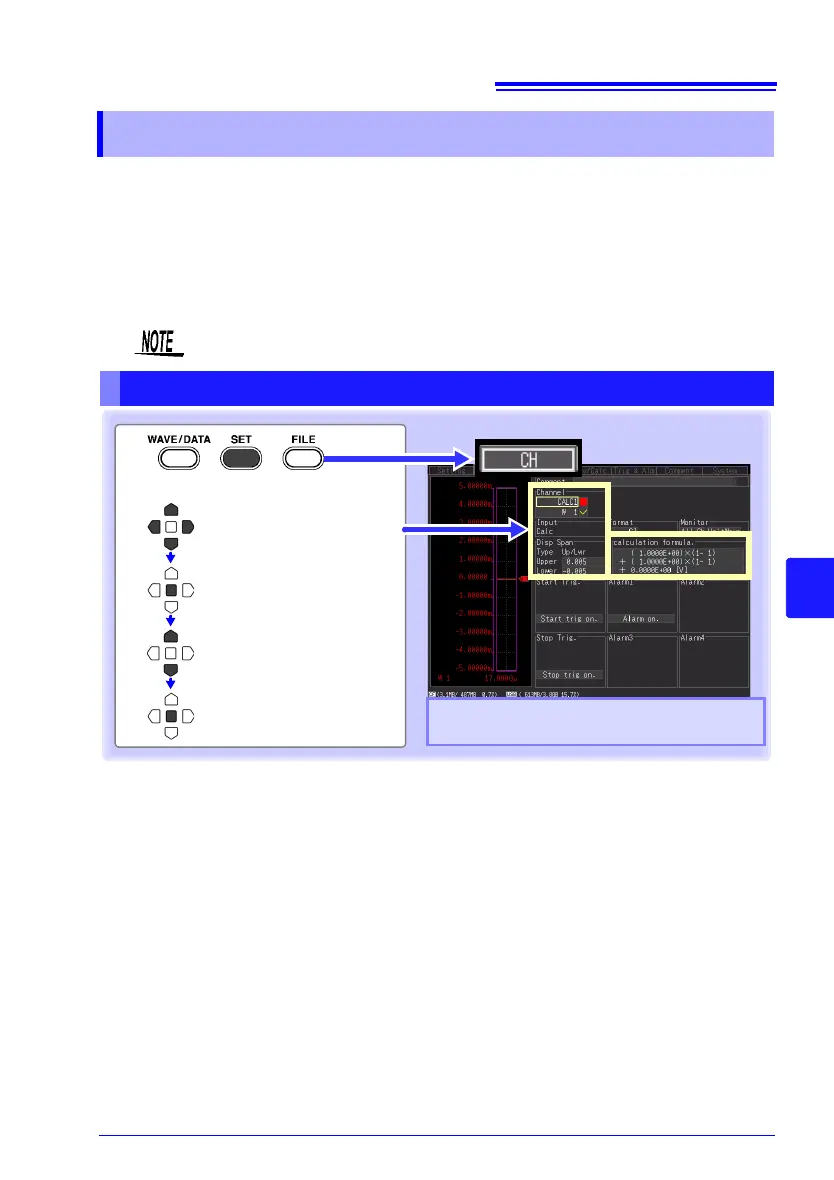

Key Setting Procedure
Select the [CH] Screen.
Move to a setting item.
Apply
Open the setting options
for the item to be set.
Select from the listed op-
tions.
1
2
UNIT selects the input unit and CHAN select
the channel to be set.

Hioki LR8401-20 Specifications

General

Type	Data Logger
Model	LR8401-20
Number of channels	20
Display	LCD
Power Supply	AC adapter or battery
Input Type	Voltage, Thermocouple, Resistance
Sampling Rate	100 ms to 1 hr
Communication Interface	USB
Accuracy	±0.1% of reading
Operating Temperature	0°C to 50°C
Pulse Input	No
Measurement Range (Temperature)	-200 to 1372 °C (K), -200 to 400 °C (T), -200 to 1000 °C (E), 0 to 1768 °C (R), 0 to 1768 °C (S), 0 to 1820 °C (B), -100 to 400 °C (N), -200 to 400 °C (J)
Recording Interval	100 ms to 1 hr
