7.5 Displaying Flicker Values in Graph and List Form
112
Displayed channel
Y-axis scale (Ydiv)
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
X-axis scale (Tdiv)
Selects the X-axis scale.
AUTO scaling is used during recording. This cannot be changed.

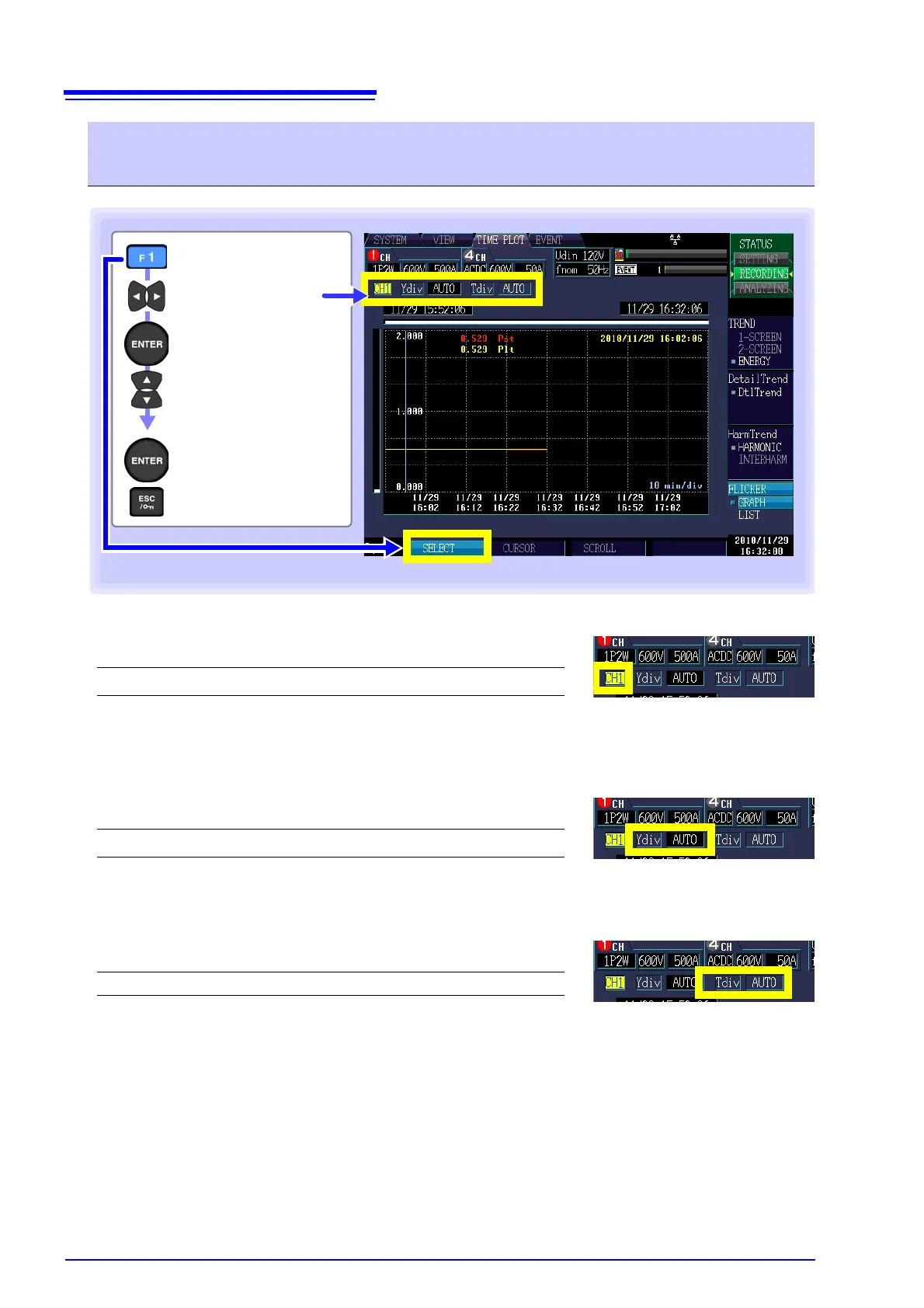

Changing the displayed channel and enlarging and reducing graphs
(changing the X- and Y-axis scale)
Display the
pull-down menu
Select a setting
Accept the setting
Cancel
[SELECT]
Select a setting
Settings:( : Default)
CH1, CH2, CH3
Settings:( : Default)
AUTO, x1, x2, x5, x10, x25, x50
Settings:
From 10min/div
To Next Page
