6.2 Displaying Instantaneous Waveforms
78
You can read waveform instantaneous values and time with the cursor. Normally, the cursor is located at
the beginning of the waveform.
You can read waveform instantaneous values with the cursor. Normally, the cursor is located at the begin-
ning of the waveform.

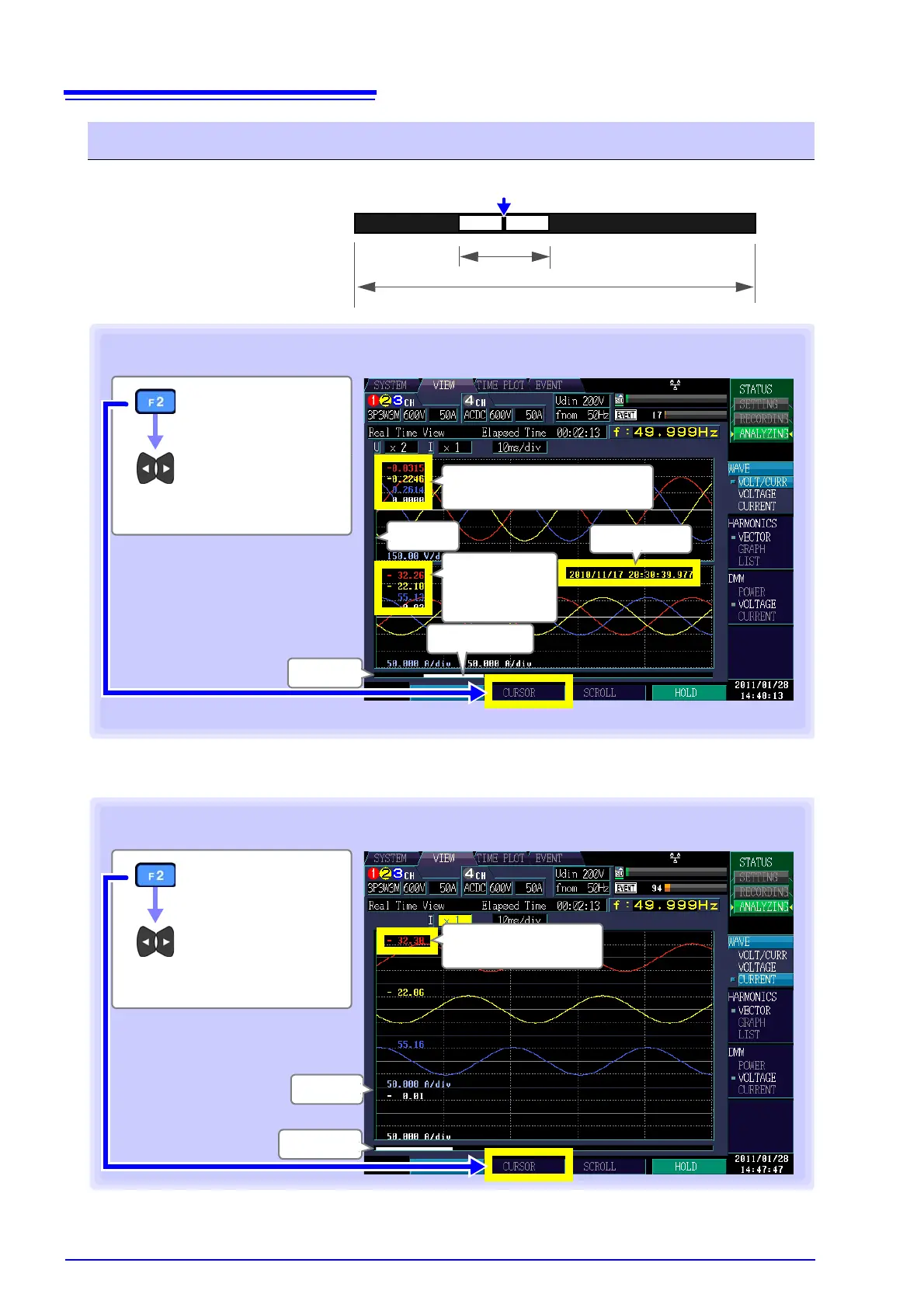

Viewing the value and time over the cursor (cursor measurement)
The cursor on the scroll bar shows
where the cursor is located relative to
all measurement data.
Scroll bar
Display scope
All measurement data
Cursor position
[CURSOR]
Move the vertical
cursor left and
right to read the
display value.
Cursor color
Red: CH1
Yellow: CH2
Blue: CH3
White: CH4
Cursor
Cursor time
Voltage cursor value (waveform
instantaneous value)
Current cursor
value (waveform
instantaneous
value)
Scroll bar
[VOLT/CURR] display
Display scope
[CURSOR]
Move the vertical
cursor left and
right to read the
display value.
Cursor color
Red: CH1
Yellow: CH2
Blue: CH3
White: CH4
Cursor
Cursor value (waveform
instantaneous value)
Scroll bar
[VOLTAGE] or [CURRENT] display
