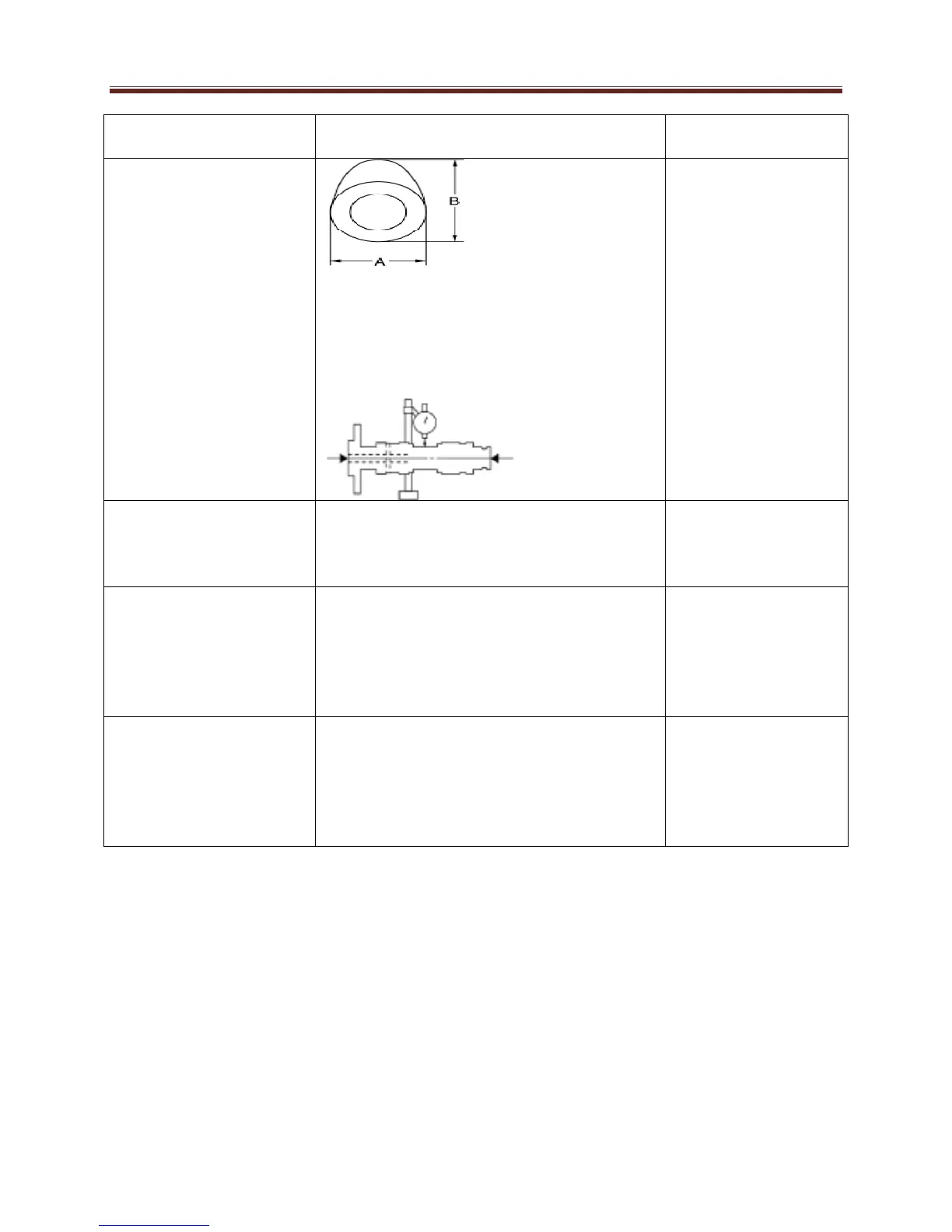

Specifications
2-7
Item
Metric
Standard
Service Wear
Limit
Camshaft
Drive method
Cam dimensions
Intake “A”
“B”
Exhaust “A”
“B”
Camshaft run out limit
40.88 mm (1.6094in)
32.30 mm (1.2717in)
40.95 mm (1.6122in)
32.30 mm (1.2717in）
Cam chain
No. of links
Cam chain adjustment
method
92RH2010J/126M
Automatic
Rocker
arm/rocker
arm shaft
Rocker arm inside
diameter
Shaft outside diameter
Arm-to-shaft clearance
12.000 -12.018 mm (0.4724-0.4731 in)
11.973 -11.989 mm (0.4714-0.4720 in)
0.011- 0.045 mm (0.0004-0.0018 in)
Valve, valve seat,
valve guide
Valve clearance (cold)
IN
EX
0.10 - 0.015 mm (0.0039 - 0.0059in)
0.15 - 0.20 mm (0.0059 - 0.0079 in)
