2. Adjust the free play
• Loosen the locknut (2)
• Turn brake rod (1) in or out
until the correct free play is
obtained.
Brake pedal free play
0 mm (0.0 in)
3. Tighten the locknut to specification.
Locknut
17 Nm (1.7 m · kg, 12 ft · lb)
Note:
Always check that there is no drag on
the front or rear wheels when
completing a brake adjustment.

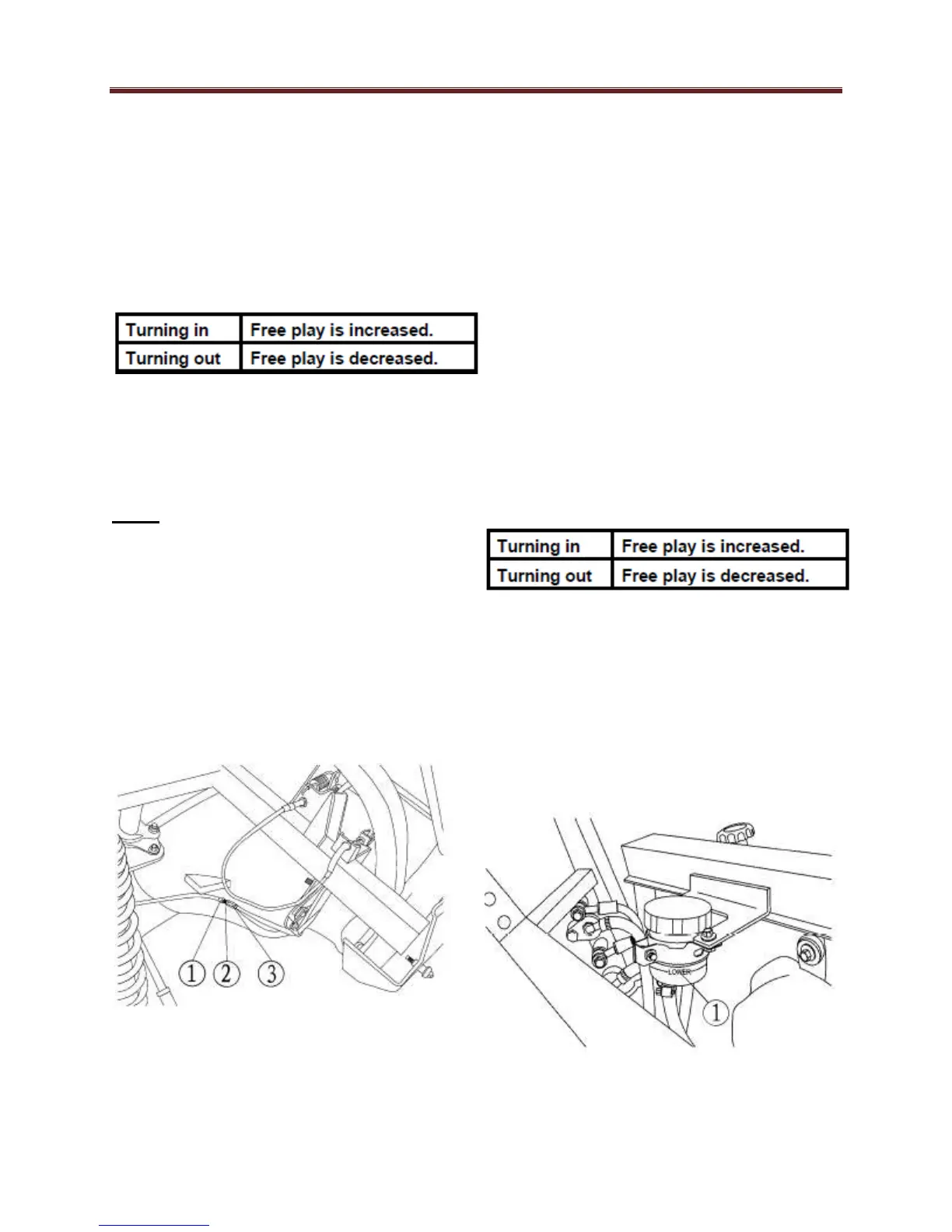

ADJUSTING THE PARKING BRAKE
• Parking Brake cable adjuster cover
(1)
• Parking brake cable locknut (2)
• Parking brake cable adjuster (3)
1. Shift the drive select lever into
neutral gear.
2. Lift up the hood
3. Measure the parking brake cable
free play.
Parking brake cable free play
2 ~ 3 mm (0.079 ~ 0.118 in)
Adjusting the parking brake cable free
play.
• Pull back the adjuster cover (1).
• Loosen the locknut (2).
• Turn the adjuster (3) in or out until
the correct free play is obtained.
• Tighten the locknut (2).
• Slide the adjuster cover 1 to its
original position.
• Close the hood
CHECKING THE BRAKE FLUID LEVEL
1. Place the vehicle on a level surface.
