Engine
4-6

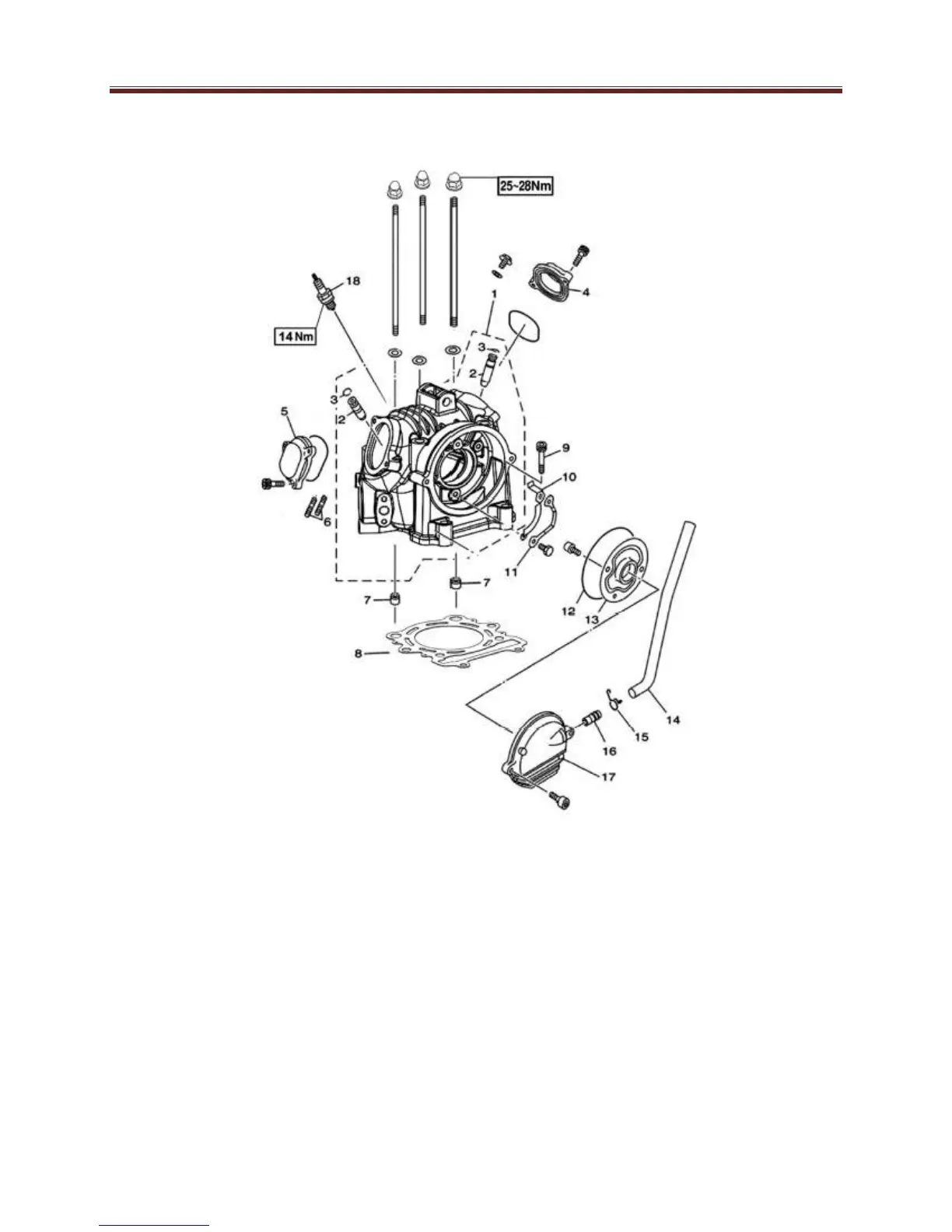

Cylinder Head and Cylinder Head Cover
No.
Part Name
Qty
Remarks
9
10
11
12
13
14
15
16
17
18
Inner hex cylinder screw M8 X 50
Cam pressure plate
Cam stop
Seal o-ring 109×2.4
Fuel shield plate comp
Exhaust pipe
Clip clamp
Seal o-ring 109×2.4
Cylinder head left cover
Spark plug (NGK DR8EA)
2
1
1
1
1
1
1
1
1
1
For installation, reverse the order
listed.
