Pitch Curve cont.
7. Scroll to the “EXP” (exponential) eld and press the jog dial
button to activate the menu.
8. Rotate the jog dial to select “OFF” or “ON”. When “ON” is
selected, the points in the curve are connected with
exponential curves. Otherwise, the points are joined linearly.
Press the jog dial to conrm your selection.

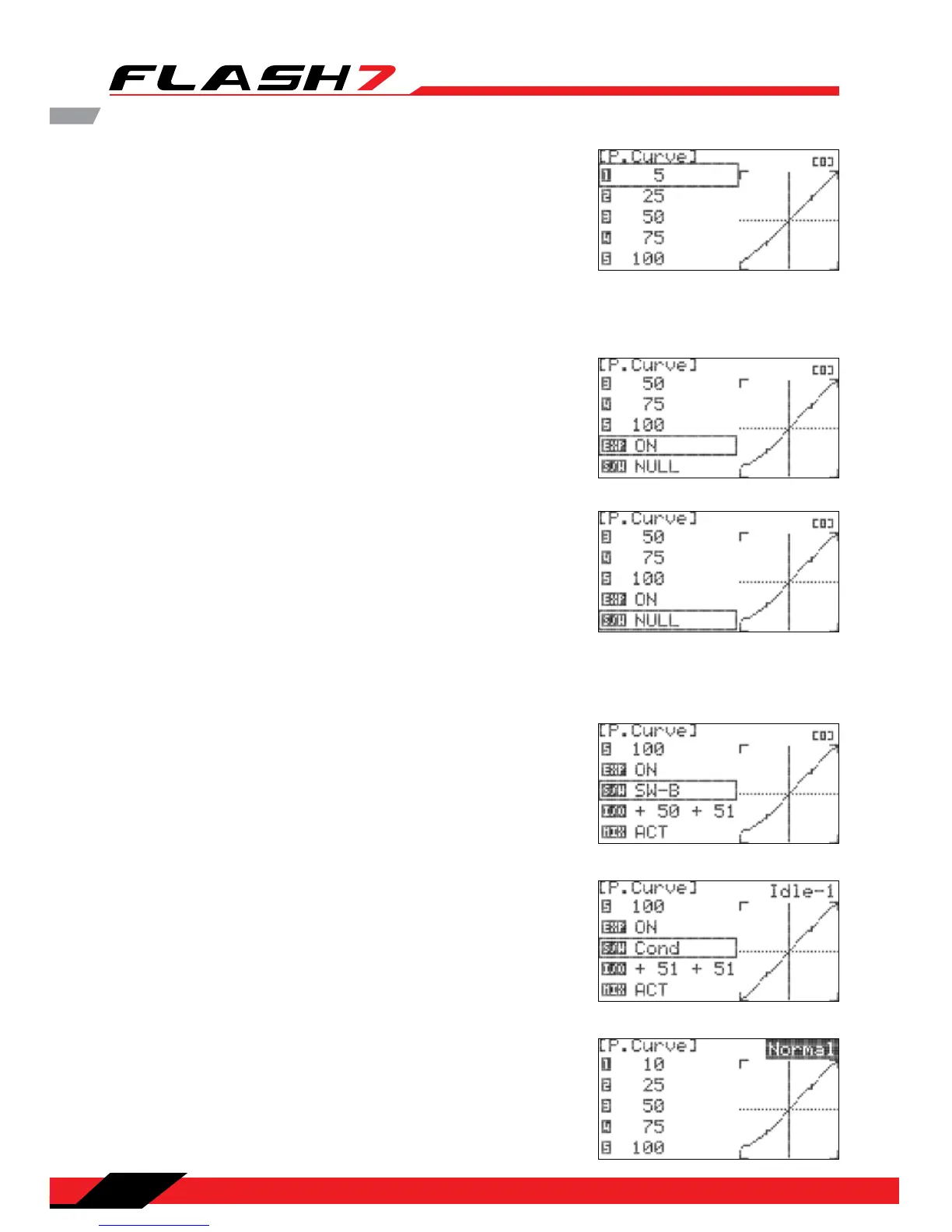

5. Rotate the jog dial to input the desired pitch position at this
point on the curve (Throttle stick full down).
9. Scroll to highlight “S/W” and press the jog dial to activate the
switch menu.
10. Scroll to select a switch to activate the camber mix. Press the jog dial to conrm your selection.
b. If you choose a switch:
- The current switch position will be displayed in the top
right eld of the display as “0”, “1”, or “2”.
- Repeat steps 4-8 to dene pitch curve for every switch
position.
6. Repeat steps 4 and 5 for the remaining four steps on the pitch curve. As values are changed, the on-
screen graph displays real-time updates to the pitch curve.
c. If you choose “Cond” (Flight Condition):
- The upper right eld of the menu displays which ight
condition is currently active and will be programmed.
- Scroll to the ight condition eld and press the jog dial to
activate the menu.
- Choose the desired ight condition and press the jog dial
to conrm your selection.
- Repeat steps 4-8 as applicable to dene a pitch curve for
every ight condition.
a. If you choose the “NULL” option, the set pitch curve will remain active at all times for this model.
To Next Page
