Press the
Enter key
to complete the setting.

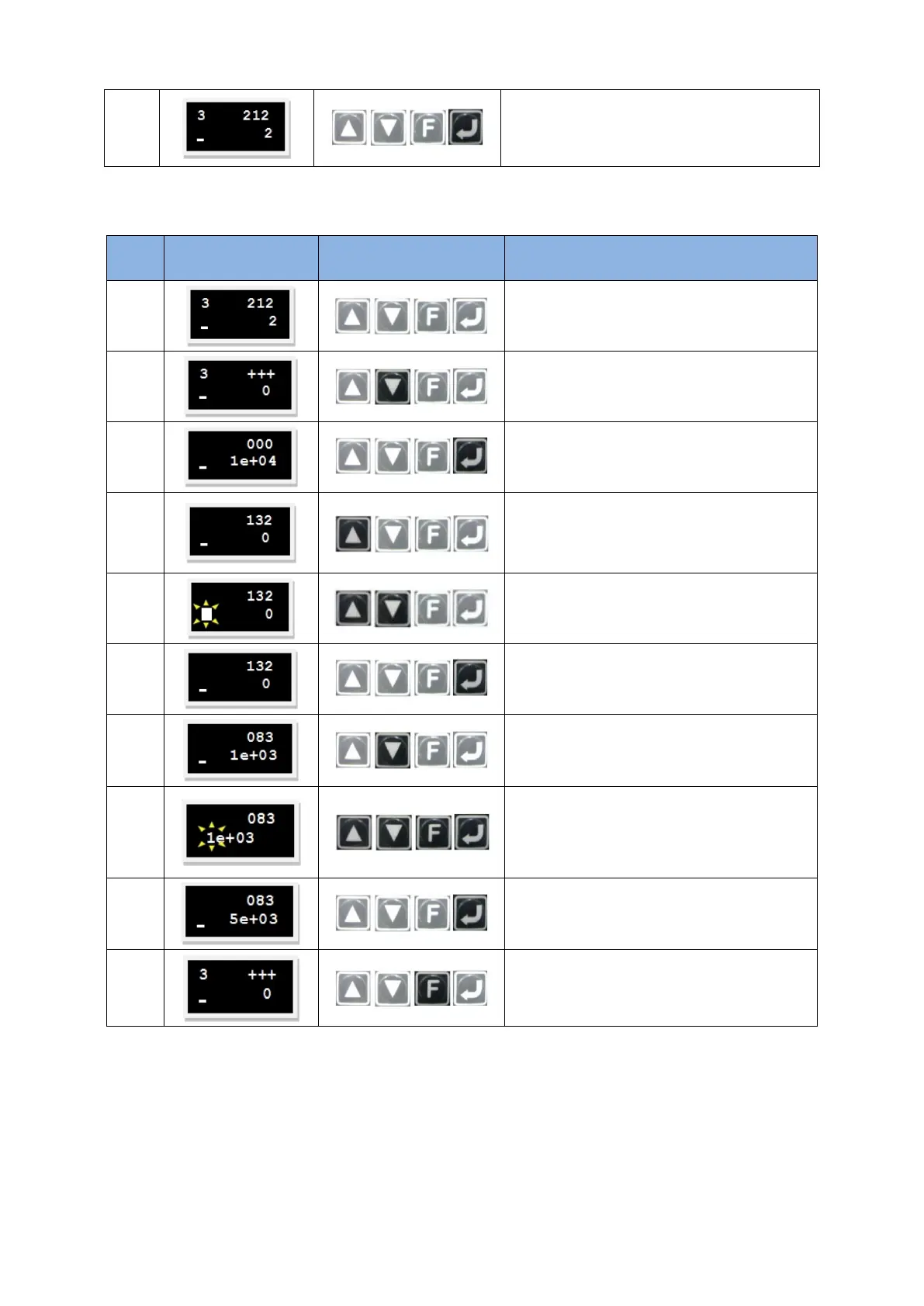

(2) Input command format setting
Use following steps to set the input command format via LCD.
Step
LCD display after
operation
Used keys
Operation
1
Continue the last setting screen of
operation mode.
2
Press and hold the
Down key
to go to the
“+++” page.
3
Press the
Enter key
to enter the advanced
parameter zone.
4
Press and hold the
Up key
to go to LCD
No. 132 page (refer to note 1), i.e. the
setting page of input command format for
the velocity and torque modes.
5
Press the
Up key
or
Down key
to set this
parameter to the required value. (Note. This
example is the analog command input.)
6
Press the
Enter key
to complete the “input
command format” setting.
7
Press and hold the
Down key
to go to LCD
No. 083 page (refer to note 1), i.e. the
setting page of velocity command scale.
8
Press the
Enter key
first and set this
parameter to the required value. (To invert
the voltage or PWM command, simply add
a minus sign to “velocity command scale”.)
9
Press the
Enter key
to complete the
“velocity command scale” setting.
10
Press and hold the
F key
to go back to the
“+++” page, i.e. the common parameter
zone.
To set the dead band for velocity command (LCD No. 084), the setting procedure is the
same as that for setting velocity command scale (LCD No. 083).
