D2 Drive User Guide v1.8 E. EMC Solution
HIWIN Mikrosystem Corp. 295

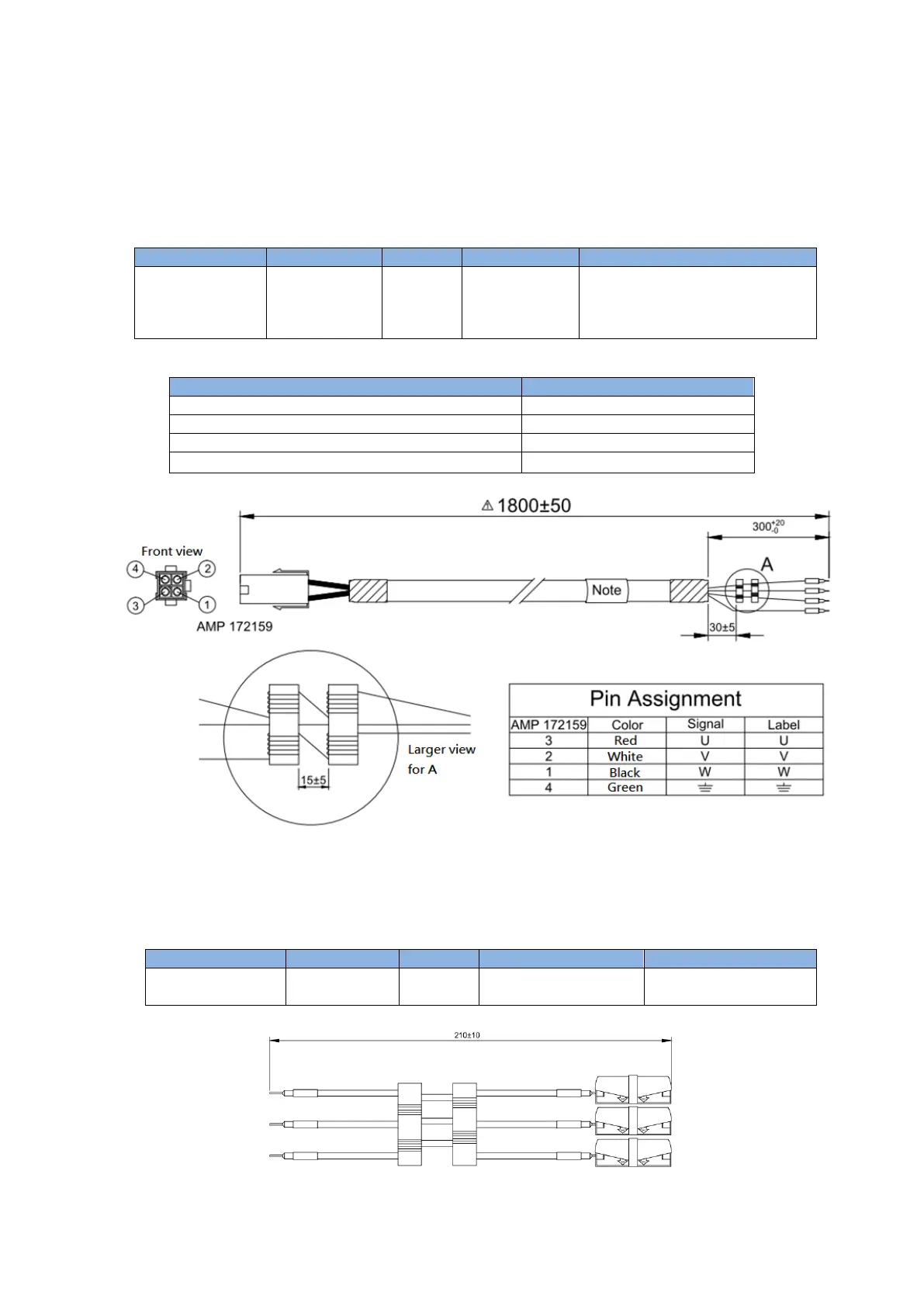

E.2. Motor power cable with magnetic rings
When the motor (100 W - 750 W) is at the enable state, if the control signal is subject to the
noise interference, a magnetic ring can be considered to install in the motor power cable.
(1) Motor power cable including internal magnetic rings
Table E-6
Part No.
Specification
Quantity
Description
Note
HE00831M2800
AC P.C. +
Core
1
Motor filter
(100 W to 750
W only)
1. The power cable does not
contain the brake signal.
2. The length of power cable is
about 2.4 meters.
Table E-7
Item
Specification
Maximum voltage
240 Vac
Maximum current
7.5 A
rms
Peak current /Maximum duration of peak current
15 A
rms
/1 second
Ambient operating temperature
0 to 40
℃
Fig. E-5
(2) Cable with plug-in magnetic rings
The electrical specification for this product is the same as that given in Table E-7.
Table E-8
Part No.
Specification
Quantity
Description
Note
HE00831RB200
Plug-in CM
choke filter
1
Motor filter (100 W to
750 W only)
Fig. E-6
