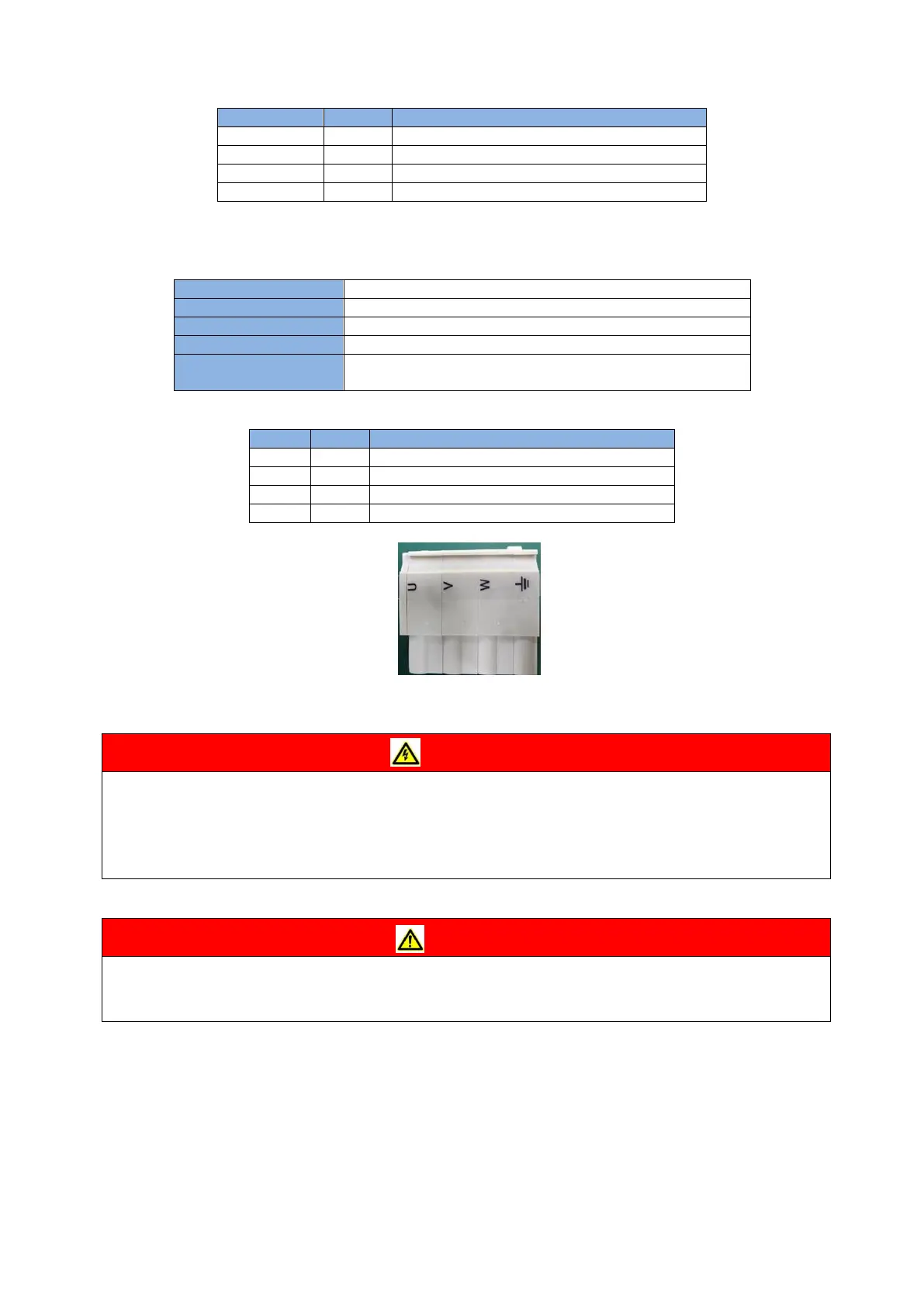

D2 Drive User Guide v1.8 E. EMC Solution
HIWIN Mikrosystem Corp. 294
Table E-3 Pin assignment for the filter-to-drive cable
Pin (color)
Name
Function
Red
U
Connect to the drive’s U-phase (input)
White
V
Connect to the drive’s V-phase (input)
Black
W
Connect to the drive’s W-phase (input)
Green
PE
Housing ground and cable shielding
B. Filter (J1) to motor
Table E-4 Specification for the filter J1
Description
4 position, 7.5mm pluggable female terminal block.
Manufacturer PN
Wago 721-864/001-000
Cable size
28 – 12 AWG
Recommended wire
14 AWG, 600 V
Wire insertion/
extraction tool
475604 (SUPU) 4PIN, Female, pitch 7.5mm
Table E-5 Connector definition
Pin
Name
Function
1
U
Connect to the motor’s U-phase (output)
2
V
Connect to the motor’s V-phase (output)
3
W
Connect to the motor’s W-phase (output)
4
PE
Housing ground and cable shielding
Fig. E-4 Connector
Danger
‧It has the risk of electric shock.
‧The cable and J1 connector are the high-voltage circuit and are connected to the main
power.
‧Not paying attention to these warnings could result in the equipment damage, injury, or
death.
Danger
‧Be careful when installing.
‧Not paying attention to these warnings could result in the equipment damage, injury, or
death.
