D2 Drive User Guide v1.8 5. Drive Configuration
HIWIN Mikrosystem Corp. 145
5
After the window for parameters
confirmation appears, click the
“Send to RAM” button to save
parameters to drive RAM.
5.9.4. Stand-alone mode
In the stand-alone mode, the drive will execute the internal path planning to drive the motor,
referring to Section 3.1.4.
The stand-alone mode configuration includes the mode selection. After all parameters are set,
refer to Section 5.8.1 to save parameters to flash.
.
Mode selection

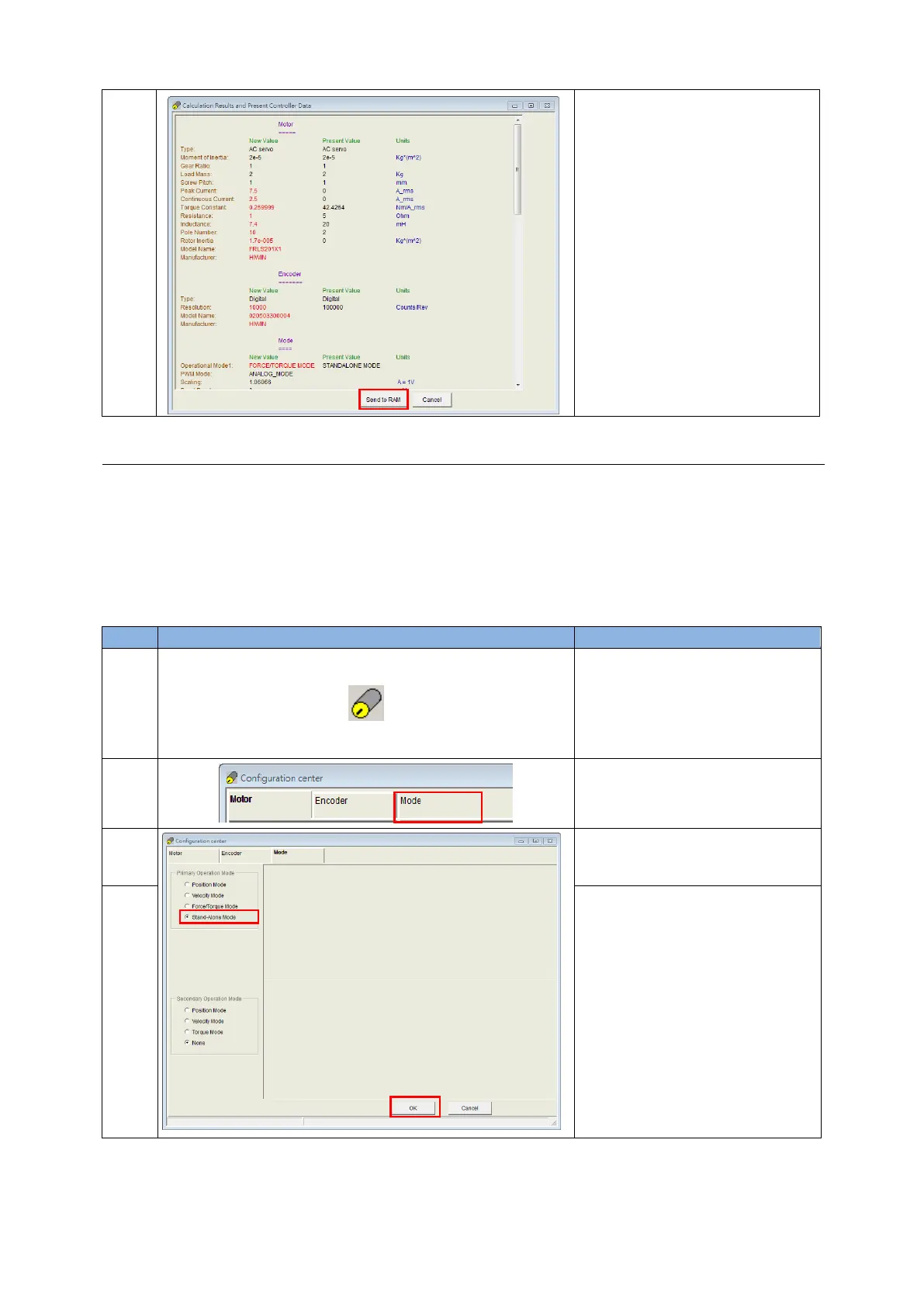

Use following steps to select the stand-alone mode via HMI.
Step
Graphical (HMI) description
Operation
1
After executing Lightening, click
the “configuration center” icon in
the HMI main toolbar, as shown in
the left figure, or select the
“configuration center” option in
“Conf/Tune”.
2
Select the “Mode” tab in the
configuration center.
3
In the “Mode” tab, select the option
of “Stand-Alone Mode”, as shown
in the left figure (a).
4
After all settings are completed,
click the “OK” button, as shown in
the left figure (b).
(b)
(a)
