D2 Drive User Guide v1.8 E. EMC Solution
HIWIN Mikrosystem Corp. 293

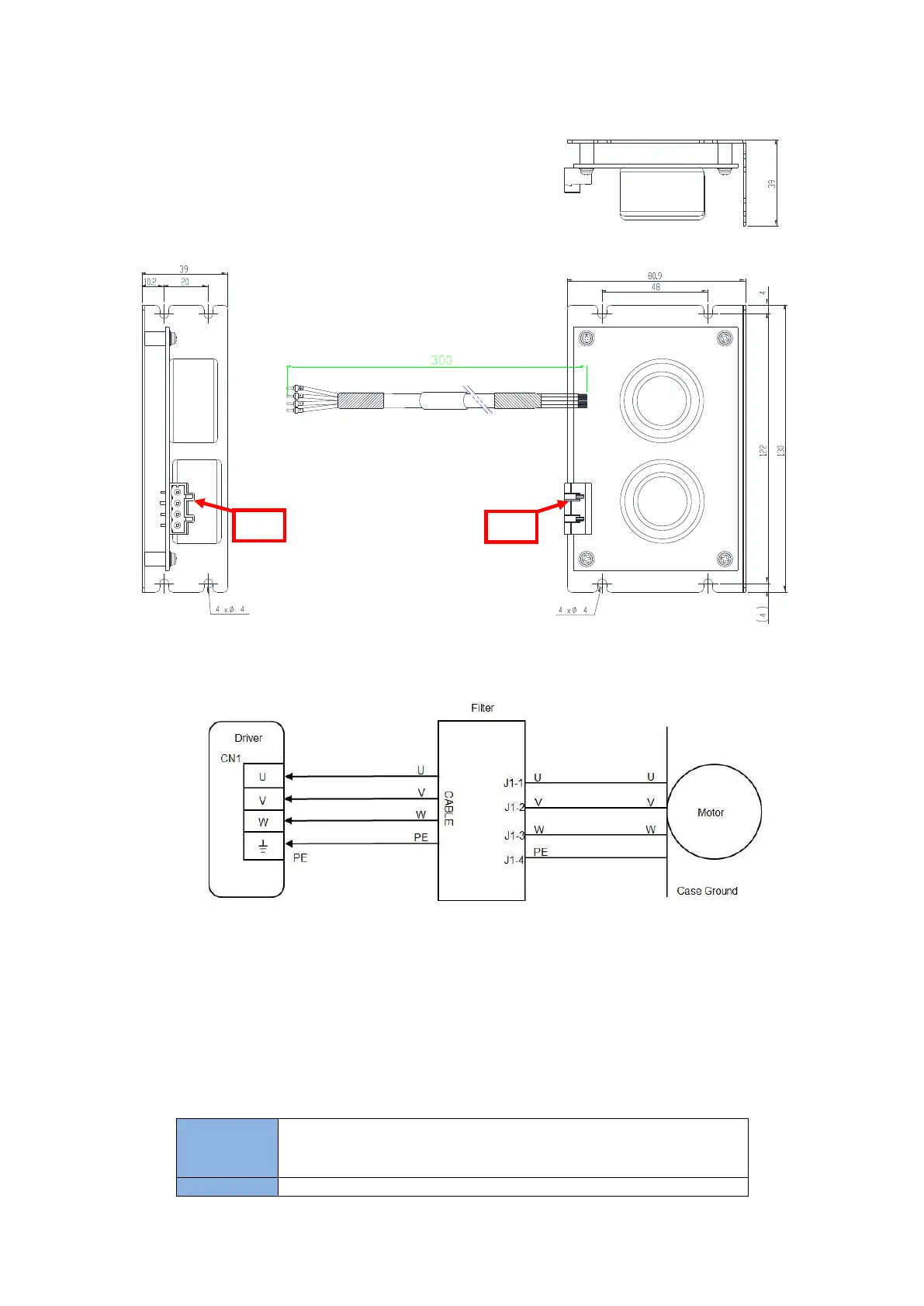

The MF-CM-S dimensions are shown as follows.
Fig. E-2
The wiring diagram of common-mode motor filter with the drive and motor is given as follows.
Fig. E-3
Instruction:
(1) Insert the terminal of common-mode motor filter into the drive CN1 in sequence
based on the line marked.
(2) Insert the motor cable into the connector of common-mode motor filter based on the
label on the connector.
A. Filter to drive
Table E-2 Specification for the filter-to-drive cable
E191346 AWM 2586 2mm 2x4C 105
℃
600V VW-1 AWM I/II B
2mm2x4C 105
℃
600V FT1 SIN YU RoHS SUPER FLEXIBLE
AND OIL RESISTANCE CE
To Next Page
