Doc: HMSI-27-309, Rev. 3.11Anybus Communicator PROFINET User Manual
Appendix B

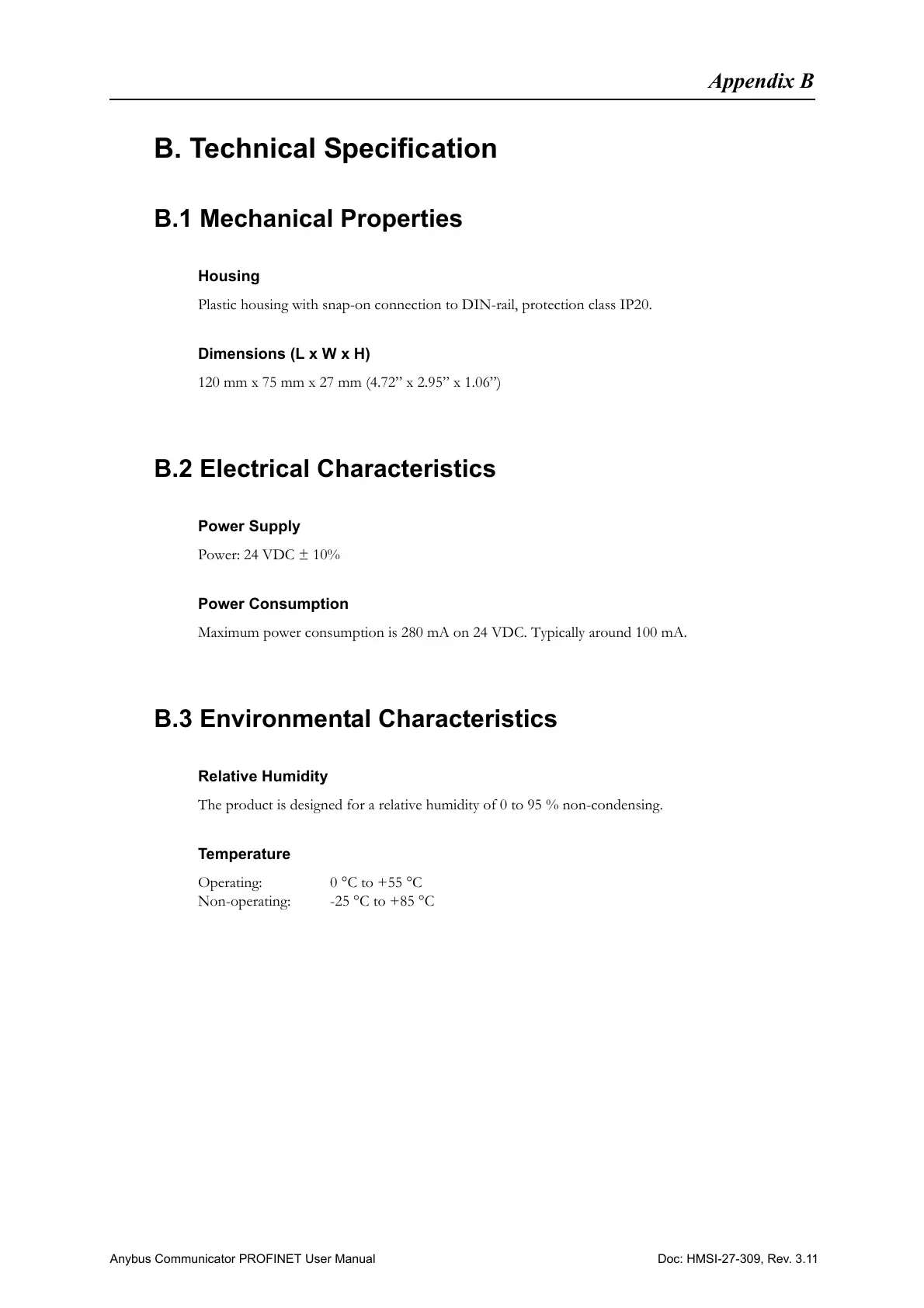

B. Technical Specification
B.1 Mechanical Properties
Housing
Plastic housing with snap-on connection to DIN-rail, protection class IP20.
Dimensions (L x W x H)
120 mm x 75 mm x 27 mm (4.72” x 2.95” x 1.06”)
B.2 Electrical Characteristics
Power Supply
Power: 24 VDC ± 10%
Power Consumption
Maximum power consumption is 280 mA on 24 VDC. Typically around 100 mA.
B.3 Environmental Characteristics
Relative Humidity
The product is designed for a relative humidity of 0 to 95 % non-condensing.
Temperature
Operating: 0 °C to +55 °C
Non-operating: -25 °C to +85 °C
