Connector Pin Assignments 99
Doc: HMSI-27-309, Rev. 3.11Anybus Communicator PROFINET User Manual

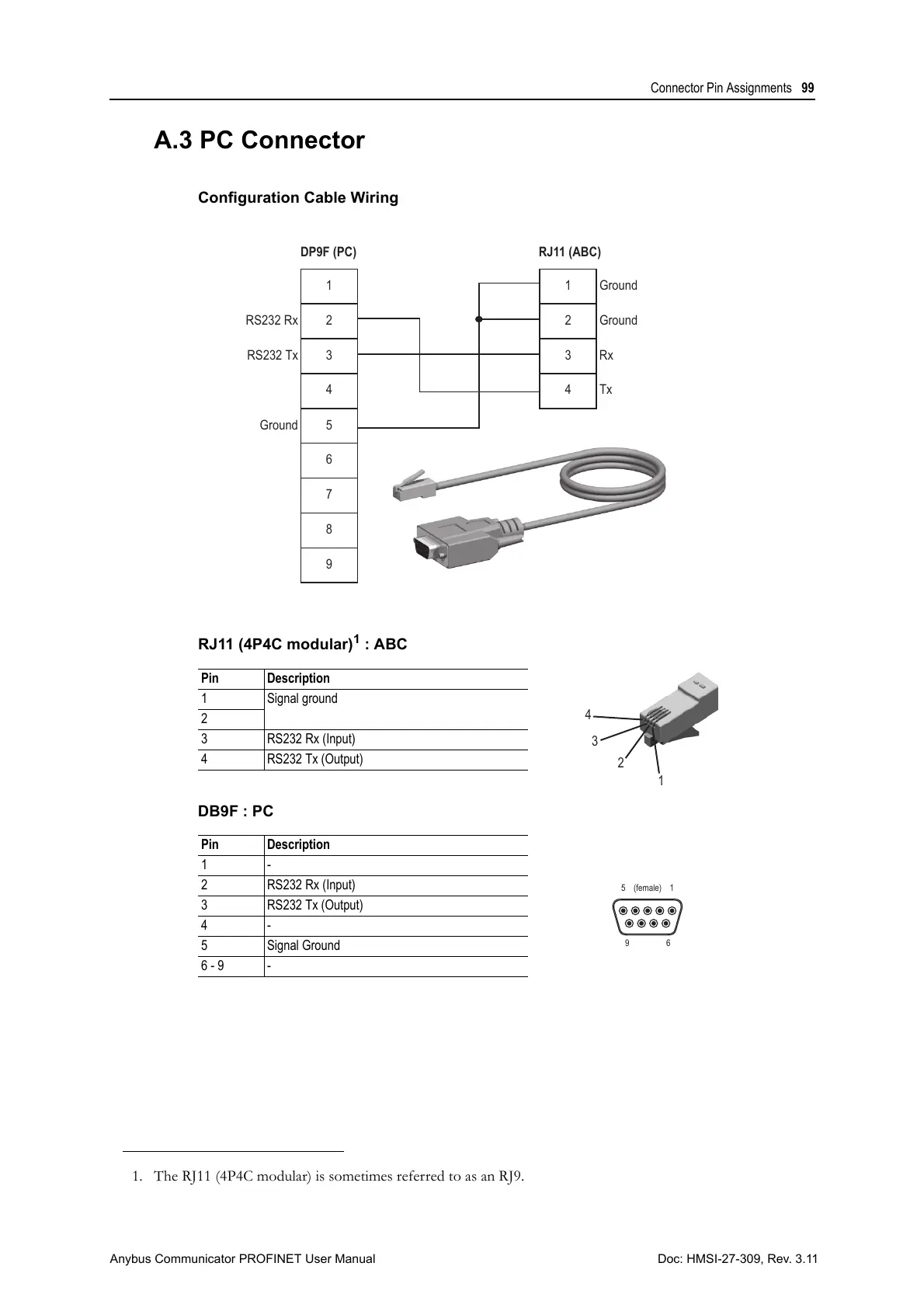

A.3 PC Connector
Configuration Cable Wiring
RJ11 (4P4C modular)
1
: ABC
DB9F : PC
Pin Description
1 Signal ground
2
3 RS232 Rx (Input)
4 RS232 Tx (Output)
1. The RJ11 (4P4C modular) is sometimes referred to as an RJ9.
Pin Description
1-
2 RS232 Rx (Input)
3 RS232 Tx (Output)
4-
5 Signal Ground
6 - 9 -
1
2
3
4
5
6
7
8
9
1
2
3
4
DP9F (PC) RJ11 (ABC)
Ground
Ground
Rx
Tx
RS232 Tx
RS232 Rx
Ground
1
2
3
4
96
15 (female)
