Doc: HMSI-27-309, Rev. 3.11Anybus Communicator PROFINET User Manual
Appendix A

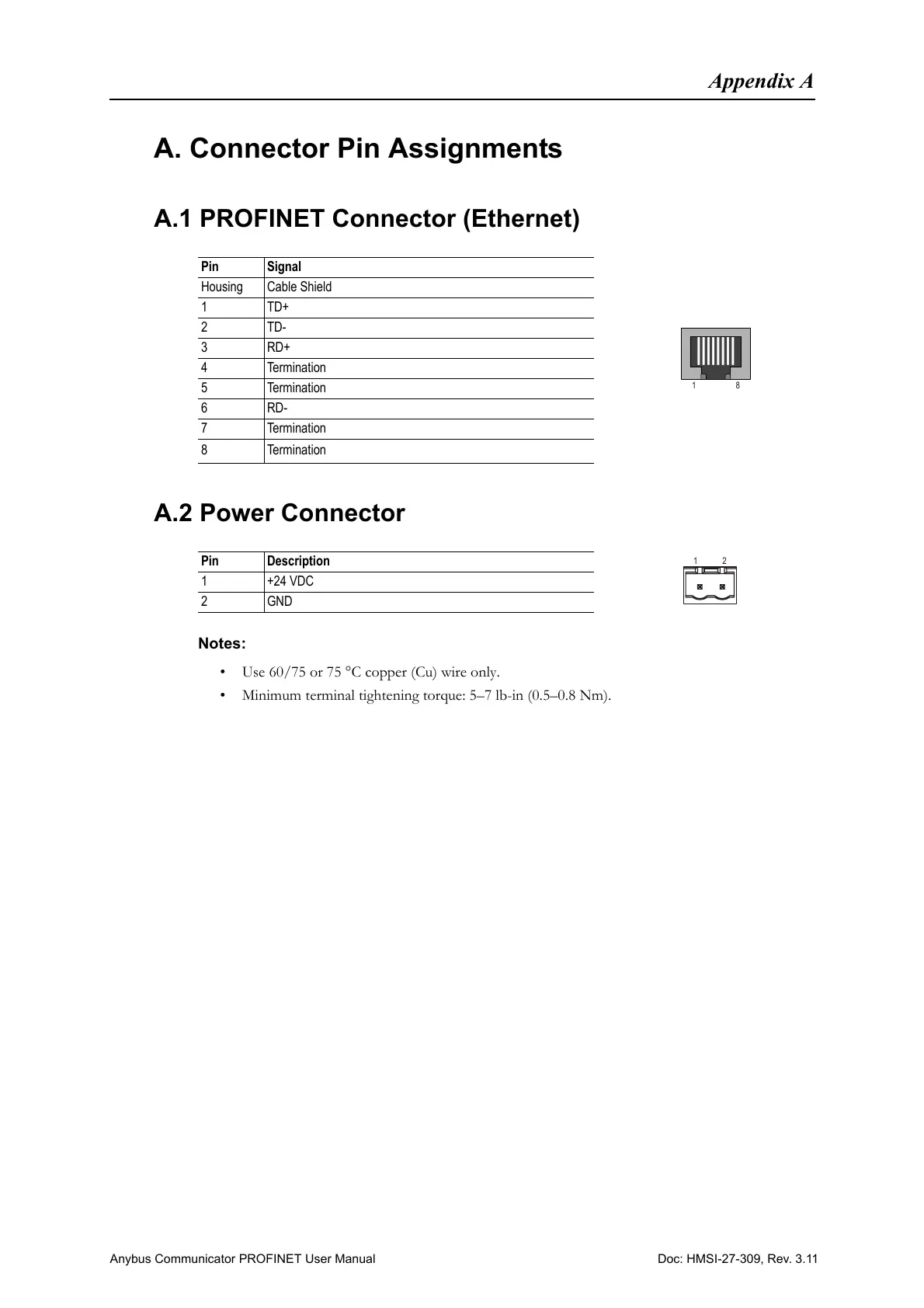

A. Connector Pin Assignments
A.1 PROFINET Connector (Ethernet)
A.2 Power Connector
Notes:
• Use 60/75 or 75 °C copper (Cu) wire only.
• Minimum terminal tightening torque: 5–7 lb-in (0.5–0.8 Nm).
Pin Signal
Housing Cable Shield
1TD+
2TD-
3RD+
4 Termination
5 Termination
6RD-
7 Termination
8 Termination
Pin Description
1 +24 VDC
2GND
18
12
