Control and Status Registers 65
Doc: HMSI-27-309, Rev. 3.11Anybus Communicator PROFINET User Manual

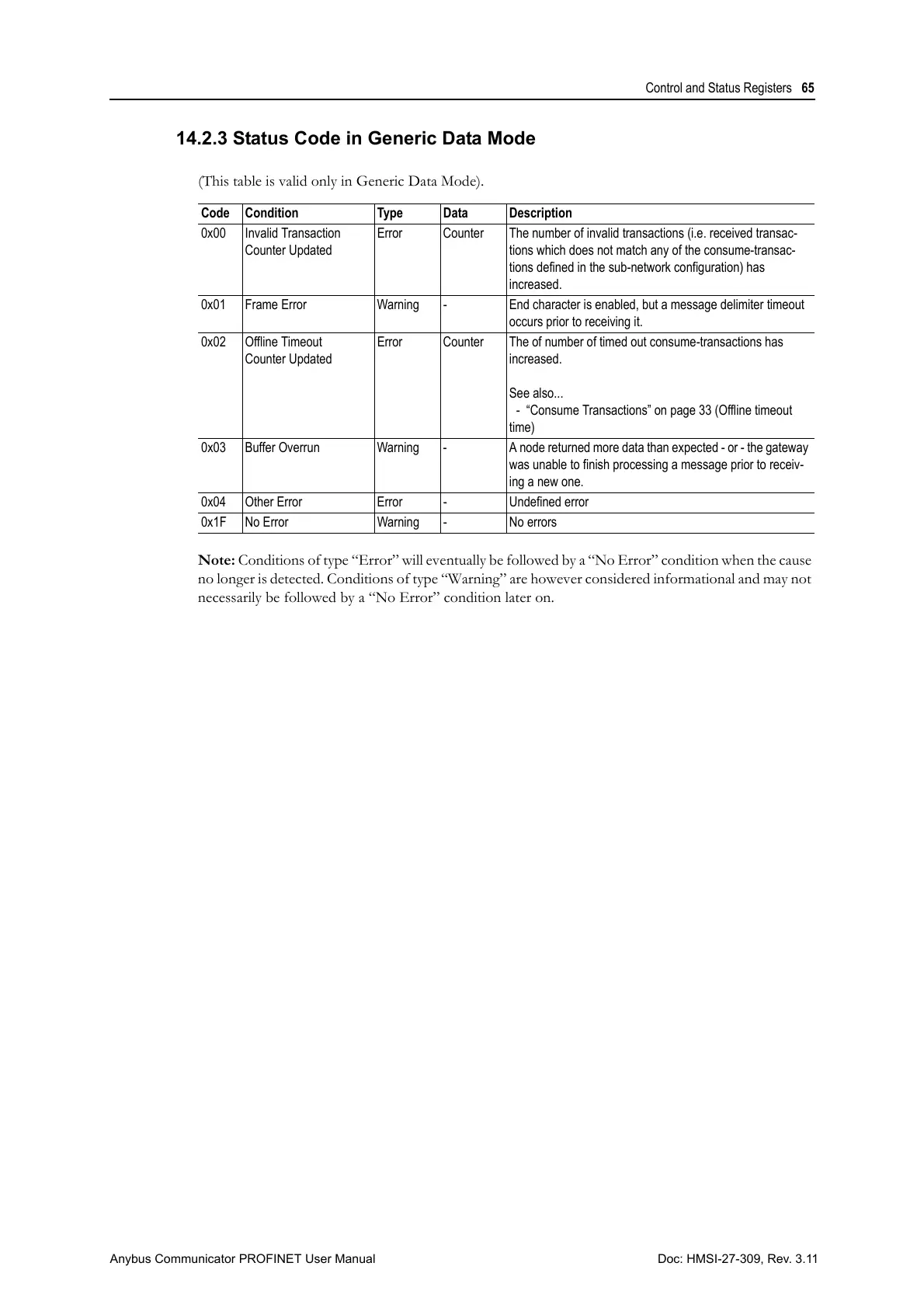

14.2.3 Status Code in Generic Data Mode
(This table is valid only in Generic Data Mode).
Note: Conditions of type “Error” will eventually be followed by a “No Error” condition when the cause
no longer is detected. Conditions of type “Warning” are however considered informational and may not
necessarily be followed by a “No Error” condition later on.
Code Condition Type Data Description
0x00 Invalid Transaction
Counter Updated
Error Counter The number of invalid transactions (i.e. received transac-
tions which does not match any of the consume-transac-
tions defined in the sub-network configuration) has
increased.
0x01 Frame Error Warning - End character is enabled, but a message delimiter timeout
occurs prior to receiving it.
0x02 Offline Timeout
Counter Updated
Error Counter The of number of timed out consume-transactions has
increased.
See also...
- “Consume Transactions” on page 33 (Offline timeout
time)
0x03 Buffer Overrun Warning - A node returned more data than expected - or - the gateway
was unable to finish processing a message prior to receiv-
ing a new one.
0x04 Other Error Error - Undefined error
0x1F No Error Warning - No errors
