28 User Manual Compact Crane C10

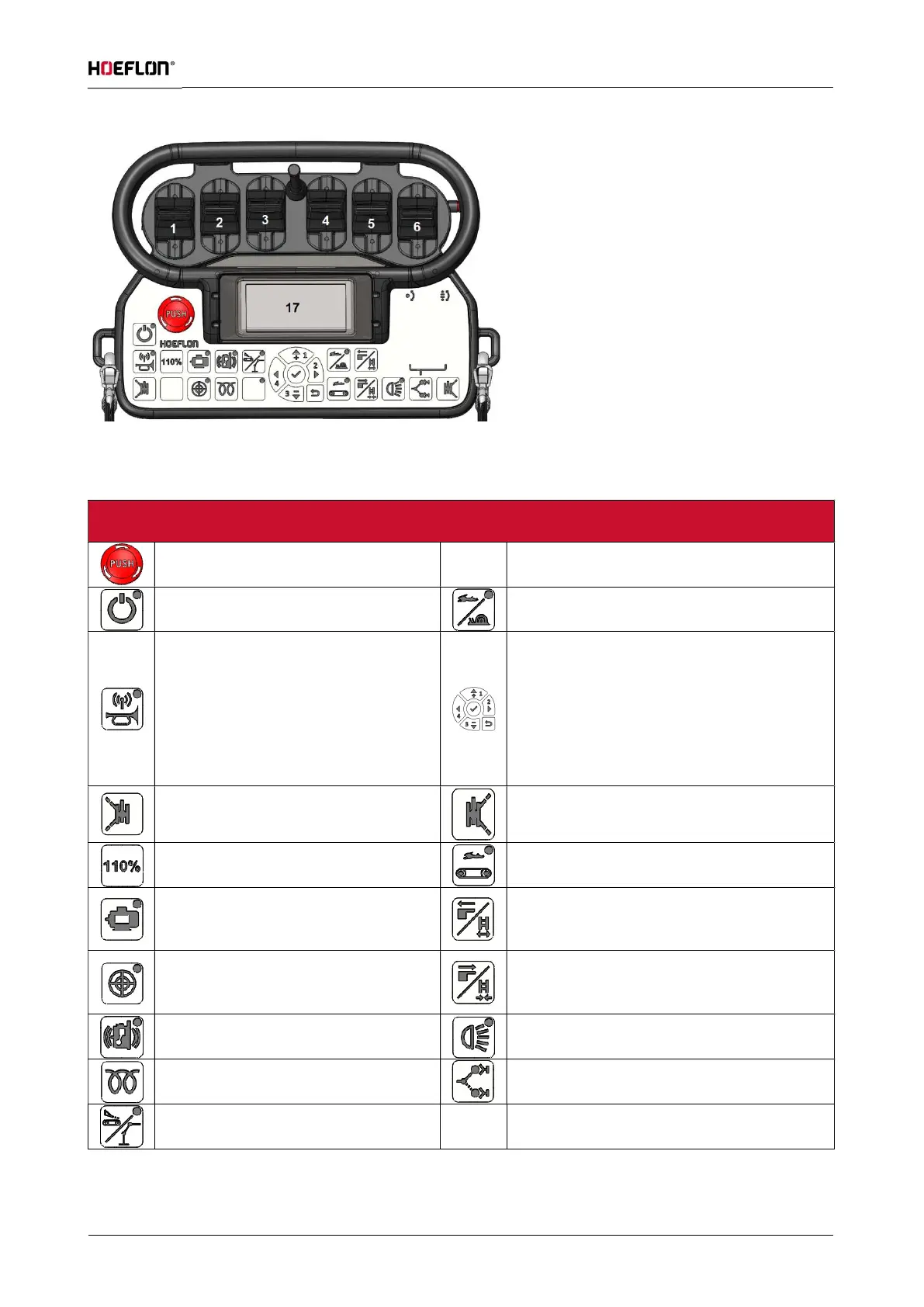

Figure: 15
Buttons
Emergency stop 17 Display
On/off button transmitter Engage second operating speed
Activate receiver and horn
Control panel display:
✓ Confirmation button
 Up arrow button
 Right arrow button
 Down arrow button
 Left arrow button
 Back button
Has no function on the C10 Has no function on the C10
Boost crane capacity to 110% for 30
seconds
Has no function on the C10
On/off button electric motor
Key switch in position 1 = extend crawler
tracks Key switch in position 2 = extend
ballast
Has no function on the C10
Key switch in position 1 = retract crawler
tracks Key switch in position 2 = retract
ballast
On/off button Yanmar diesel engine Work light (optional)
Preheat button Yanmar diesel engine Has no function on the C10
Crane/drive selector (only with pick-
and-carry option)
