42 User Manual Compact Crane C10
6.6 Attachment/Removal
6.6.1 Jib
Removing the jib:

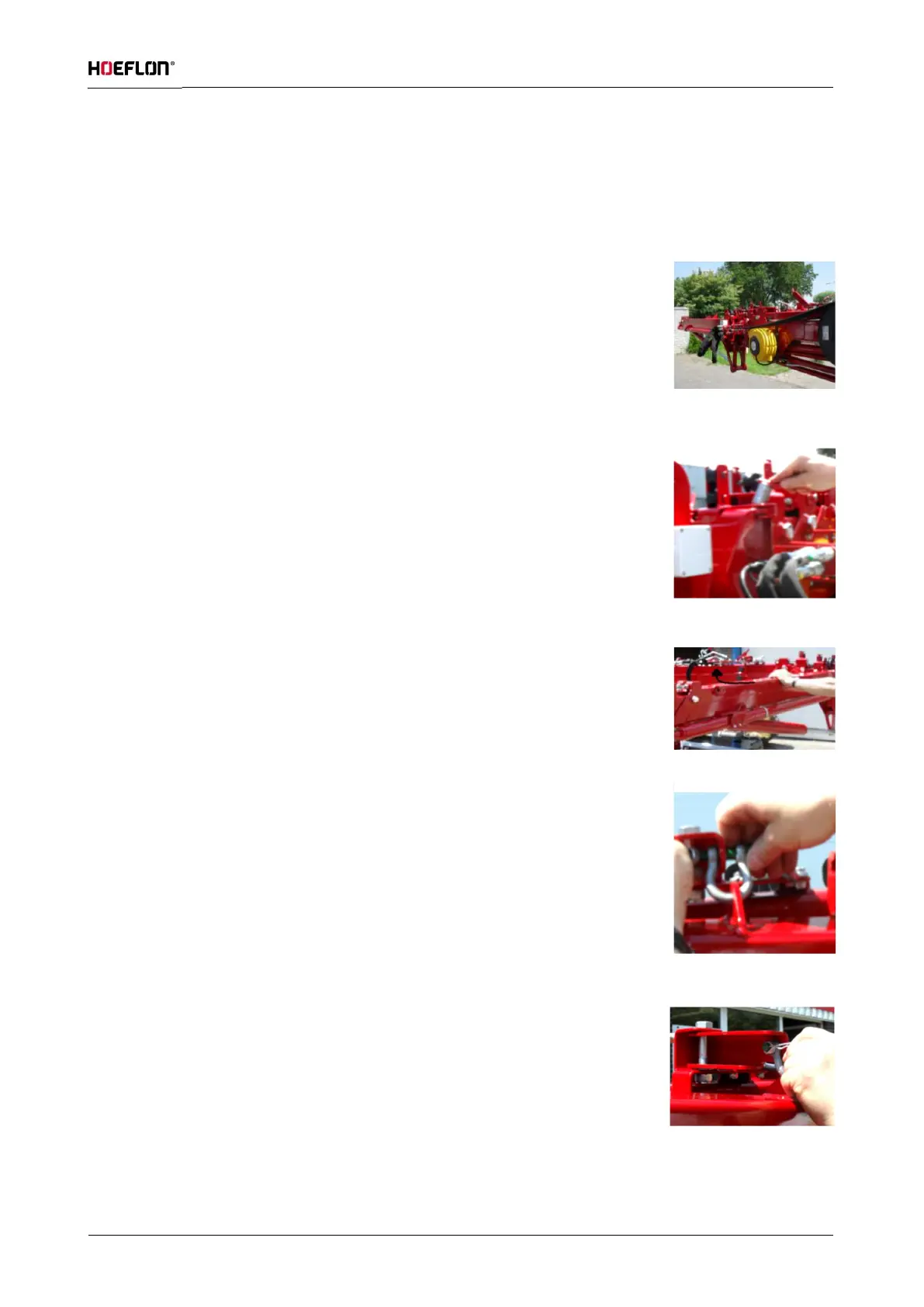

Position the boom and jib as shown in figure 38. Make sure the boom is
positioned slightly above horizontal. This makes the jib easier to turn.
Remove the two pins from the left-hand side of the hinged section of the jib (see
figure 39).
Rotate the jib 180° (see figure 40).
Secure the D-shackle on the main boom to the eye on the jib (figure 41). Raise the
jib when you do this, until it can be secured in the D-shackle. Secure the D-shackle
(see figure 42).
The jib is now suspended in the D-shackle and can be moved easily.
Remove the two pins from the right-hand side of the hinged section of the jib.
Lower the jib when you do this so that it is easier to remove the pins.
Figure: 38
Figure: 39
Figure: 40
Figure: 41
Figure: 42
