6.2 Controls
6.2.1 Remote control
The compact crane is operated by remote control; the buttons and functions of the remote control are explained
in this section.
 The transmitter is splash and rain-proof.
 Never clean the transmitter and receiver with high pressure and do not immerse them.
 Keep transmitter clean; ensure that pictograms, screen and labels remain legible.
 Wear the transmitter on the waist belt around your waist or over the shoulder with a shoulder strap.
 Always keep a second, fully charged transmitter battery at the ready.
 If the transmitter has poor or no contact, switch off the transmitter and the ignition switch of the machine.
Switch on again and the transmitter automatically seeks a new frequency.

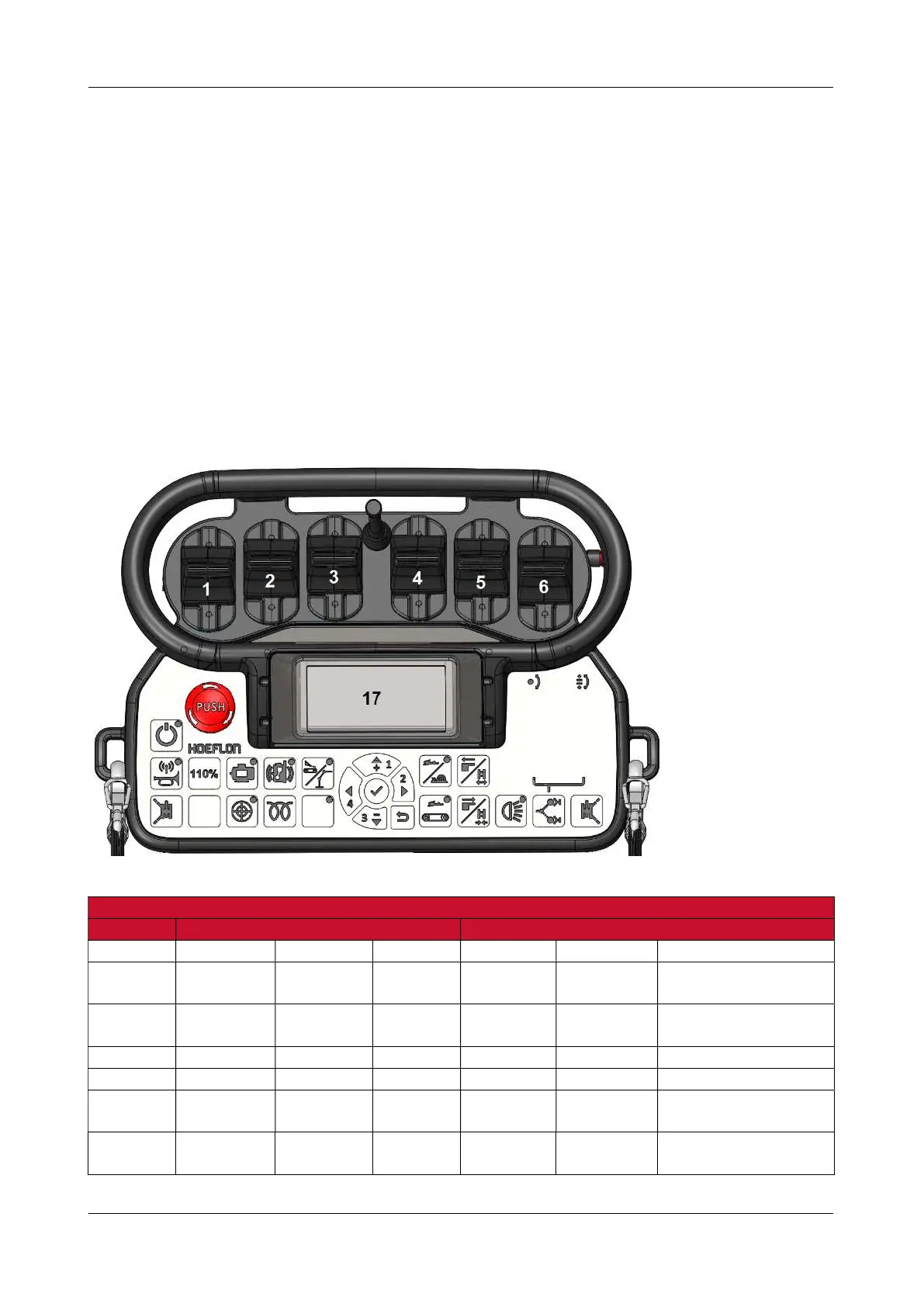

Figure: 14
Levers in standard Default
Key switch in position 1
Key switch in position 2
Number
Lever
Backwards
Forwards
Lever
Backwards
Forwards
1
LF
outrigger
Up
Down
Slewing
Left
Right
2
LR
outrigger
Up
Down
Main
boom
Retract
Extend
3
L track
Backwards
Forwards
Jib
Retract
Extend
4
R track
Backwards
Forwards
Winch
Raise
Lower
5
RR
outrigger
Up
Down
Jib
Extend
Retract
6
RF
outrigger
Up
Down
Main
boom
Extend
Retract
