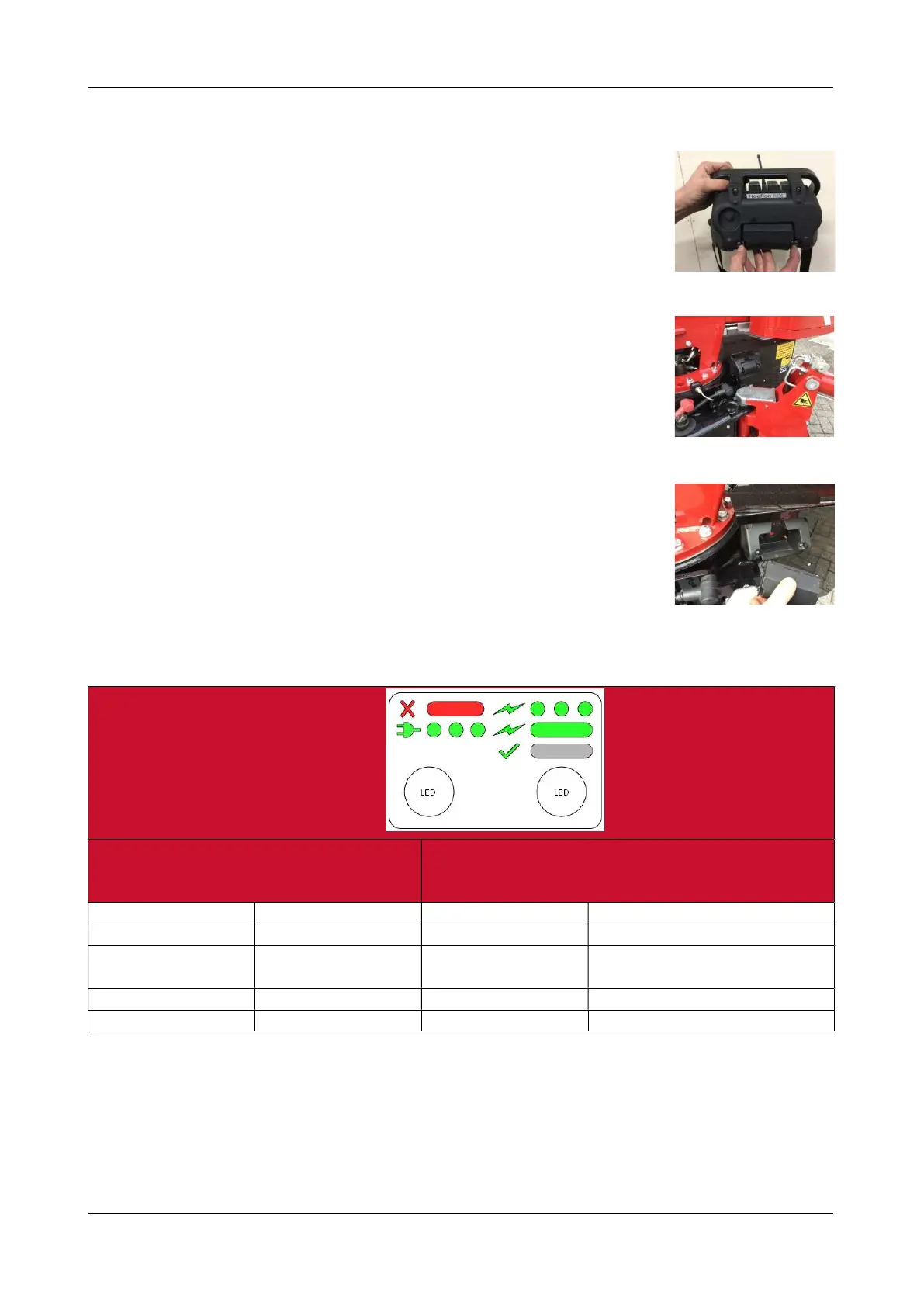

6.2.4 Changing the transmitter battery
To change the battery in the transmitter, proceed as follows:
 Switch off the transmitter and the machine.
 Remove the battery from the transmitter (figure 23).
 Swap the battery in the transmitter with the battery in the battery charger on the
crane column (see figures 24 and 25). The battery on the crane column will be
charged again when the crane is used. Attention! There is a half circle in the
plastic on the battery and another on the battery socket. Make sure these are
aligned with each other. Otherwise the battery will be backwards.
 The machine can be started again.
 See table below for meaning of the LEDs.
Left LED
Battery charger status, for troubleshooting
only
Right LED
Battery status, for user
LED status
Meaning
LED status
Meaning
Short green every 5 s
12V connected
LED off
Battery not connected
LED continuous red
Malfunction
LED
continuous
green
Battery charging 1A
LED flashing green
Charging 0.3A
LED off
Battery fully charged
Figure: 23
Figure: 24
Figure: 25
