HOEFLON C10 - Outrigger Pressure

ANNEXES
U.C10.00.00.EN Version 2.0 83
9.2 Outrigger pressure

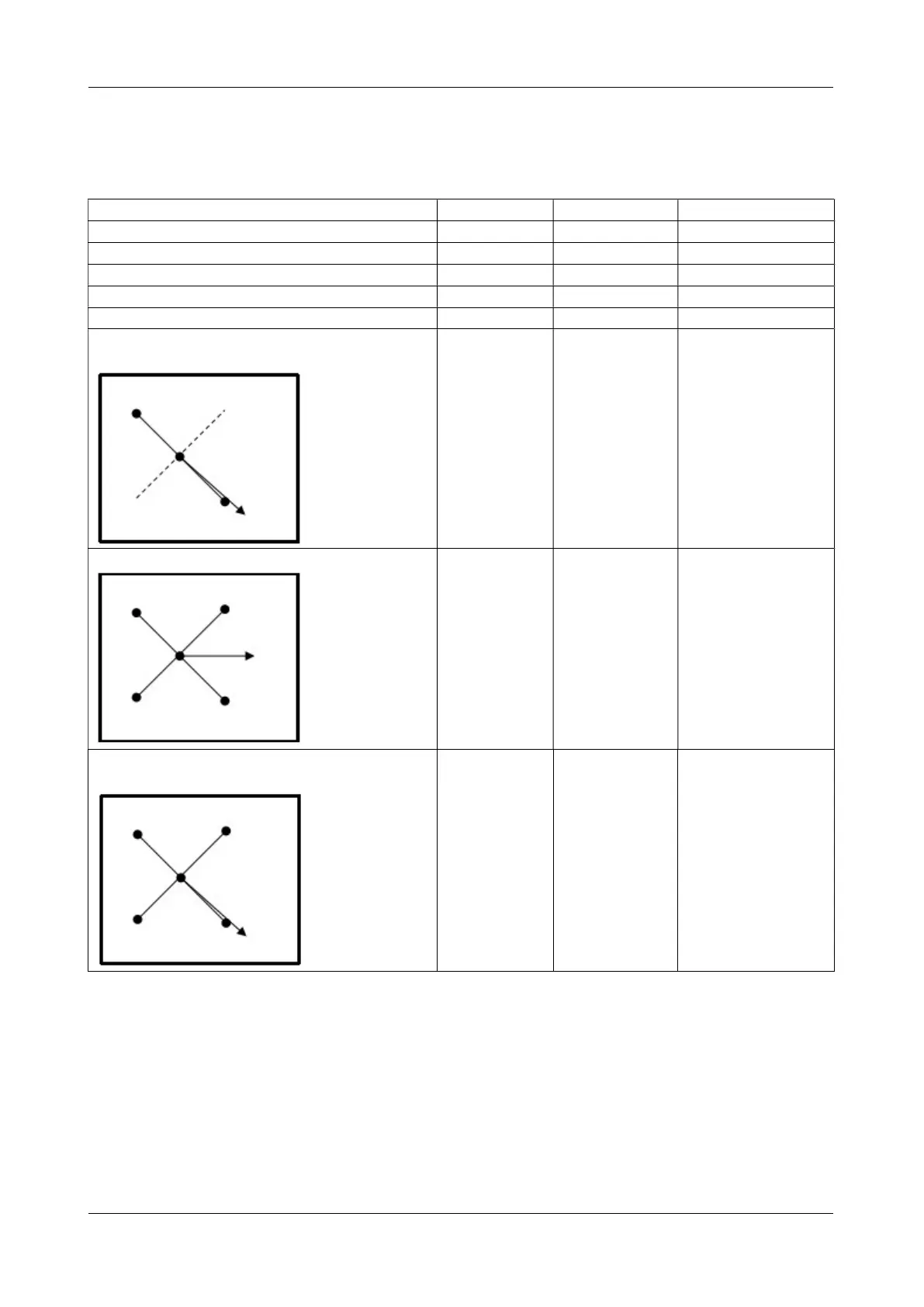

Maximum outrigger pressure C10
Outrigger radius
2300 mm
2300 mm
Without load
Outrigger angle
4x 45 degrees
4x 45 degrees
4x 45 degrees
Outrigger leg
Retracted
Extended
Retracted/extended
Ballast weight
Extended
Extended
Retracted
Maximum lifting capacity
4000 kg
4000 kg
0 kg
Unladen weight
4400 kg
4400 kg
4400
kg
Maximum outrigger pressure in most
unfavourable position
5200 kg
4850 kg
1200 kg
Minimum outrigger pressure
3450 kg
3150 kg
1975 kg
Maximum outrigger pressure in square
configuration
4600 kg
4250 kg
1250
