HOEFLON C10 - Order of Operations Without Options

WORKING WITH THE COMPACT CRANE
U.C10.00.00.EN Version 2.0 45
6.7.1 Order of operations without options
Check
 Check that the winch plate is within the indicator range. The winch plate must not be crooked. When under
tension, the winch plate must be between the indicator points (see figure 51).
 Check the cylinder behind the winch for leakage.
Visually inspect the winch cable for external defects, such as bends, broken
strands, rust formation and wear.
 Check whether the winch cable is wrapped neatly and tightly on the drum; if not,
unroll it and roll it up tightly (see figure 52).
Preparation
 Make sure the machine is supported on the outriggers, with the tracks just above the ground.
 Make sure the jib, jib adapter and/or other attachments have been removed from the boom and stored and
secured in place.
 Make sure the boom is horizontal and retracted.
Attachment of winch head
 Remove the winch head from the bracket on the boom. Fit the retainers again
after removal (see figure 53).
 Secure the boom adapter to the rear of the winch head with the locking pin.
Secure the pin (see figure 54).

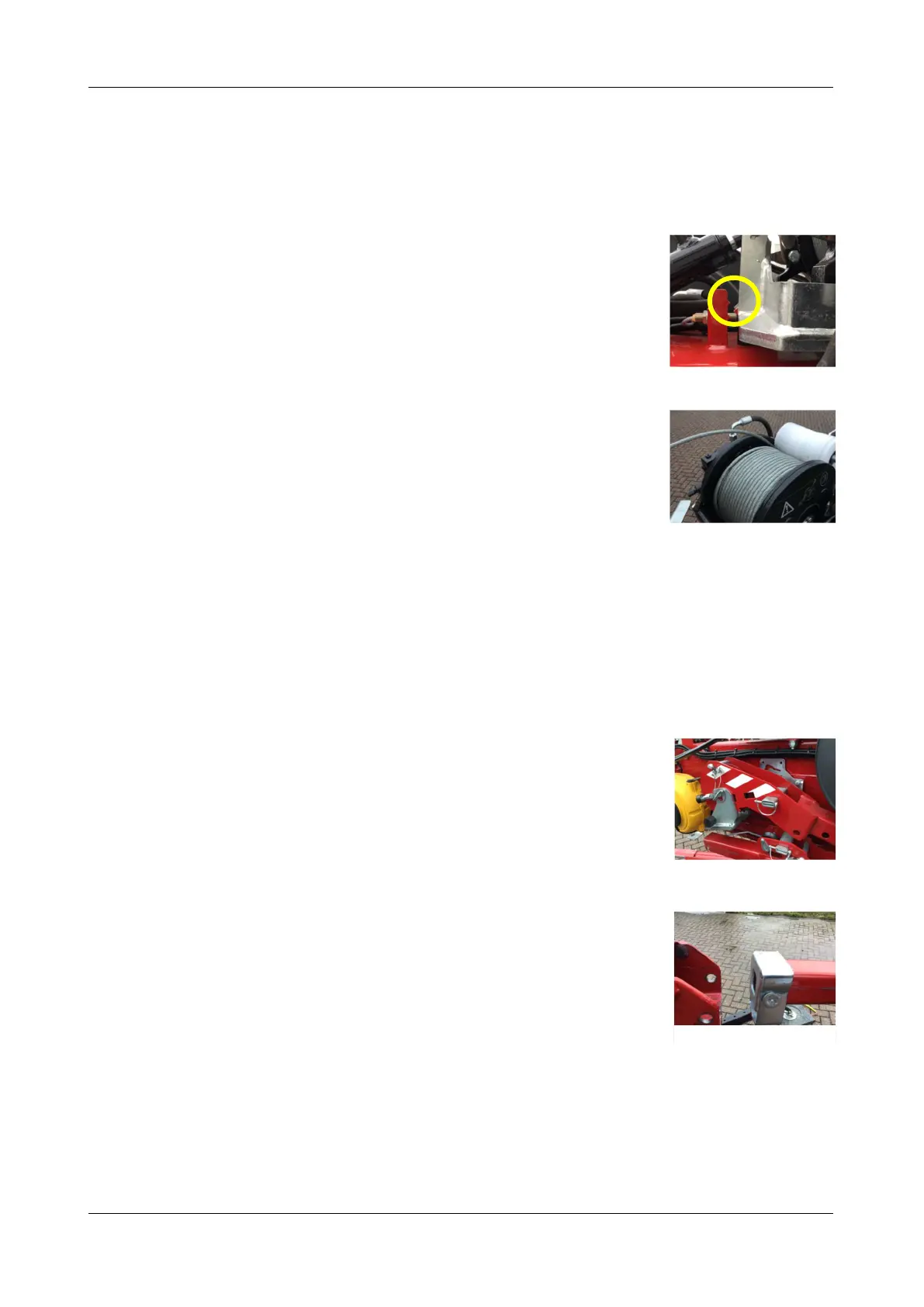

Figure: 51
Figure: 52
Figure: 53
Figure: 54
