50 User Manual Compact Crane C10

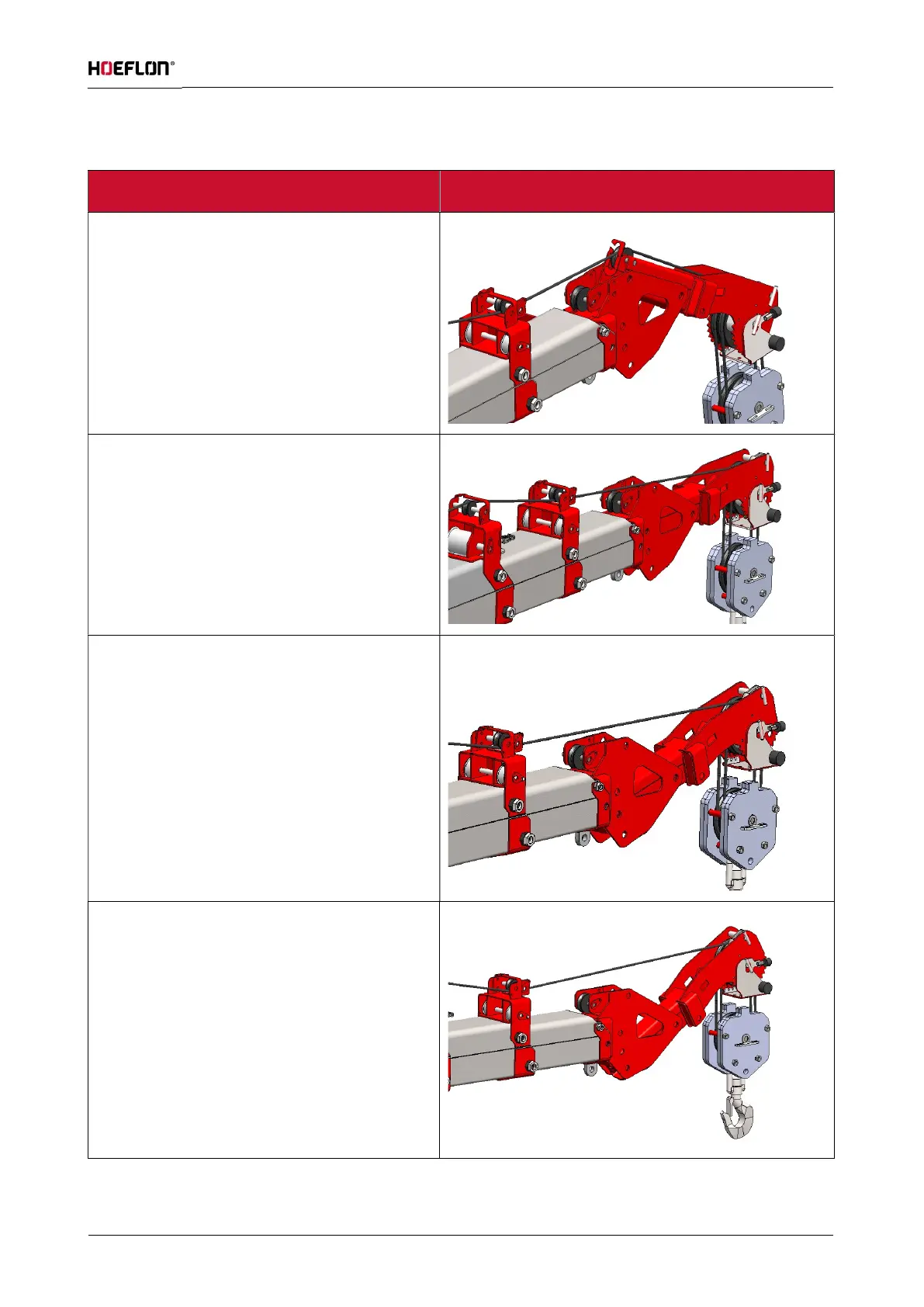

6.7.4 Positions of winch head in 30˚ section when used with main boom
Main boom
Winch head in top hole.
See the adjacent figure for the cable routing.
Cable over auxiliary pulley to rear of winch
head.
Winch head in 2
nd
hole.
See the adjacent figure for the cable routing.
Cable without auxiliary pulley to large cable
sheave in winch head.
Winch head in 3
rd
hole.
See the adjacent figure for the cable routing.
Cable without auxiliary pulley to large cable
sheave in winch head.
Winch head in bottom hole.
See the adjacent figure for the cable routing.
Cable without auxiliary pulley to large cable
sheave in winch head.
