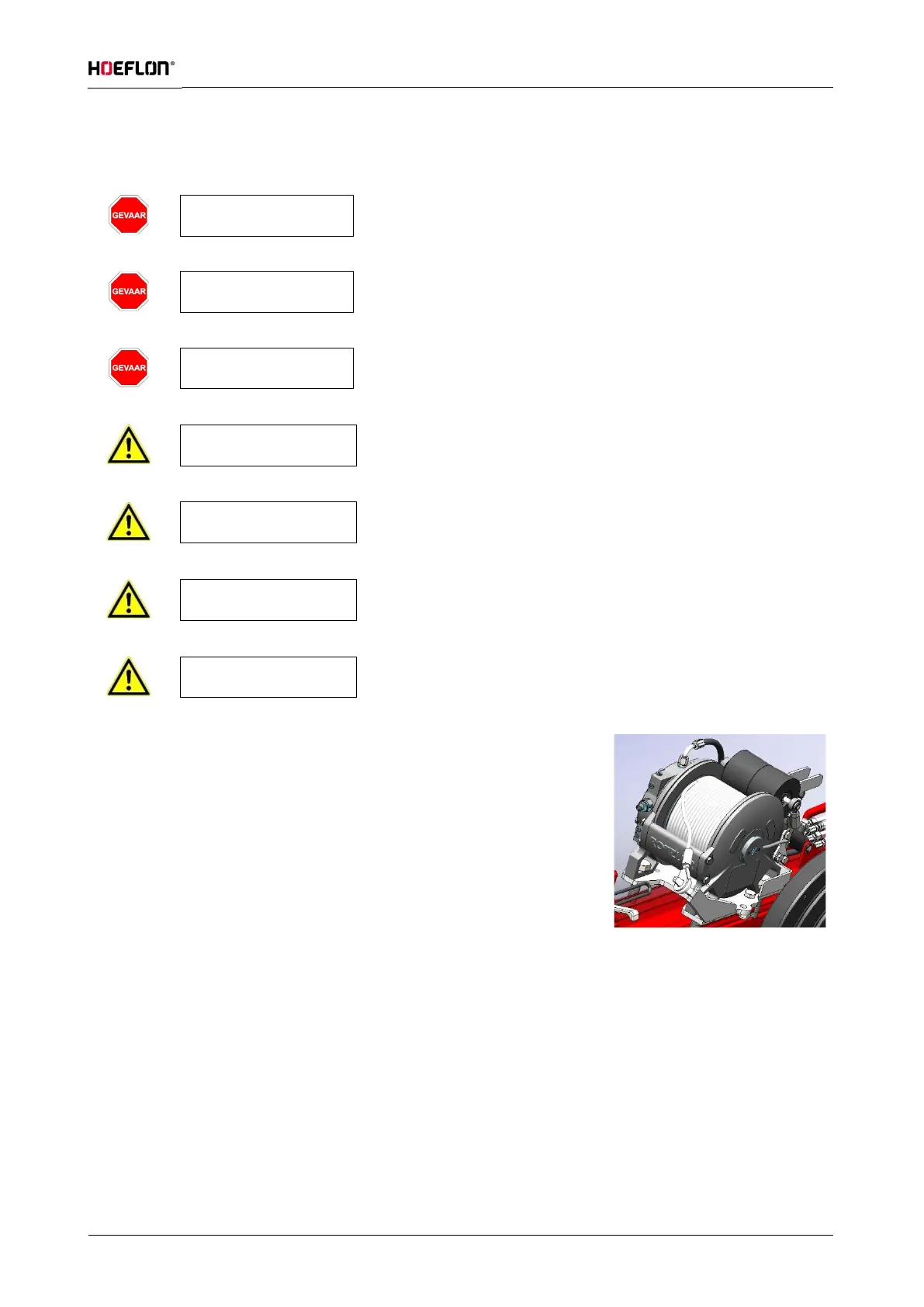

HOEFLON C10 - Function;Operation Winch

44 User Manual Compact Crane C10
6.7 Function/operation winch
DANGER!
Max. winch load is 1000 kg, 2000 kg with single reeving and 4000
kg with double reeving. When a reeved cable is used, it is
prohibited to lift if the winch cables are twisted.
DANGER!
Make sure the cable runs through the grooves in the cable
sheaves and the slot in the winch head stop plate!
DANGER!
Make sure the winch cable does not have any damage, cracks,
wear, twists or bends. If it does, replace the cable before using the
crane.
WARNING!
The winch may only be used for vertical lifting; if lifted at an angle
there is a risk of overload.
WARNING!
When a reeved cable is used, it is prohibited to lift if the winch
cables are twisted. Make sure the cable runs through the grooves
in the cable sheaves and the slot in the winch head stop plate!
WARNING!
As far as possible, leave the winch
weight on the cable so that it
will roll up tighter.
WARNING!
The winch will stop automatically when there are 3 rotations of
steel cable remaining on the winch drum.
 For the proper selection of attachments and rotation angles, refer to
the tables in sections 6.7.3 to 6.7.6. Any other use is prohibited.
 Reeve the winch cable if the mass of the load exceeds the capacity of
the winch. For single reeving (two cables) use one disc in the winch
weight, and for double reeving (four cables) use two discs in the winch
weight. For reeving, see section 6.7.7.
 The winch cable may get stuck under the ballast tube with the boom at
85 degrees; this risk can be eliminated by extending the ballast.
 Make sure both pins are attached and secured when using the winch
head in the 30° section.
 Push the winch weight backwards when lifting the winch weight off of
the engine shroud bracket. Be careful that the winch weight does not
get caught on the support.
 When removing the winch weight be careful that the elastic strap that holds the lifting hook has been
removed.
 When configuring the winch weight for reeving, be sure to remove the centring bush for the lifting hook
when switching from two discs to one disc, or to no discs. It should only be used when two sheaves are used
in the winch weight.
 Any time tension has been removed from the winch cable, check that the winch cable is still taught and
neatly wound around the winch drum before operating the winch.
 When using the winch, keep in mind the limits of the various machine configurations.
 Remember: the complete winch weight is 33 kg. It is not intended to be lifted or moved by hand.
 With the exception of the winch weight and ballast removal bracket, never pull on parts of the machine.
Figure: 50
