WORKING WITH THE COMPACT CRANE
U.C10.00.00.EN Version 2.0 43

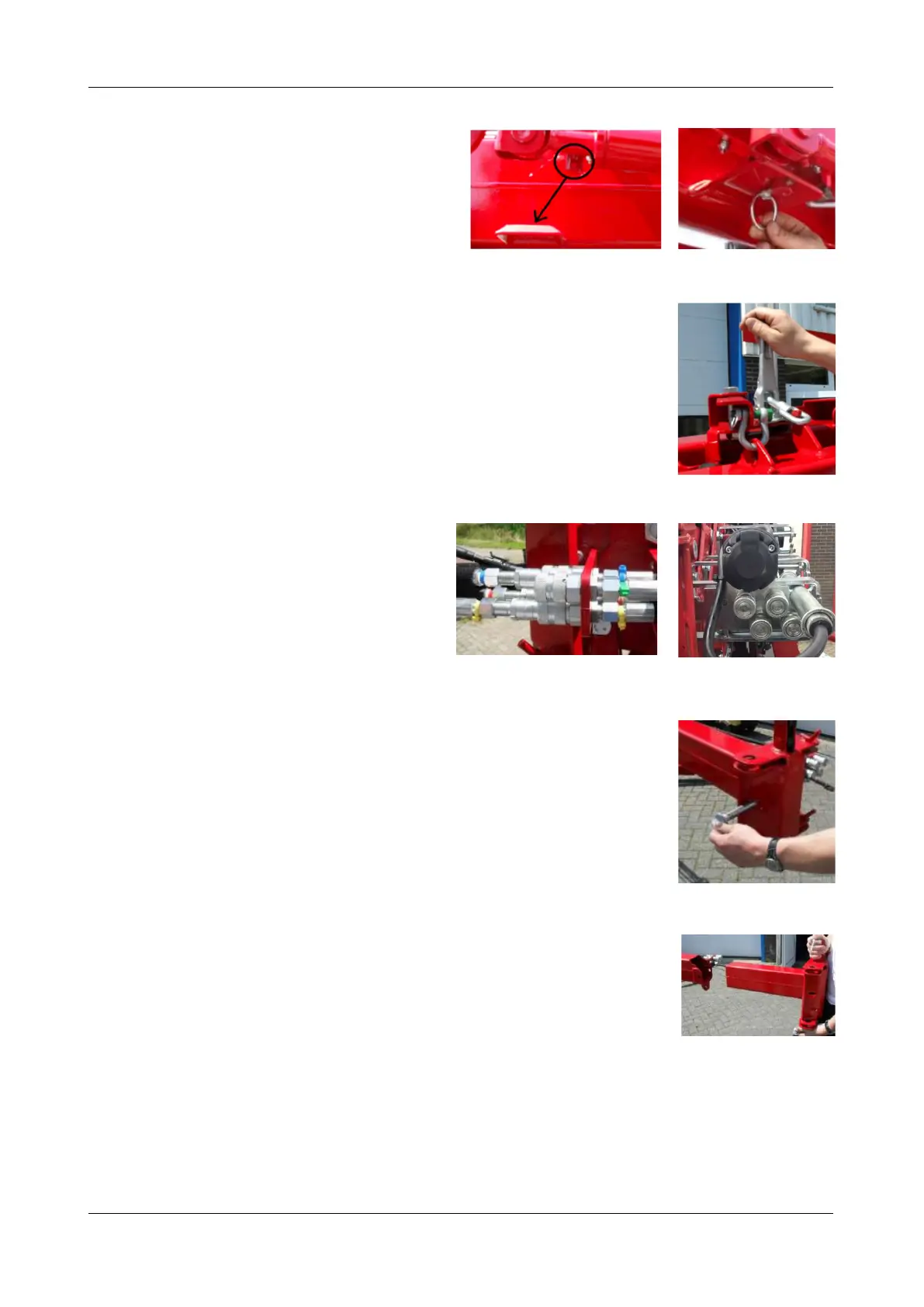

Use the shaft on the underside of the boom to
guide the jib into the appropriate section of the
main boom (figure 43) and secure it in position
(figure 44).
Secure the lever on the hook on the jib and lock it into place (figure 45)
Disconnect the hydraulic hoses (figure 46) and
the power plug (figure 47). Secure the loose
hoses to the jib.
The fixed section of the jib can be removed from the main boom, if necessary, by
removing the pin (figure 48) and manually pulling the section out of the main
boom (figure 49). It is also possible to work with the compact crane if the fixed
section of the jib is still in the boom.
To install the jib, perform the steps in reverse order.
Do not forget to secure the pins!
Figure: 43
Figure: 44
Figure: 45
Figure: 46
Figure: 47
Figure: 48
Figure: 49
