WORKING WITH THE COMPACT CRANE
U.C10.00.00.EN Version 2.0 49
 After removing the winch, connect a hook to a D-shackle if required (see figure
68). Insert pin and lock in position.
 For operation of crane and winch, see sections 6.2, 6.3, 6.5 and 6.7.
6.7.3 Order of operations winch head and manual jib
extension plus additional 30 degree adjustable section
Preparation
 Make sure the machine is supported on the outriggers, with the tracks just above the ground.
 Make sure the jib is correctly attached to the boom, as described for use of the jib.
 Make sure the attachments have been removed from the boom or jib and stored and secured in place.
 Make sure the boom and/or jib are horizontal and retracted,
Attaching 30˚ adjustable section
 Remove the 30° adjustable section from the boom; fit the retainer back in place. If it will be used in the
boom, mount the boom adapter.
 Mount the 30° adjustable section to the boom or jib and lock it with the locking pin. Secure the pin.
 Attach the manual jib extension to the 30° section with the two pins and secure them.
Attaching manual jib extension
 Remove the manual jib extension (figure 69) from the ballast weight.
 Place the manual jib extension in the jib tube and lock it with the pin.
 Or place the boom adapter so the manual jib extension can be placed
directly in the boom and lock it with the locking pin.

Attaching manual jib extension along with 30 degree adjustable section
 Remove the 30° adjustable section from the boom; fit the retainer back in place. If it will be used in the
boom, mount the boom adapter.
 Mount the 30° adjustable section to the boom or jib and lock it with the locking pin. Secure the pin.
 Attach the manual jib extension to the 30° section with the two pins and secure them.

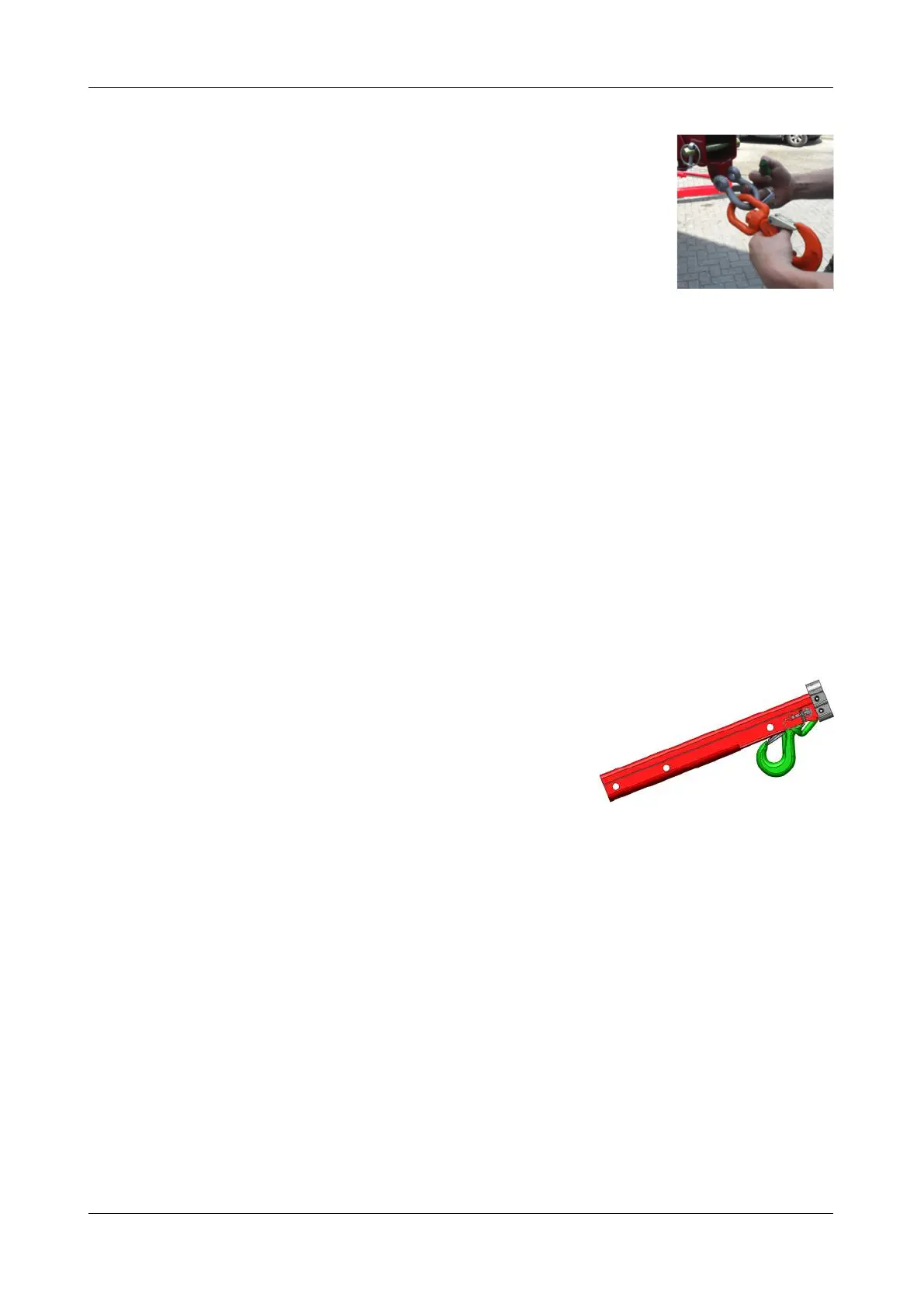

Figure: 68
Figure: 69
