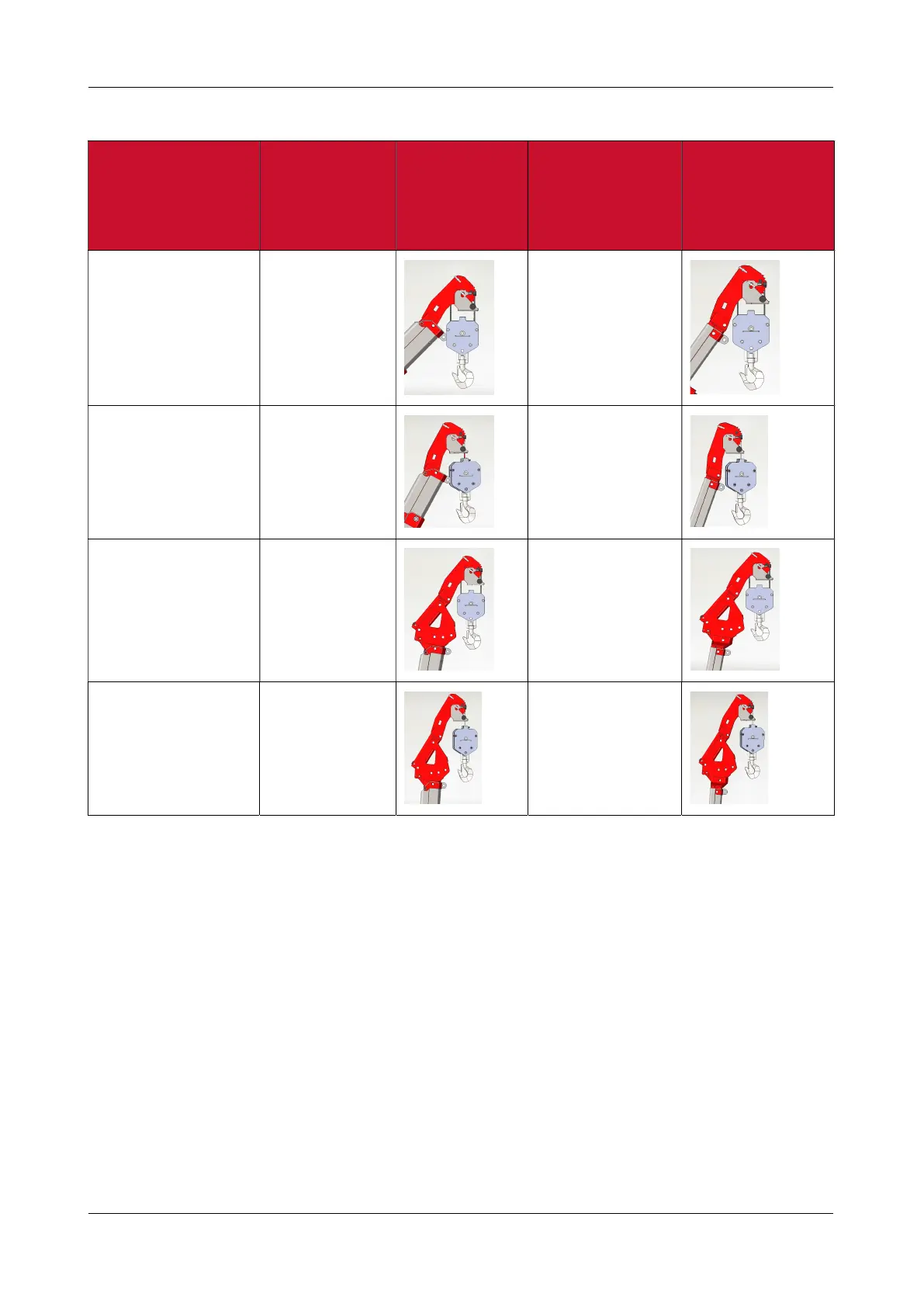

Maximum angles
Winch head positions Maximum
possible angle of
main boom from
horizontal
Illustrations
main boom
max. position
Maximum possible
angle of jib from
horizontal
Illustrations jib
max. position
Winch head with
lifting weight reeved
≤ 45° ≤ 55°
Winch head with
lifting weight
and single cable
≤ 60° ≤ 70°
Winch head with 30°
section in upper hole
with lifting weight
reeved
≤ 80° ≤ 80°
Winch head with 30°
section in upper hole
with lifting weight
and single cable
≤ 85° ≤ 85°
