Honda BF135A - Silencer Duct

6-2

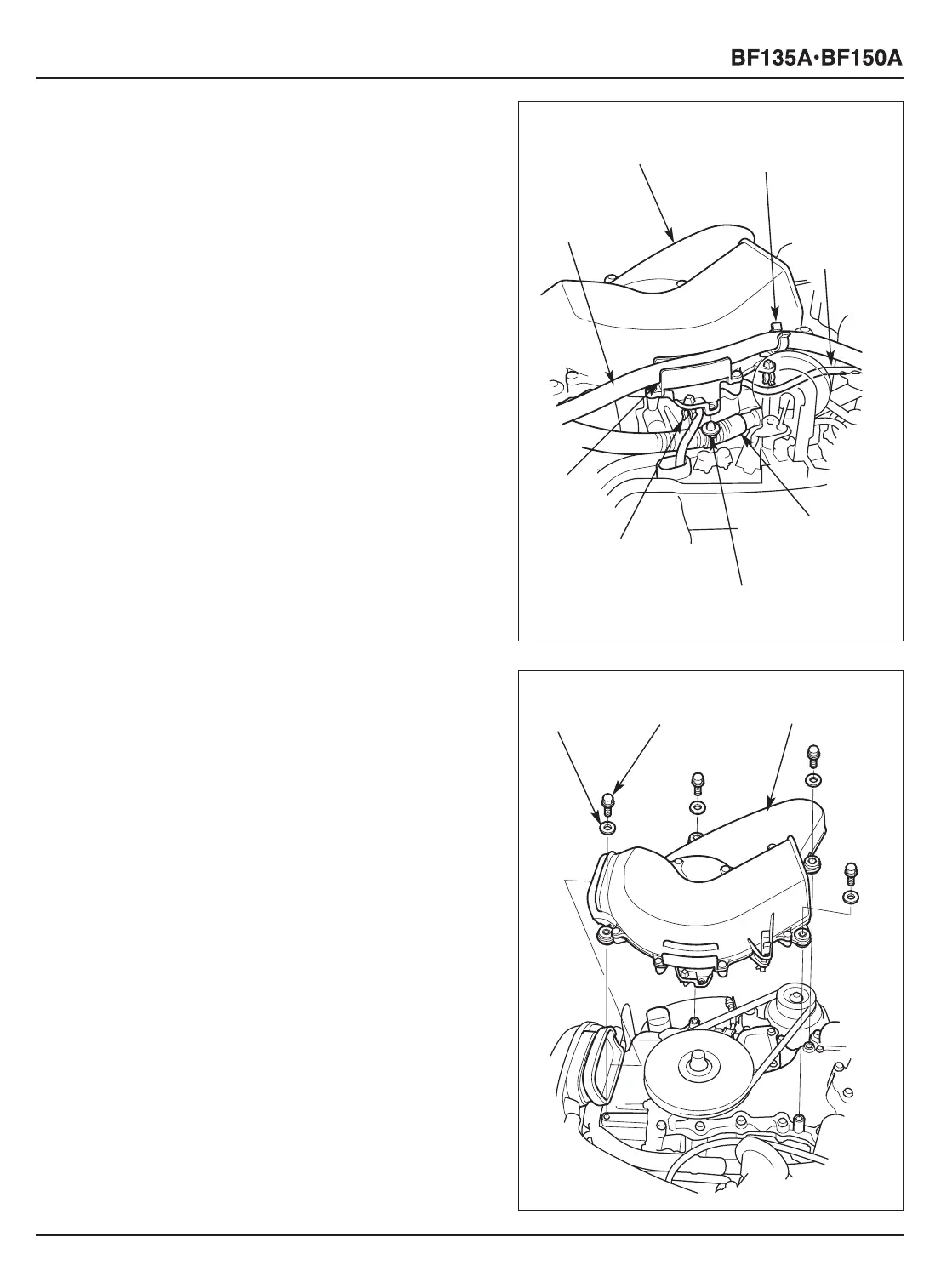

3) Remove the four 6 x 25 mm flange bolts and the four 6 mm
washers, then remove the silencer duct assembly.
6 x 25 (4)
[1]
6 mm
WASHER
(4)
[2] SILENCER DUCT
ASSEMBLY
1. SILENCER DUCT
a. REMOVAL
1) Remove the engine cover (P. 4-2).
Release the pressure regulator control tube from the two
3.5 mm tube clips of the silencer duct assembly.
Remove the harness band clip, that secures the main wire
harness, from the silencer duct assembly.
2) Release the breather tube from the 18.5 mm clamp and the
guide of the silencer duct assembly.
[2] SILENCER DUCT
ASSEMBLY
[7] 3.5 mm TUBE
CLIP (2)
[4]
PRESSURE
REGULATOR
CONTROL
TUBE
[3]
18.5 mm CLAMP
[8]
GUIDE
[1]
BREATHER
TUBE
[5] MAIN WIRE
HARNESS
[6] HARNESS
BAND CLIP
