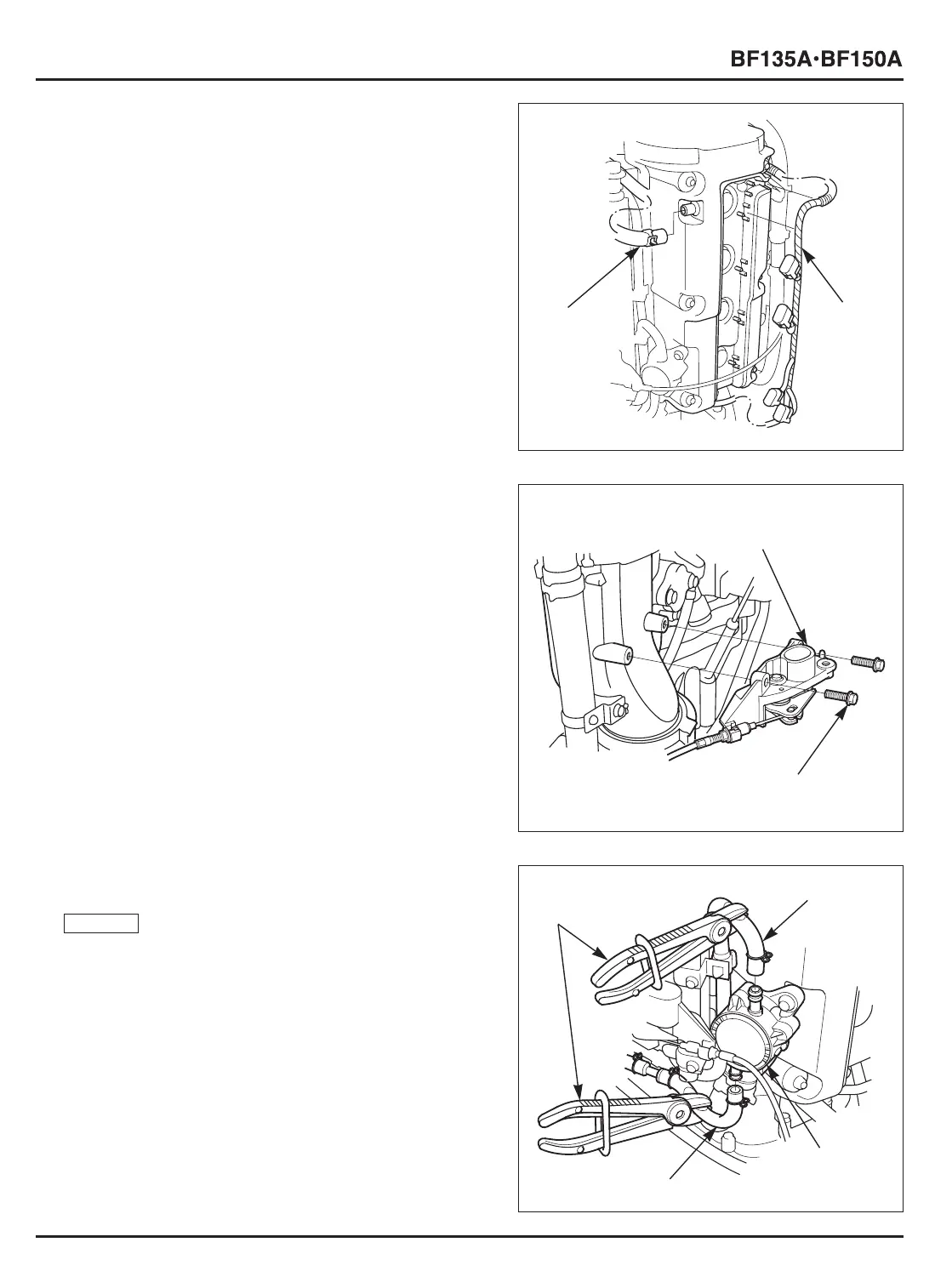

1. CYLINDER HEAD COVER REMOVAL
Remove the following parts.
– Engine cover (P. 4-2)
– L./R. engine under covers (P. 4-9)
– Ignition coil/spark plug (P. 3-6)
1) Disconnect the breather tube and the main wire harness
from the cylinder head cover.
2) Remove the two 6 x 22 mm flange bolts, then remove the
R. side cover bracket assembly from the engine assembly.
3) Disconnect the fuel tube B and the fuel tube D from the fuel
pump (low pressure side).
Before disconnecting the fuel tube B and the fuel tube D,
clamp the fuel tubes with the tube clips to prevent gasoline
leakage.
NOTICE
6 x 22 (2)
[1]
R. SIDE COVER
BRACKET ASSEMBLY
[1]
BREATHER
TUBE
[2]
MAIN WIRE
HARNESS
[3] FUEL PUMP
(Low pressure
side)
[2]
FUEL
TUBE B
[4]
FUEL TUBE D
[1] TUBE CLIPS
(Commercially
available)
