Honda BF135A - Remote Control Box (Optional Part)

2. REMOTE CONTROL BOX (OPTIONAL PART)

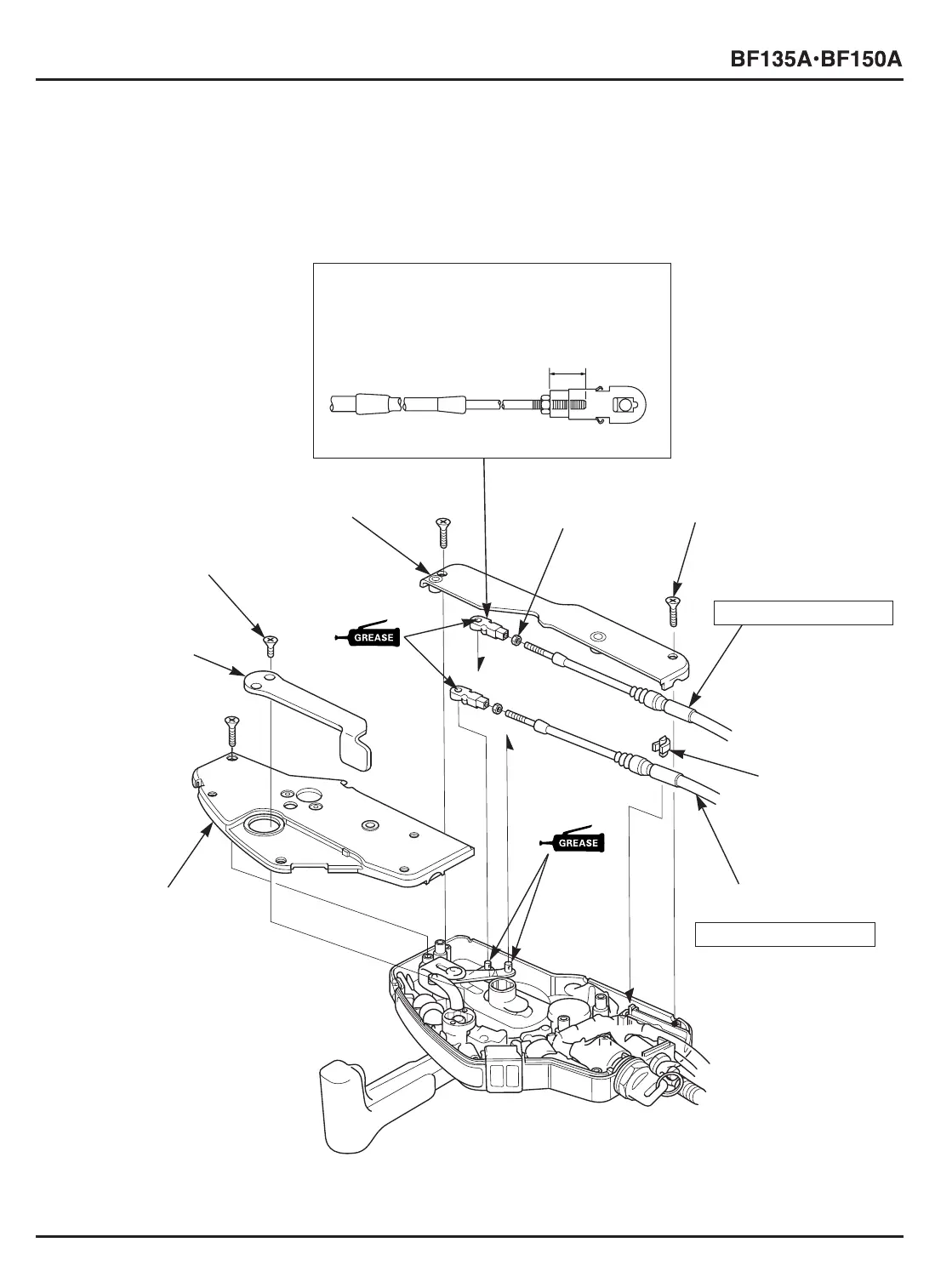

a. DISASSEMBLY/ASSEMBLY
• REMOTE CONTROL CABLE
16-2
[2]
10-32 UNF
LOCK NUT
[3]
5 x 25 mm SELF-
TAPPING SCREW (7)
[4]
REMOTE CONTOL CABLE
(Throttle side)
[5]
CABLE CLAMP
SPACER
[10]
REMOTE CONTROL
BOX COVER C
[7]
REMOTE CONTOL
BOX COVER B
[8]
FAST IDLE LEVER
[9]
5 x 12 mm OVAL
SCREW (2)
[6]
REMOTE CONTROL CABLE
(Shift side)
ADJUSTMENT: P. 3-24
[1]
SHIFT PIVOT (2)
INSTALLATION:
Screw in the shift pivot 8 mm or more onto the
threaded end of the cable.
[1]-1
8 mm or more
ADJUSTMENT: P. 3-26
