Honda BF135A - Removal

7-2
1. REMOVAL
Remove the following pars.
– Engine cover (P. 4-2).
– L./R. engine under covers (P. 4-9).
– Under cover front bracket/L./R. side cover brackets (P. 4-20).
–Vapor separator (P. 5-111).
– Gear case assembly (P. 14-3 and 42).

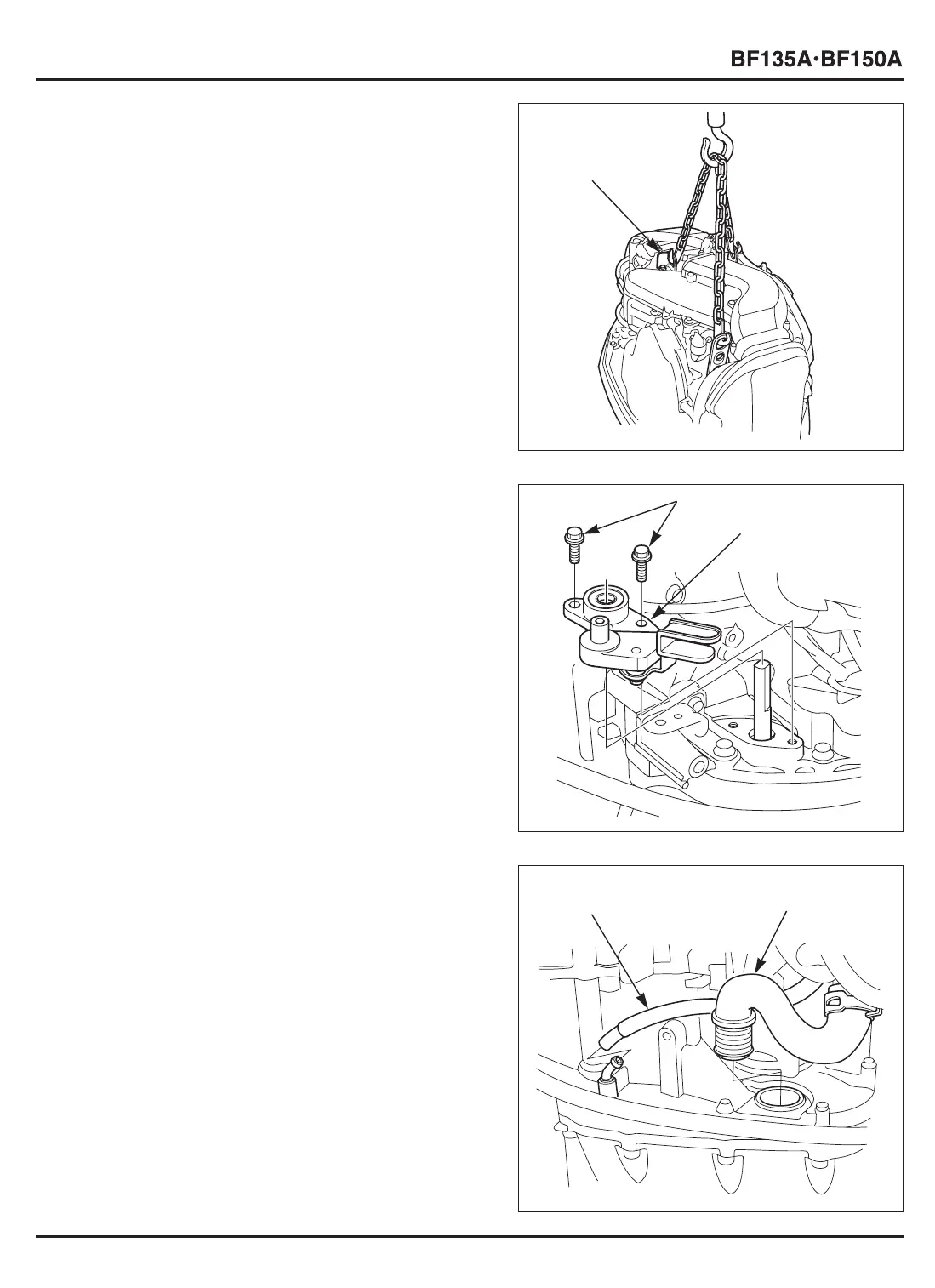

1) Hook the hoist hooks on the three engine hangers and
secure the engine not to fall down.
Remove the following parts.
– Extension case/lower rubber mount (P. 14-89).
–Oil case (P. 14-94).
2) Be sure that the engine is held vertically and remove the
following parts.
– Starter motor (P. 18-1).
– Starter cable (P. 18-15).
– Shift link bracket/neutral switch (P. 17-11).
3) Remove the two 6 x 20 mm flange bolts and remove the
seal holder assembly from the engine assembly.
4) Disconnect the air vent tube A and the oil tube from the
mounting case.
[1]
AIR VENT TUBE A
6 x 20
[1]
SEAL HOLDER
ASSEBLY
[1]
ENGINE HANGER (3)
[2]
OIL TUBE
