Honda BF135A - Control Panel (Optional Part)

16-7

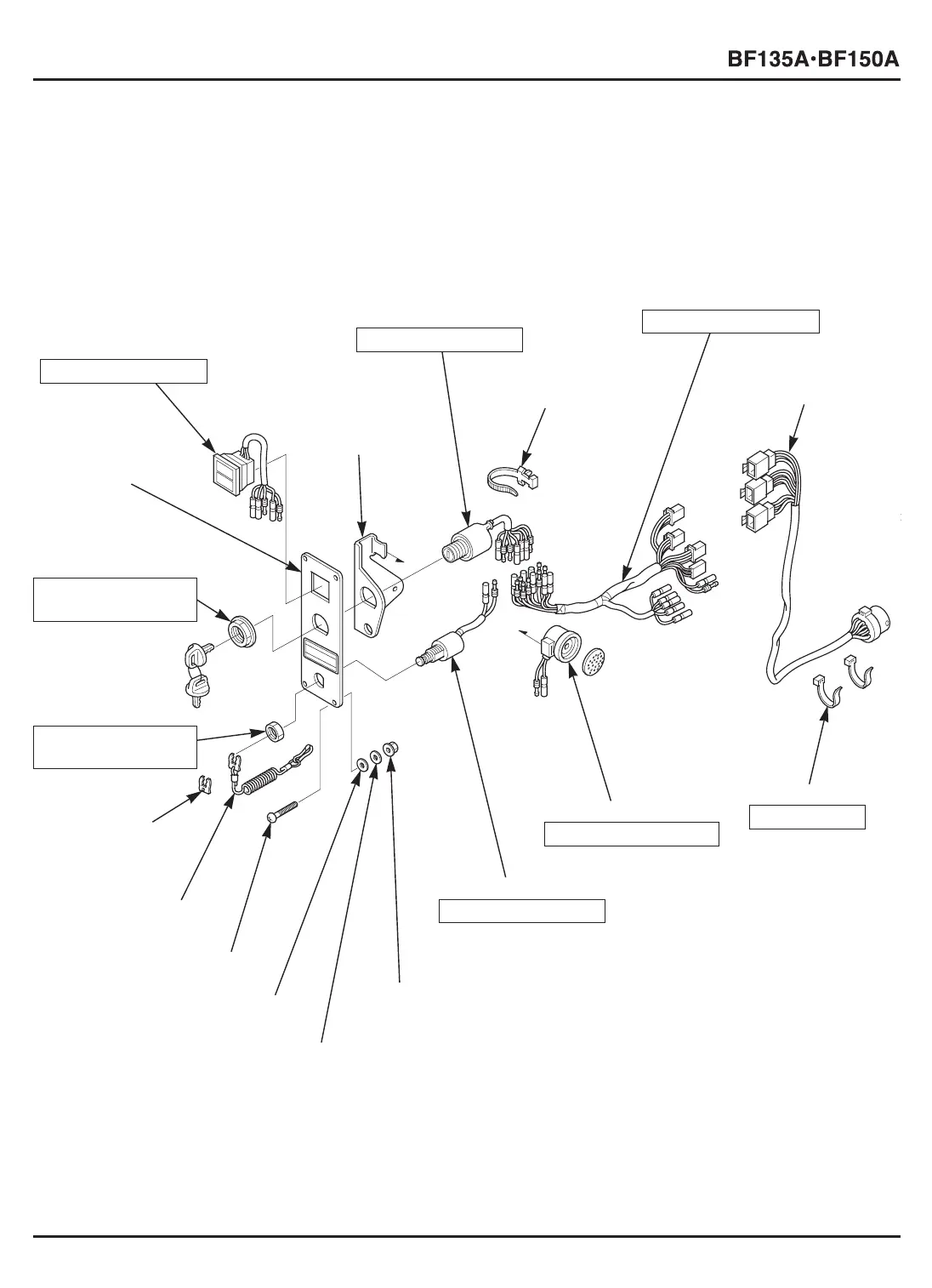

3. CONTROL PANEL (OPTIONAL PART)
a. DISASSEMBLY/ASSEMBLY
[15]
SPARE EMERGENCY
STOP SWITCH CLIP
[14]
EMERGENCY CORD
[18]
CONTROL PANEL
[17]
22 mm NUT
[13]
5 x 40 mm SCREW (4)
[12]
5 mm WASHER (4)
[11]
5 mm SPRING WASHER (4)
[2]
BUZZER
BRACKET
[6]
SWITCH PANEL
CABLE
[4]
WIRE HARNESS
BAND
[10]
5 mm FLANGE NUT (4)
[9]
EMERGENCY STOP SWITCH
INSPECTION: P. 16-9
[8]
WARNING BUZZER
INSPECTION: P. 16-10
[7]
TIE CABLE (2)
Do not reuse.
[5]
SWITCH PANEL HARNESS
CONNECTION: P. 16-8
[3]
IGNITION SWITCH
INSPECTION: P. 16-9
[1]
INDICATOR LIGHT
[MIL/ALTERNATOR
INDICATOR LIGHT]
INSPECTION: P. 16-9
[16]
16 mm HEX. NUT
1.5 N
.
m (0.15 kgf
.
m,
1.1 lbf
.
ft)
4.9 N
.
m (0.49 kgf
.
m,
3.5 lbf
.
ft)
