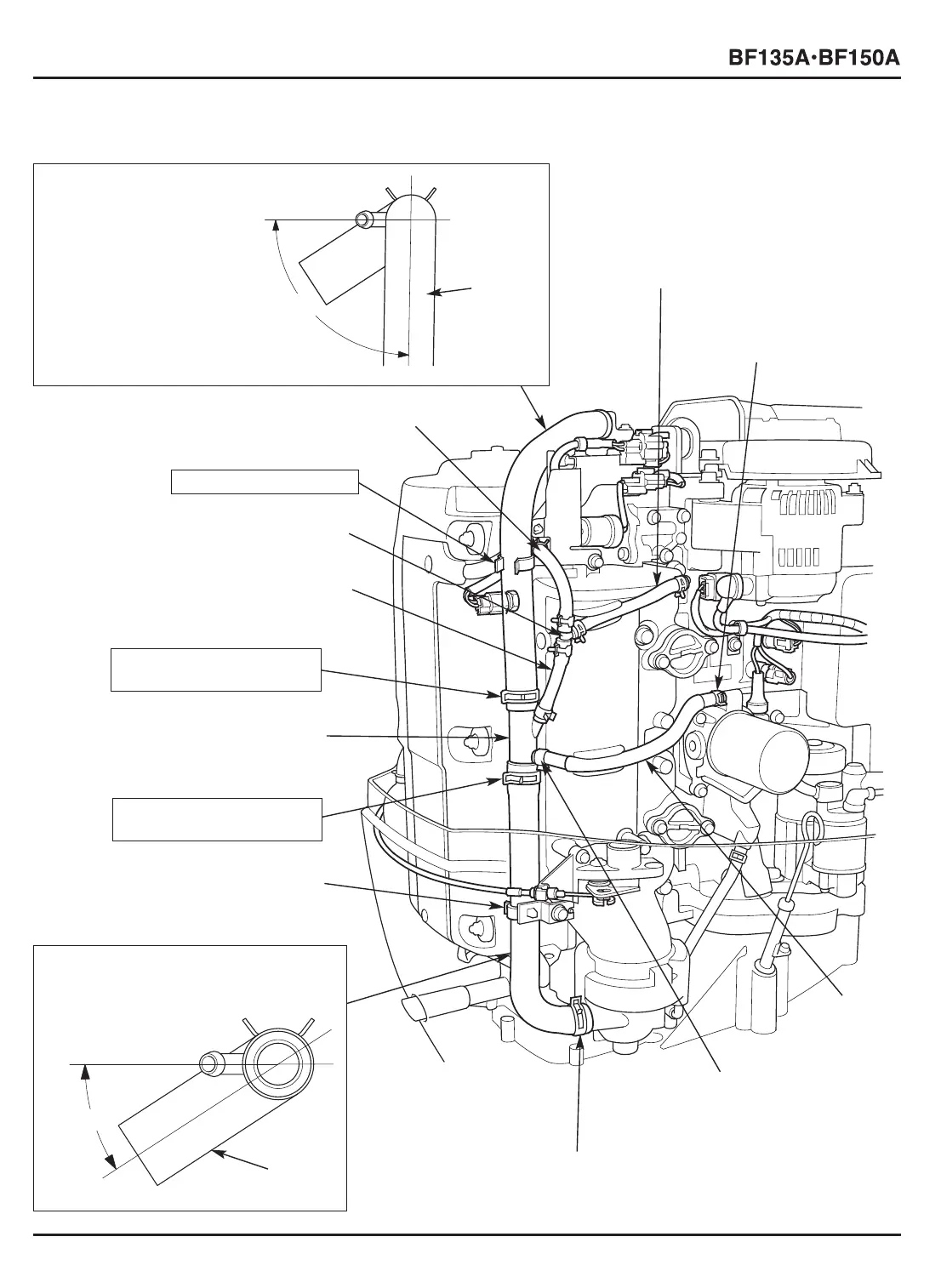

11. TUBE ROUTING
[2]
7 x 120 mm TUBE
[5] TUBE CLAMP D25.0
[3] TUBE CLAMP D10.5
[3]
TUBE CLAMP D10.5
[13] 7 x 90 mm TUBE
[11] FUEL TUBE JOINT
[4]
WATER
TUBE E
[10] 7 x 75 mm TUBE
[9] 4-WAY JOINT
[1] WATER RELIEF TUBE A
• Install at approximately
right angles to the
horizontal line.
• After installation, check
the tube for twist, bend,
etc.
[6] WATER RELIEF TUBE B
• Install at 33° from the horizontal line.
• After installation, check the tube for
twist, bend, etc.
[8] TUBE CLAMP D25.0
Install at 8 mm (0.3 in)
from the tube end.
[8] TUBE CLAMP D25.0
Install at 8 mm (0.3 in)
from the tube end.
[1]-2
WATER
RELIEF
TUBE A
[6]-2
WATER
RELIEF
TUBE B
[12] WATER TUBE CLAMP
INSTALLATION: P. 2-45
[7] WATER TUBE CLAMP B
[6]-1
Approx.
33°
[1]-1 Approx. 90°
