2-67
[1]

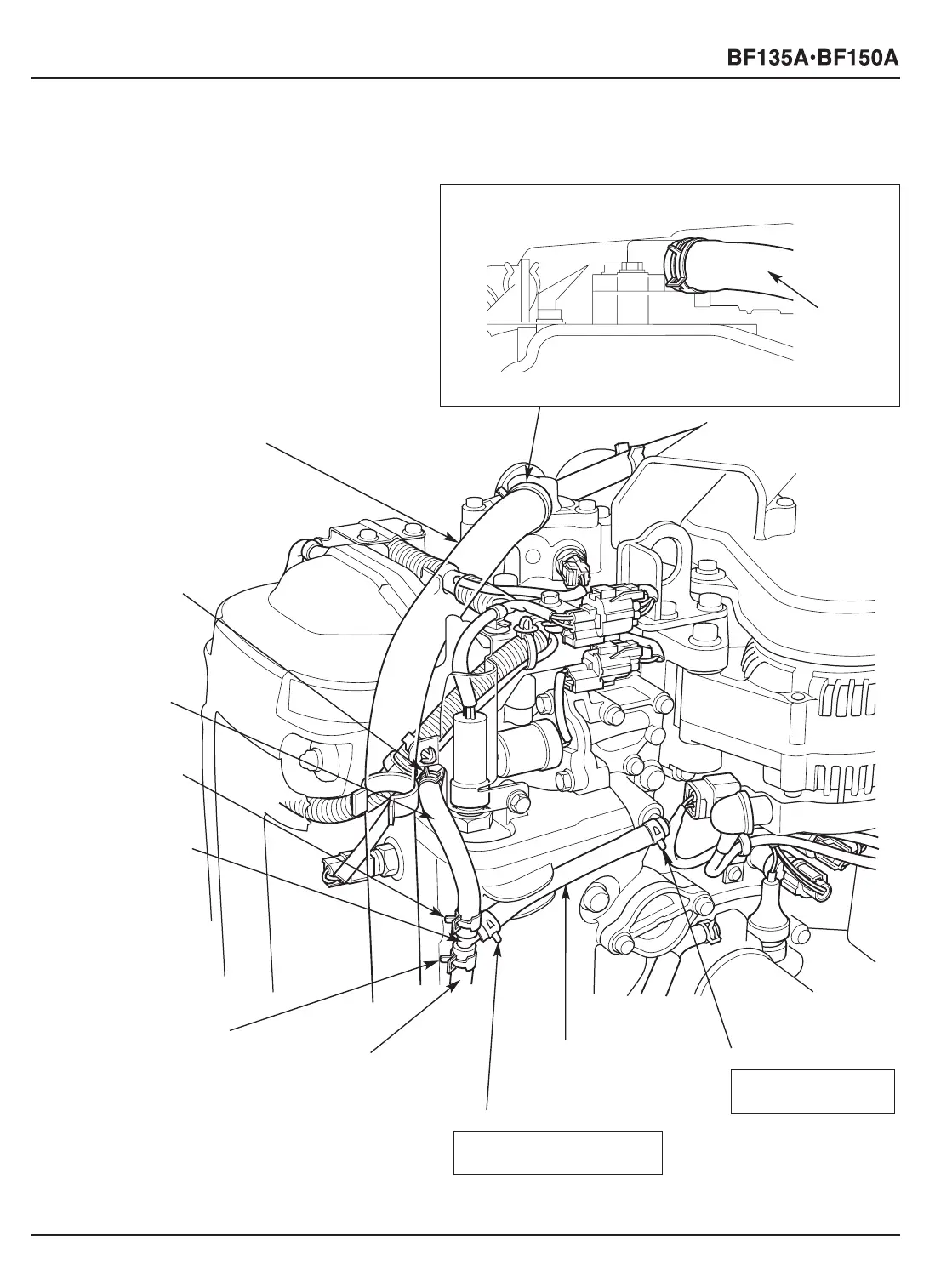

WATER RELIEF
TUBE A
[4] 7 x 120 mm TUBE
[8]
7 x 90 mm TUBE
[7]
FUEL TUBE JOINT
[5] 7 x 75 mm TUBE
[2] TUBE CLAMP D25.0
Install the tube clamp with the lugs facing in the direction
shown.
[3] TUBE CLAMP D10.5
Install with the lugs facing
down.
[3] TUBE CLAMP D10.5
Install with the lugs
facing down.
[6] TUBE CLAMP D10.5
[6]
TUBE CLAMP D10.5
[6]
TUBE CLAMP D10.5
[2]-1
WATER
RELIEF
TUBE A
[2]-2 <Cylinder head cover viewed from the front>
