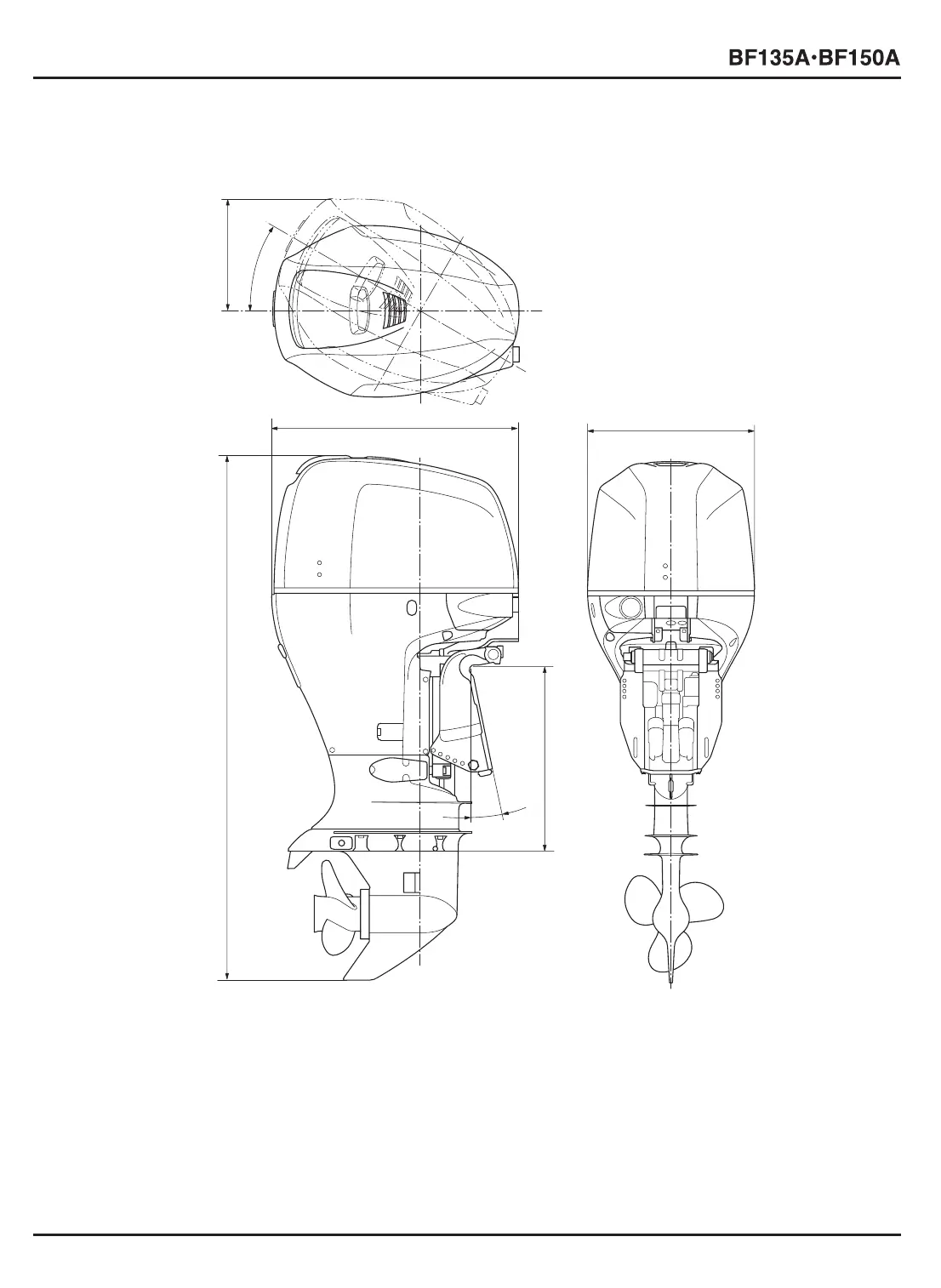

2. DIMENSIONAL DRAWINGS
[ ]: Extra-long shaft type
382 mm
(15.0 in)
30°
845 mm (33.3 in)
12°
580 mm
(22.8 in)
1,665 mm (65.6 in)
[1,790 mm (70.5 in)]
508 mm (20.0 in)
[635 mm (25.0 in)]
