13-2
1. DISASSEMBLY
a. LOWER BLOCK/CRANKSHAFT/CYLINDER
BLOCK
Remove the following parts.
– Engine cover (P. 4-2)
– L./R. engine under covers (P. 4-9)
–Cylinder head assembly (P. 10-19)
– Engine assembly (P. 7-2)
– Oil pump (P. 11-6)
–Flywheel (P. 11-12)
– Crankcase/balancer case assembly (P. 12-2)

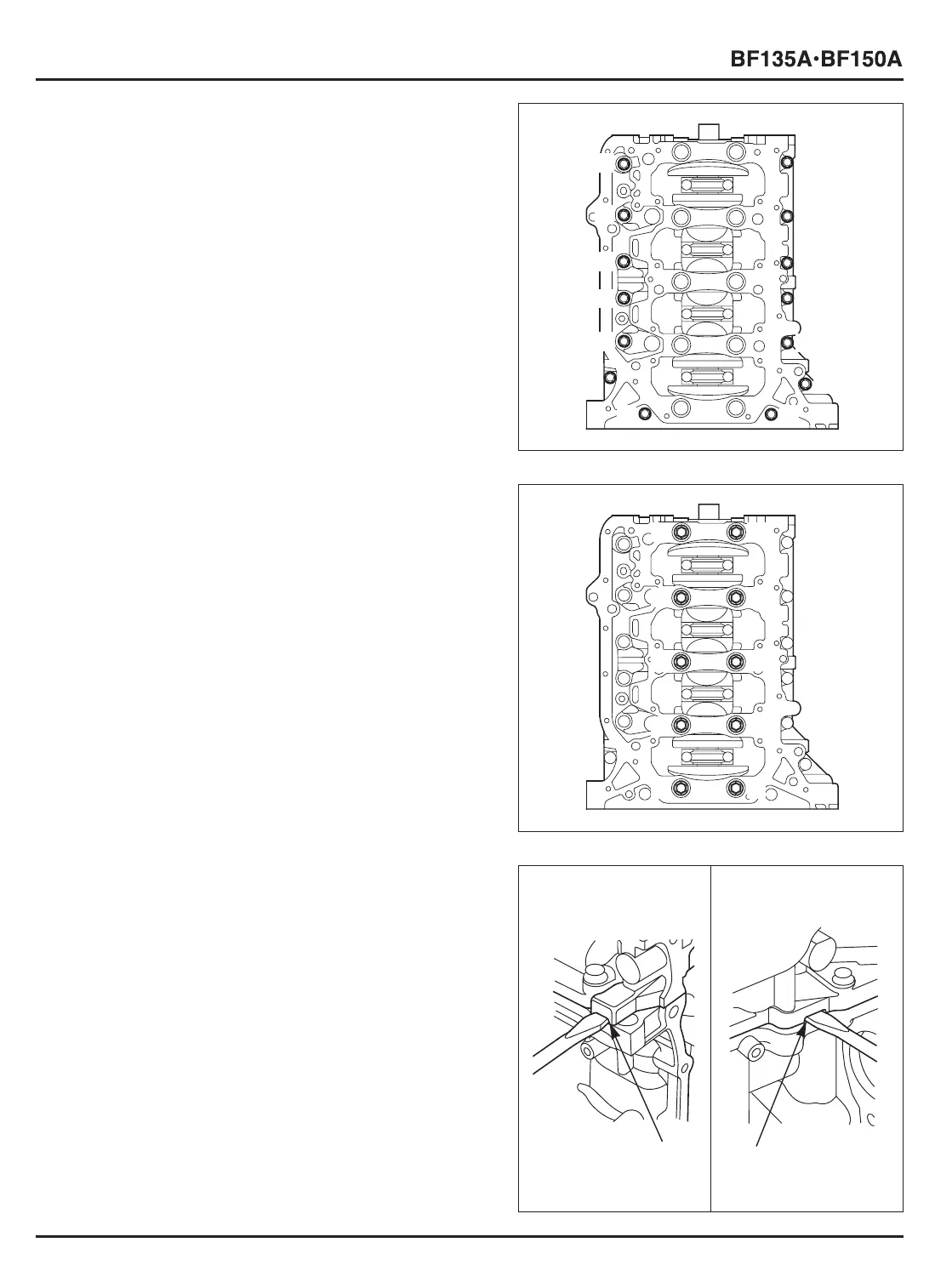

1) Loosen the bolts in the numbered sequence in two or three
steps.
2) Remove the four 8 x 50 mm flange bolts and ten 8 x 35 mm
flange bolts from the lower block.
3) Loosen the ten 11 x 95 mm washer bolts in the numbered
sequence in two or three steps.
4) Remove the ten 11 x 95 mm washer bolts from the lower
block.
5) Insert the screwdriver into the recesses of the lower block
and raise the lower block little by little.
[1]
RECESS
[1]
RECESS
②
⑥
⑩
⑭
⑪
③ ④
①
⑤
⑨
⑦
⑬
⑫
⑧
②
⑥
⑩
③
④
①
⑤
⑨
⑦
⑧
